553 RBX - Husqvarna Brush Cutter (2012-08) CARBURETOR Parts Diagram

Brush Cutter

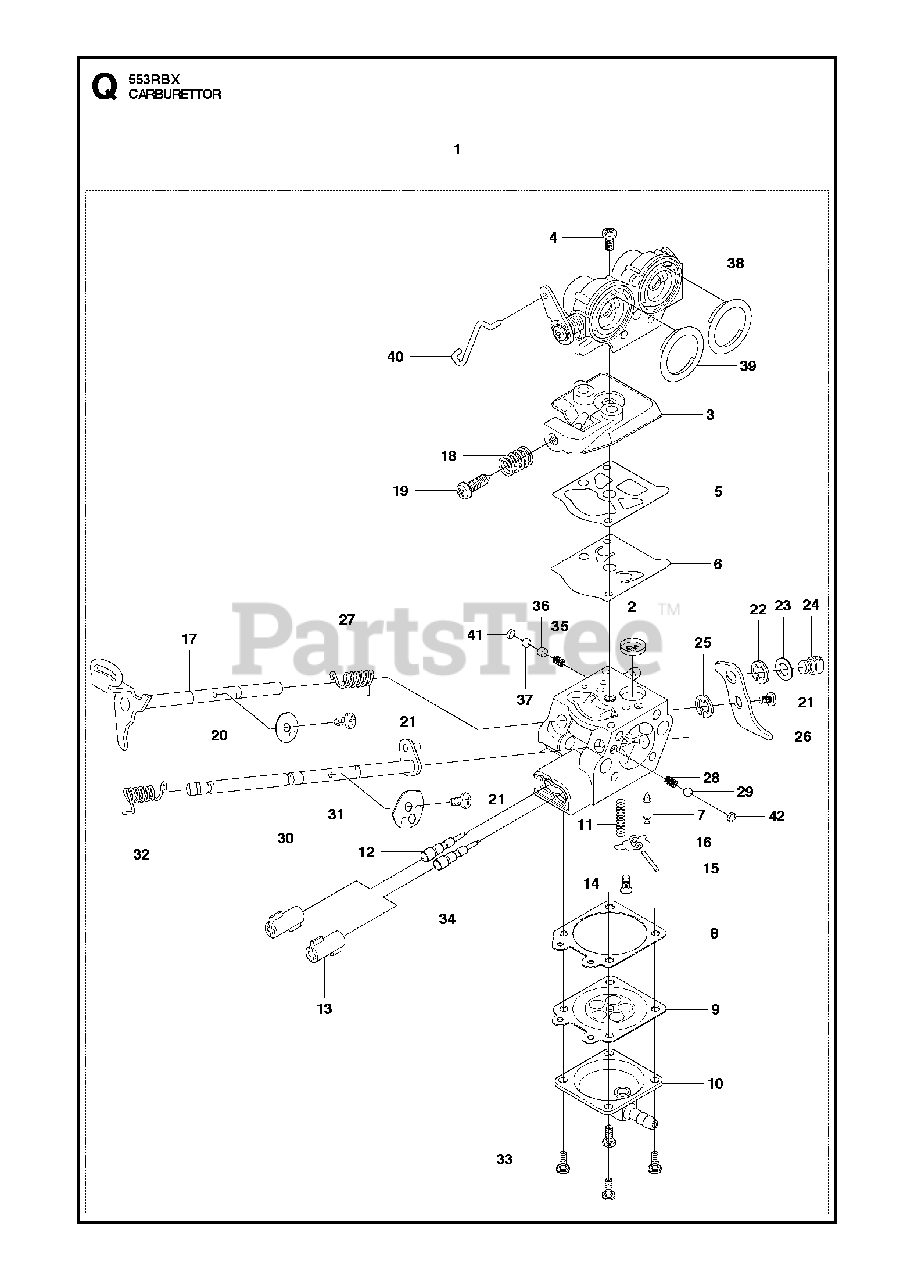

CARBURETOR Parts Diagram

  • Title

1

Husqvarna 574184501

$

$

Currently unavailable

2

Husqvarna 505055101

SCREEN
(Superseded to 520957001)

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 521639801

COVER

Note: . 1

$

$

Not available

4

Husqvarna 521640001

SCREW

Note: . 1

$

$

Not available

5

Husqvarna 505055401

GASKET
(Superseded to 520954801)

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 516221701

DIAPHRAGM,PUMP(RPLS-330481150)

Note: . 1

$

$

Not available

7

Husqvarna 505055601

RP VALVE INLET
(Superseded to 521085401)

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 505056301

GASKET METERING
(Superseded to 516972101)

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 505306801

DIAPHRAGM

Note: . 1

$18.99

$

Usually ships in 3-10 days

0

10

Husqvarna 521639701

COVER

Note: . 1

$

$

Not available

11

Husqvarna 516350701

SPRING
(Superseded to 513290701)

Note: . 1

$

$

Not available

12

Husqvarna 525554501

NEEDLE, IDLE
(Superseded to 511479901)

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

13

Husqvarna 521116901

CAP

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 505055901

Note: . 1

$

$

Not available

15

Husqvarna 505055801

Note: . 1

$

$

Not available

16

Husqvarna 505056001

LEVER
(Superseded to 520977201)

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 525554601

Note: . 1

$

$

Currently unavailable

18

Husqvarna 516279401

SPRING
(Superseded to 513225601)

Note: . 1

$

$

Not available

19

Husqvarna 516213801

SCREW, IDLE ADJ
(Superseded to 513192901)

Note: . 1

$

$

Not available

20

Husqvarna 525554701

RP_VALVE

Note: . 1

$

$

Not available

21

Husqvarna 505056701

Note: . 1

$

$

Not available

22

Husqvarna 506612501

RING

Note: . 1

$

$

Not available

23

Husqvarna 516524201

WASHER

Note: . 1

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 516523801

SWIVEL***
(Superseded to 513400801)

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

25

Husqvarna 505056501

E-RING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 521645501

LEVER, THROTTLE

Note: . 1

$

$

Not available

27

Husqvarna 505056801

SPRING RETURN
(Superseded to 516843901)

Note: . 1

$1.49

$

Usually ships in 3-10 days

0

28

Husqvarna 521066101

SPRING
(Superseded to 514243301)

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 521065501

BALL, FRICTION
(Superseded to 514242601)

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 521645101

SHAFT, CHOKE

Note: . 1

$

$

Not available

31

Husqvarna 525554901

ACCELATOR

Note: . 1

$

$

Not available

32

Husqvarna 521066501

SPRING, RETURN
(Superseded to 514243601)

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 505057801

Note: . 1

$

$

Not available

34

Husqvarna 516935801

NEEDLE

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

35

Husqvarna 505057901

SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 505058001

Note: . 1

$

$

Not available

37

Husqvarna 506123001

Note: . 1

$

$

Not available

38

Husqvarna 521640901

BODY ASSY

Note: . 1

$

$

Not available

39

Husqvarna 525419301

Note: . 1

$

$

Currently unavailable

40

Husqvarna 521641601

LINK ROD

Note: . 1

$

$

Not available

41

Husqvarna 516342901

PLUG

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

42

Husqvarna 525555001

Note: . 1

$

$

Currently unavailable
