55275 (888) - Toro Toromatic Lawn Tractor (SN: 002000001 - 002999999) (1972) POWER TAKE-OFF ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

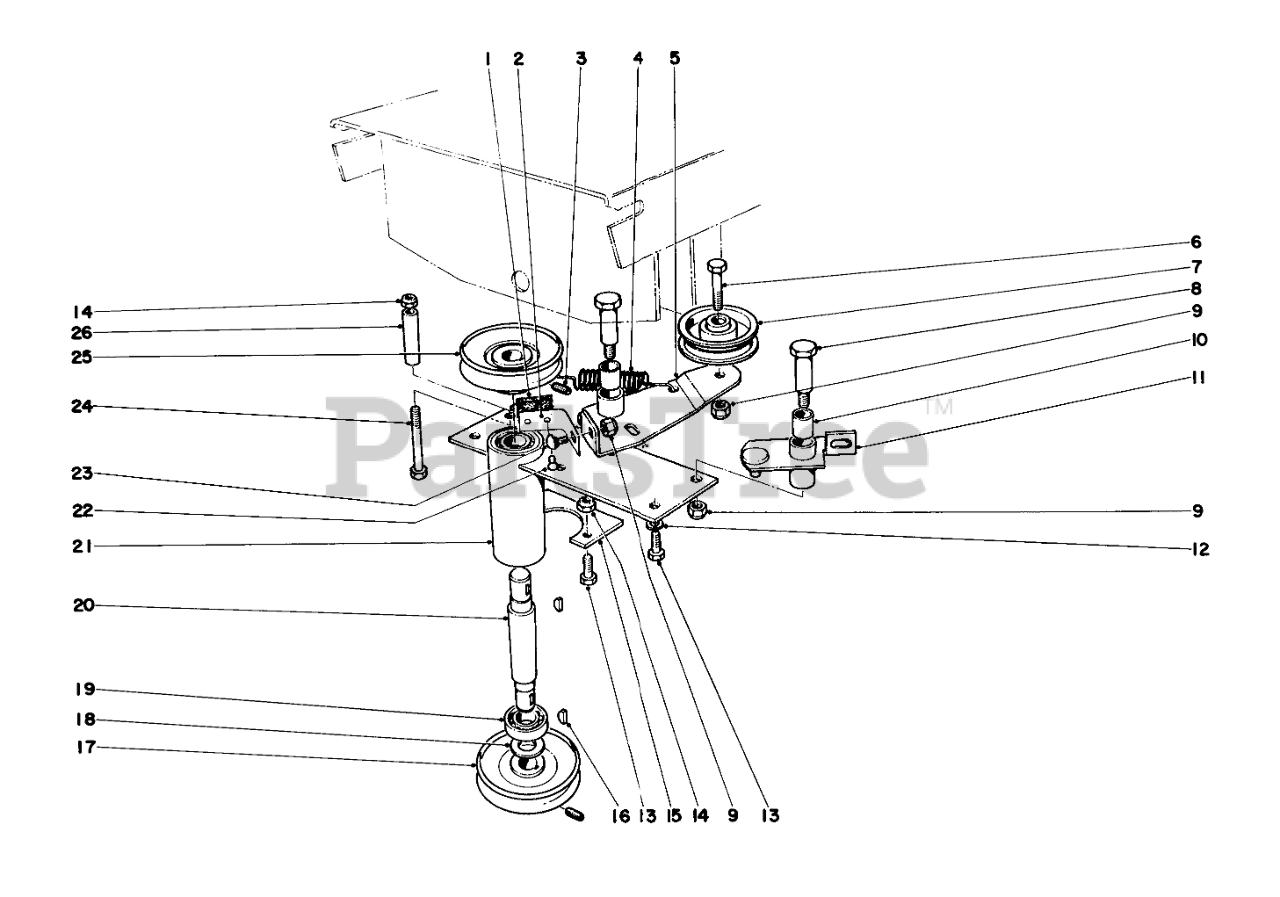

POWER TAKE-OFF ASSEMBLY Parts Diagram

  • Title

1

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

2

Toro 7-4093

Brake Spring

$

$

Currently unavailable

3

Toro 3246-1

SCREW-SET

$8.49

$

Usually ships in 3-6 days

0

4

Toro 7-3970

Spring

$

$

Not available

5

Toro 7-4190

Idler Plate

$

$

Currently unavailable

6

Toro 323-3

SCREW-HH
(Superseded to 323-34)

$6.49

$

In Stock, only 2 left!

0

7

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

8

Toro 12-7610

Axle Bolt

$

$

Currently unavailable

9

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

10

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

11

Toro 7-4094

Pivot Bracket (Incl. Ref. #10)

$

$

Currently unavailable

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

15

Toro 7-8230

Retainer P.T.0. Tube

$

$

Currently unavailable

16

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

17

Toro 7-4096

Pulley

$

$

Currently unavailable

18

Toro 7-0777

Bearing Washer

$

$

Not available

19

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

20

Toro 7-4095

Shaft

$

$

Currently unavailable

21

Toro 7-8210

P.T.0. Tube

$

$

Currently unavailable

22

Toro 3295-21

Rivet

$

$

Currently unavailable

23

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

24

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

25

Toro 7-3796

Pulley

$

$

Not available

26

Toro 7-4097

Spacer

$

$

Currently unavailable
