55275 (888) - Toro Toromatic Lawn Tractor (SN: 002000001 - 002999999) (1972) HOOD AND ENGINE ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

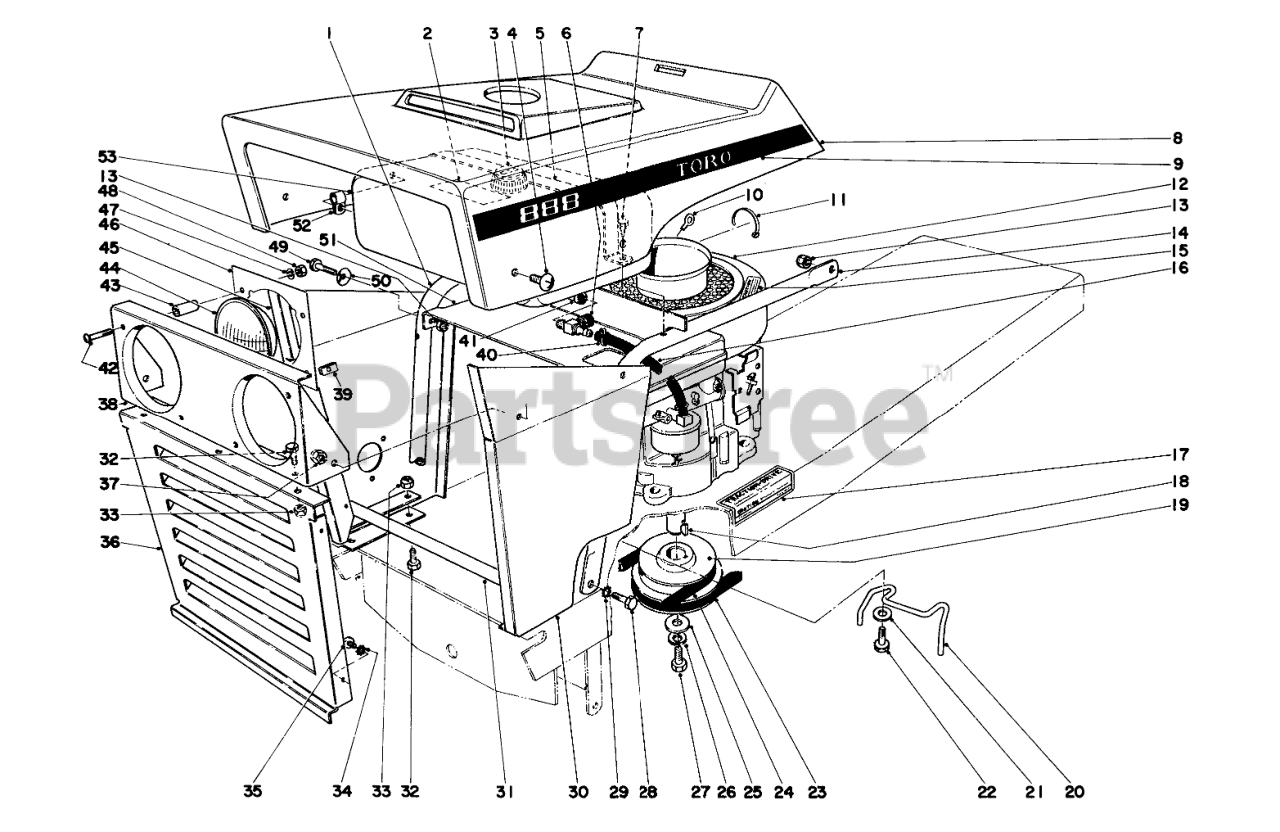

HOOD AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-7570

Support-R.H.

$

$

Currently unavailable

2

Toro 7-4600

Decal

$

$

Currently unavailable

3

Toro 12-0580

Gas Cap
(Superseded to 42-0682)

$

$

Not available

4

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

5

Toro 17-1150

Hold Down

$

$

Currently unavailable

6

Toro 7-7260

Shut Off Valve

$

$

Currently unavailable

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 7-7890

Hood

$

$

Currently unavailable

9

Toro 12-4220

Decal Hood L.H.

$

$

Currently unavailable

Toro 12-4230

Decal Hood R.H.

Note: Not illustrated

$

$

Currently unavailable

10

Toro 218-445

Wire

$

$

Currently unavailable

11

Toro 7-3123

Cable Tie

$

$

Not available

12

Toro 221-376

Engine

$

$

Currently unavailable

13

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

14

Toro 7-7560

Support Left

$

$

Currently unavailable

15

Toro 11-3450

Caution Decal

$

$

Currently unavailable

16

Toro 7-3983

Hose

$

$

Currently unavailable

17

Toro 12-4070

Decal-Traction Drive

$

$

Currently unavailable

18

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

19

Toro 7-7550

Pulley

$

$

Currently unavailable

20

Toro 7-8710

Belt Guide

$

$

Currently unavailable

21

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32140-15

1/4-20X5/8 THDG SEMS

$

$

Currently unavailable

23

Toro 7-9390

V-BELT

$

$

Not available

24

Toro 7-4231

V BELT PTO

$205.99

$

Usually ships in 3-6 days

0

25

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

26

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

27

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

30

Toro 7-5310

Skin Left Front

$

$

Currently unavailable

31

Toro 7-4106

Hinge

$

$

Currently unavailable

32

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

33

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

34

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

35

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

36

Toro 12-3850

Grille

$

$

Currently unavailable

37

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

38

Toro 7-4213

Headlamp Panel

$

$

Currently unavailable

39

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

40

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

41

Toro 7-8180

Elbow

$

$

Not available

42

Toro 32122-45

Screw

$

$

Currently unavailable

43

Toro 7-4254

Spacer

$

$

Currently unavailable

44

Toro 7-1646

HEAD LAMP

$

$

Currently unavailable

45

Toro 7-7880

Skin Right Front

$

$

Currently unavailable

46

Toro 7-4320

Headlight Holder

$

$

Currently unavailable

47

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

48

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

49

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

50

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

51

Toro 7-7920

Tray Gas Tank

$

$

Currently unavailable

52

Toro 2412-10

R-CLAMP

$3.99

$

Usually ships in 3-6 days

0

53

Toro 17-1130

GAS TANK

$

$

Not available
