55275 (888) - Toro Toromatic Lawn Tractor (SN: 002000001 - 002999999) (1972) DASH AND TRANSAXLE ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

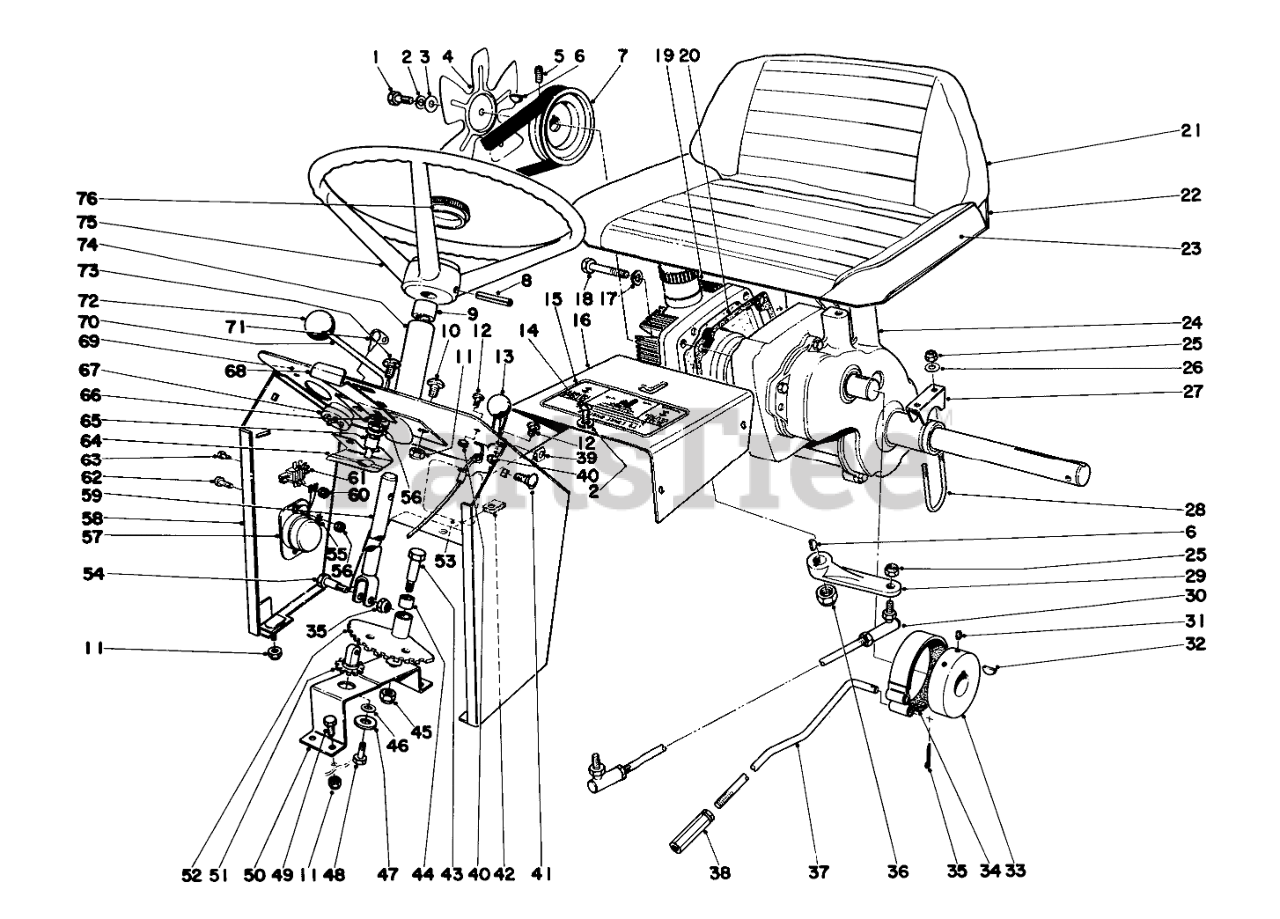

DASH AND TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 7-4226

Fan

$

$

Currently unavailable

5

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

6

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

7

Toro 7-4142

Pulley

$

$

Currently unavailable

8

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

9

Toro 256-167

BUSHING

$

$

Not available

10

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 3290-305

Screw

$

$

Currently unavailable

13

Toro 7-5370

Throttle Control

$

$

Not available

14

Toro 3258-2

SCREW

$

$

Not available

15

Toro 12-4080

Decal

$

$

Currently unavailable

16

Toro 7-7580

Tunnel

$

$

Currently unavailable

17

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

18

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 7-7940

Hydrostatic Transmission

$

$

Currently unavailable

20

Toro 7-4313

Gasket

$

$

Currently unavailable

21

Toro 351-49

Seat Back

$

$

Currently unavailable

22

Toro 351-51

Frame-Seat

$

$

Currently unavailable

23

Toro 351-50

Seat Cushion

$

$

Currently unavailable

24

Toro 7-4224

Transaxle

$

$

Currently unavailable

25

Toro 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

26

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 7-0203

Axle Bracket

$

$

Currently unavailable

28

Toro 7-0202

U-Bolt

$

$

Currently unavailable

29

Toro 7-4176

Lever Hydrostatic

$

$

Currently unavailable

30

Toro 7-4184

Control Rod Transmission

$

$

Currently unavailable

31

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

33

Toro 7-4276

Brake Drum

$

$

Currently unavailable

34

Toro 7-3876

Brake Band

$

$

Not available

35

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

36

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

37

Toro 7-4275

Brake Rod Rear

$

$

Currently unavailable

38

Toro 7-4193

Screw Brake Adjusting

$

$

Not available

39

Toro 12-5440

Strap Cable Tie

$

$

Currently unavailable

40

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

41

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

42

Toro 3290-192

SPEED NUT

$

$

Not available

43

Toro 7-5500

Shoulder Bolt

$

$

Currently unavailable

44

Toro 256-100

BUSHING

$

$

Not available

45

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

46

Toro 7-5990

Spacer

$

$

Not available

47

Toro 7-6640

Washer

$

$

Not available

48

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

49

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

50

Toro 7-4148

Bracket

$

$

Not available

51

Toro 7-6000

Pinion Steering

$

$

Not available

52

Toro 7-5920

Gear Steering (Incl. Ref. #44)

$

$

Not available

53

Toro 12-2900

Decal-Caution

$

$

Currently unavailable

54

Toro 7-6010

Screw Shoulder

$

$

Currently unavailable

55

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

56

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

57

Toro 12-7810

Cover-Center

$

$

Not available

58

Toro 12-7640

Dash

$

$

Currently unavailable

59

Toro 7-5960

Steering Shaft

$

$

Currently unavailable

60

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

61

Toro 12-6730

Terminal Block

$

$

Currently unavailable

62

Toro 3290-145

SCREW

$5.99

$

Usually ships in 3-6 days

0

63

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

64

Toro 7-4180

Spring Detent

$

$

Currently unavailable

65

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

66

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

67

Toro 7-5240

STARTER SWITCH

$

$

Not available

68

Toro 7-5080

Hood Latch

$

$

Currently unavailable

69

Toro 7-8390

Decal-Dash

$

$

Currently unavailable

70

Toro 7-4178

Handle Hydrostatic Control (Incl. Ref. #65)

$

$

Currently unavailable

71

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

72

Toro 233-24

Knob
(Superseded to 233-48)

$13.99

$

Usually ships in 3-6 days

0

73

Toro 3229-23

Carriage Bolt
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

74

Toro 7-4038

Steering Tube (Incl. Ref. #9)

$

$

Currently unavailable

75

Toro 238-5

Steering Wheel

$

$

Not available

76

Toro 7-4323

Steering Wheel Cap

$

$

Not available
