55256 (888) - Toro Toromatic Lawn Tractor (SN: 001000001 - 001999999) (1971) TRANSAXLE (PEERLESS) MODEL NO. 1302 ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

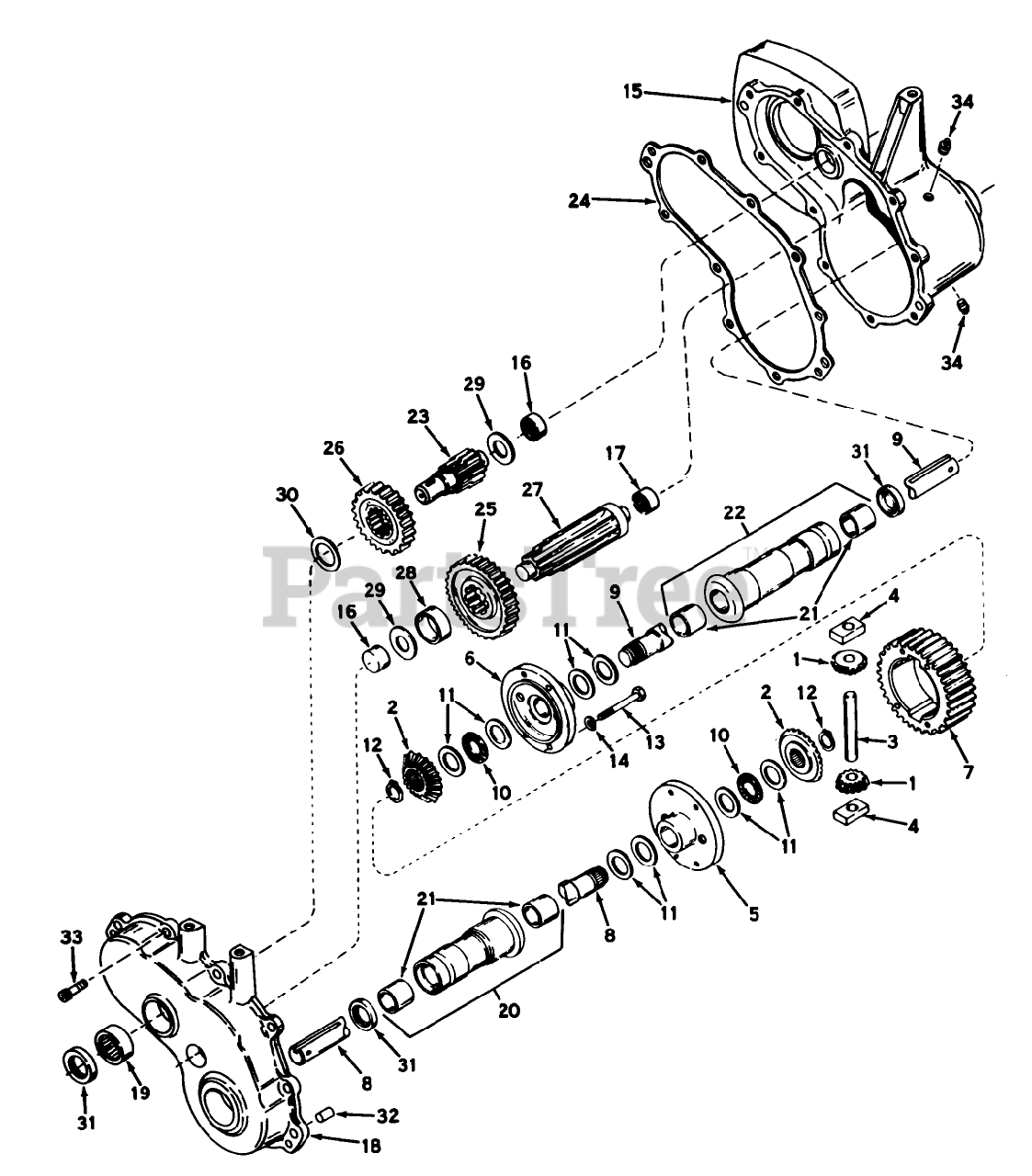

TRANSAXLE (PEERLESS) MODEL NO. 1302 ASSEMBLY Parts Diagram

  • Title
10

Toro 780039

Bearing-Thrust

$

$

Currently unavailable

11

Toro 780042

Washer

$

$

Currently unavailable

12

Toro 792018

Ring-Snap

$

$

Currently unavailable

13

Toro 792020

Screw-Hex Hd.

$

$

Currently unavailable

14

Toro 792006

Lockwasher

$

$

Currently unavailable

15

Toro 770052

Case Assembly (Incl. Nos. 16 & 17)

$

$

Currently unavailable

16

Toro 780013

Bearing

$

$

Currently unavailable

17

Toro 780088

Bearing-Needle

$

$

Currently unavailable

18

Toro 772063

Cover Assy. (Incl. Nos. 16 & 19)

$

$

Currently unavailable

19

Toro 780089

Bearing Needle

$

$

Currently unavailable

1

Toro 778014

Pinion-Bevel

$

$

Currently unavailable

20

Toro 782022A

Housing & Bushing Assy., L.H. (Incl. No. 21)

$

$

Currently unavailable

21

Toro 780054

Bushing

$

$

Currently unavailable

22

Toro 782023A

Housing & Bushing Assy., R.H. (Incl. No. 21)

$

$

Currently unavailable

23

Toro 776093

Shaft, Brake

$

$

Currently unavailable

24

Toro 788044

Gasket

$

$

Currently unavailable

25

Toro 778036

Gear-Output

$

$

Currently unavailable

26

Toro 778037

Gear-Spur

$

$

Currently unavailable

27

Toro 778041

Shaft, Output

$

$

Currently unavailable

28

Toro 786017

Spacer

$

$

Currently unavailable

29

Toro 780001

Washer

$

$

Currently unavailable

2

Toro 778039

Gear-Bevel

$

$

Currently unavailable

30

Toro 780090

Washer

$

$

Currently unavailable

31

Toro 788008

Seal-Oil

$

$

Currently unavailable

32

Toro 786026

Dowel Pin

$

$

Currently unavailable

33

Toro 792052

Screw, Hex hd. self tapping

$

$

Currently unavailable

34

$

$

Currently unavailable

3

Toro 786019

Pin-Drive

$

$

Currently unavailable

4

Toro 786027

Biock-Drive

$

$

Currently unavailable

5

Toro 774028

Carrier, Differential

$

$

Currently unavailable

6

Toro 774029

Carrier, Differential

$

$

Currently unavailable

7

Toro 778033

Gear, Ring

$

$

Currently unavailable

8

Toro 774159

Axle, L.H.

$

$

Currently unavailable

9

Toro 774160

Axle, R.H.

$

$

Currently unavailable
