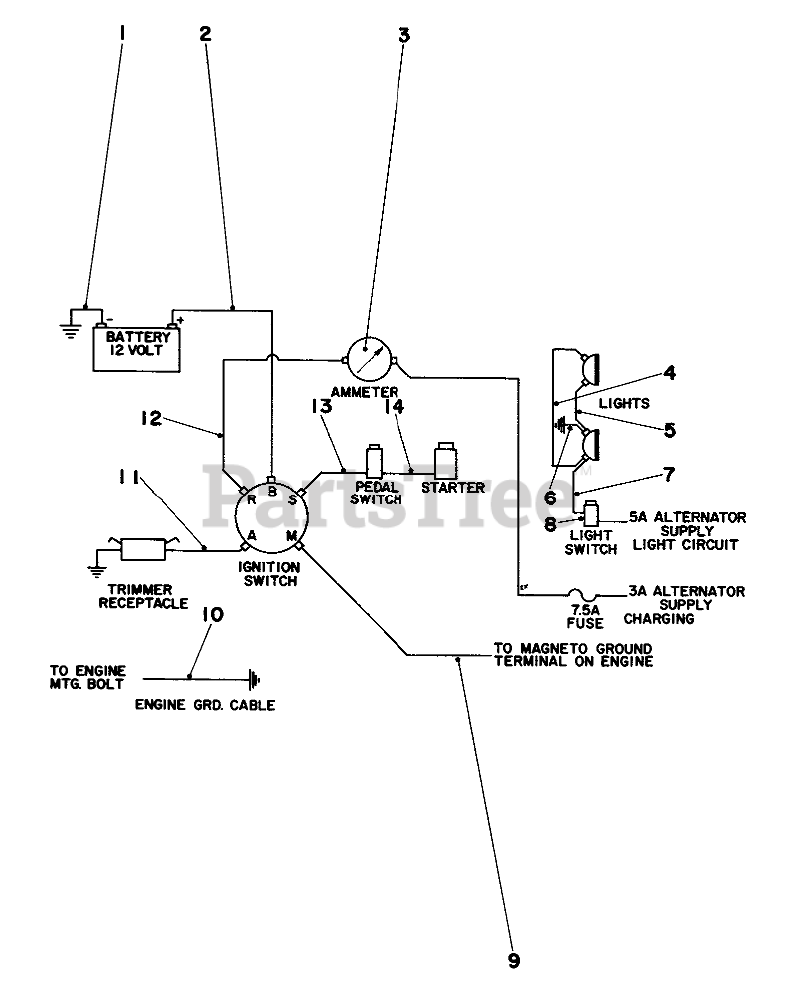

55256 (888) - Toro Toromatic Lawn Tractor (SN: 001000001 - 001999999) (1971) ELECTRICAL SCHEMATIC WIRING SCHEMATIC FOR ENGINE 221-376 (190707-0626) Parts Diagram

Toromatic Lawn Tractor

ELECTRICAL SCHEMATIC WIRING SCHEMATIC FOR ENGINE 221-376 (190707-0626) Parts Diagram

  • Title
1

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

2

Toro 7-8190

Wire Assy.

$

$

Currently unavailable

3

Toro 7-6130

Ammeter
(Superseded to 33-0990)

$

$

Not available

4

Toro 7-3543

Wire 960

$

$

Currently unavailable

5

Toro 7-3538

Wire 960

$

$

Currently unavailable

6

Toro 7-3541

Wire Assy.-Red

$

$

Currently unavailable

7

Toro 7-6190

Wire Assy.

$

$

Currently unavailable

8

Toro 7-1780

Light Switch

$

$

Currently unavailable

9

Toro 7-6220

Wire Switch to Battery

$

$

Currently unavailable

10

Toro 7-7630

ENG-GROUND WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

11

Toro 7-5230

Wire Assembly

$

$

Not available

12

Toro 7-6180

Wire Assy. Ammeter to Switch

$

$

Currently unavailable

13

Toro 7-6230

Wire Pedal Switch to Starter Switch

$

$

Currently unavailable

14

Toro 7-6160

Wire Assembly

$

$

Currently unavailable
