55256 (888) - Toro Toromatic Lawn Tractor (SN: 001000001 - 001999999) (1971) CHASSIS ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

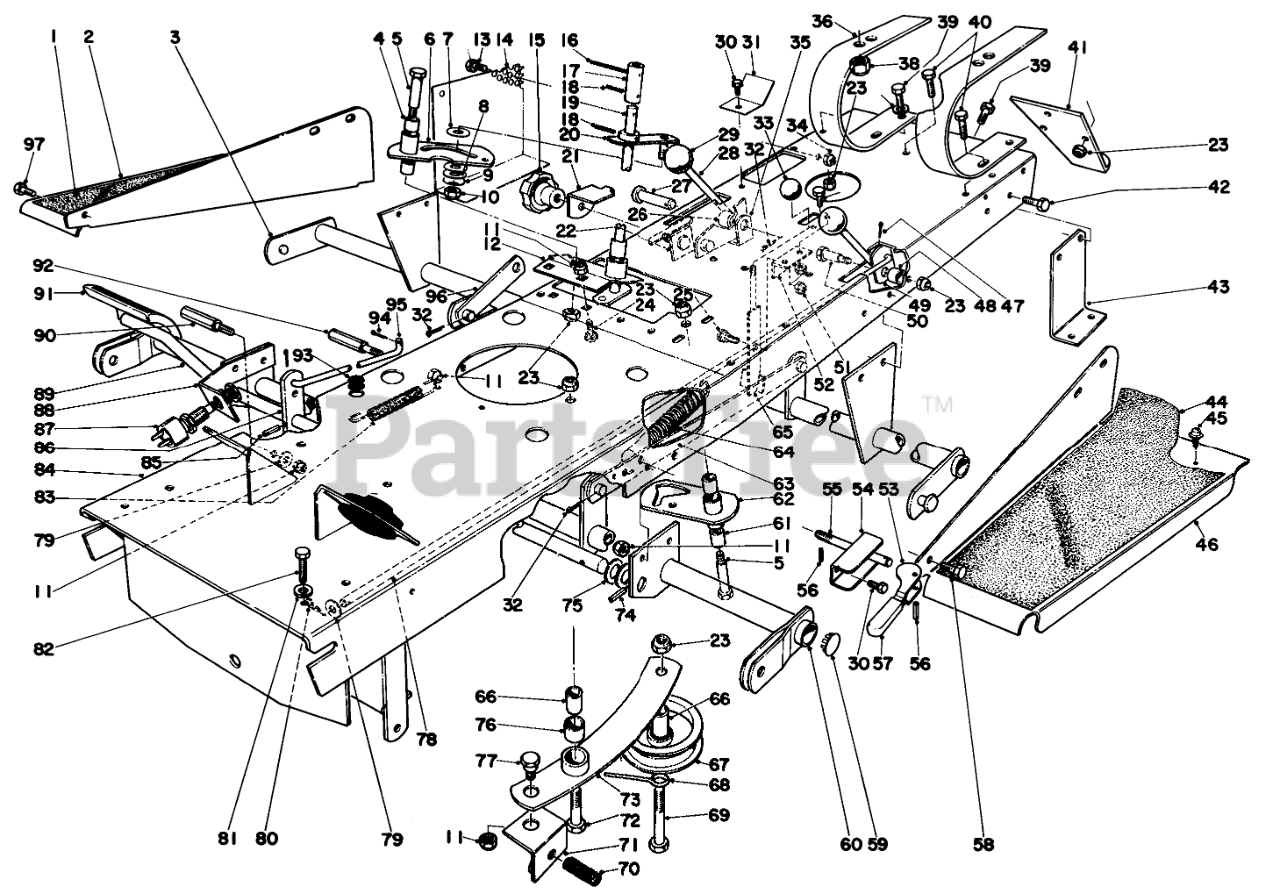

CHASSIS ASSEMBLY Parts Diagram

  • Title
1

Toro 7-4128

Pad R. H.

$

$

Not available

2

Toro 7-4033

Footrest R.H.

$

$

Currently unavailable

3

Toro 7-5770

Cross Tube

$

$

Currently unavailable

4

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

5

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

6

Toro 7-4164

Cam Plate

$

$

Currently unavailable

7

Toro 7-4182

Washer

$

$

Currently unavailable

8

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

9

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

10

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 7-4166

Bracket-Control

$

$

Currently unavailable

13

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

14

Toro 7-4460

Fan Guide Side

$

$

Currently unavailable

15

$

$

Not available

16

Toro 32121-82

Roll Pin

$

$

Currently unavailable

17

Toro 7-4181

Sleeve Handle

$

$

Currently unavailable

18

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

19

Toro 7-4172

Handle Hydro Control

$

$

Currently unavailable

20

Toro 7-4160

Control Crank

$

$

Currently unavailable

21

Toro 7-4098

Slide

$

$

Not available

22

Toro 7-3667

Knob Plate

$

$

Currently unavailable

23

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

24

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 7-7850

Shoulder Bolt

$

$

Currently unavailable

26

Toro 7-4237

Spacer

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Toro 7-4076

Lever

$

$

Currently unavailable

29

Toro 233-24

Knob
(Superseded to 233-48)

$13.99

$

Usually ships in 3-6 days

0

30

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

31

Toro 7-5900

Shield Fan

$

$

Currently unavailable

32

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

33

$12.99

$

Usually ships in 3-6 days

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

35

Toro 7-4245

Support Height of Cut Lever

$

$

Currently unavailable

36

Toro 7-7620

Seat Spring

$

$

Not available

37

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

39

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 3235-1

Capscrew

$

$

Currently unavailable

41

Toro 7-4032

Hitch

$

$

Currently unavailable

42

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

43

Toro 7-4187

Axle Support L.H.

$

$

Currently unavailable

Toro 7-4470

Axle Support R.H.

Note: Not illustrated

$

$

Currently unavailable

44

Toro 7-4130

Pad Left

$

$

Not available

45

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

46

Toro 7-4034

Footrest

$

$

Currently unavailable

47

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

48

Toro 7-4070

Spacer

$

$

Currently unavailable

49

Toro 7-4073

Lever

$

$

Currently unavailable

50

Toro 7-1784

Shoulder Bolt

$

$

Currently unavailable

51

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

52

Toro 7-7840

Bracket Pivot

$

$

Currently unavailable

53

Toro 7-5780

Idler Crank

$

$

Currently unavailable

54

Toro 7-5850

Retainer Idler

$

$

Currently unavailable

55

Toro 7-6540

Adjustment Rod

$

$

Currently unavailable

56

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

57

Toro 7-6560

Handle Grip

$

$

Currently unavailable

58

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Toro 2410-26

Plug Button

$

$

Currently unavailable

60

Toro 7-4022

Cross Tube Front

$

$

Currently unavailable

61

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

62

Toro 7-4170

Plate Neutralizer

$

$

Currently unavailable

63

Toro 7-4052

Lift Equalizer

$

$

Currently unavailable

64

Toro 7-4292

Spring Counterbalance

$

$

Not available

65

Toro 7-7800

Drive Lever

$

$

Currently unavailable

66

Toro 7-6550

Idler Spacer

$

$

Currently unavailable

67

Toro 7-4660

Flat Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 2 left!

0

68

Toro 7-6530

Belt Retainer

$

$

Currently unavailable

69

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

70

Toro 7-5840

Compression Spring

$

$

Currently unavailable

71

Toro 7-5860

Swivel Bracket

$

$

Currently unavailable

72

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

73

Toro 7-5830

Bracket Idler

$

$

Currently unavailable

74

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

75

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

76

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

77

Toro 7-0163

Shoulder Bolt
(Superseded to 37-8770)

$1.49

$

In Stock, only 2 left!

0

78

Toro 7-4196

Rod Clutch

$

$

Currently unavailable

79

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

80

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

81

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

82

Toro 32104-28

He Ha. Screw

$

$

Not available

83

Toro 7-4291

Spring

$

$

Not available

84

Toro 7-7520

Frame

$

$

Currently unavailable

85

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

86

Toro 7-4183

Pedal Crank Neutralizer

$

$

Currently unavailable

87

Toro 7-5540

Switch Spno

$

$

Currently unavailable

88

Toro 7-4235

Bracket Switch

$

$

Currently unavailable

89

Toro 7-5680

Pedal

$

$

Currently unavailable

90

Toro 7-3668

Pedal Stop

$

$

Currently unavailable

91

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

92

Toro 7-4590

Brake Stop

$

$

Currently unavailable

93

Toro 237-62

GROMMET

$

$

Currently unavailable

94

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

95

Toro 7-4185

Link Neutralizer

$

$

Currently unavailable

96

Toro 7-4195

Lift Link

$

$

Currently unavailable

97

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
