5524 ST (961910001-02) - Husqvarna 24" Snow Blower (2007-01) CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

24" Snow Blower

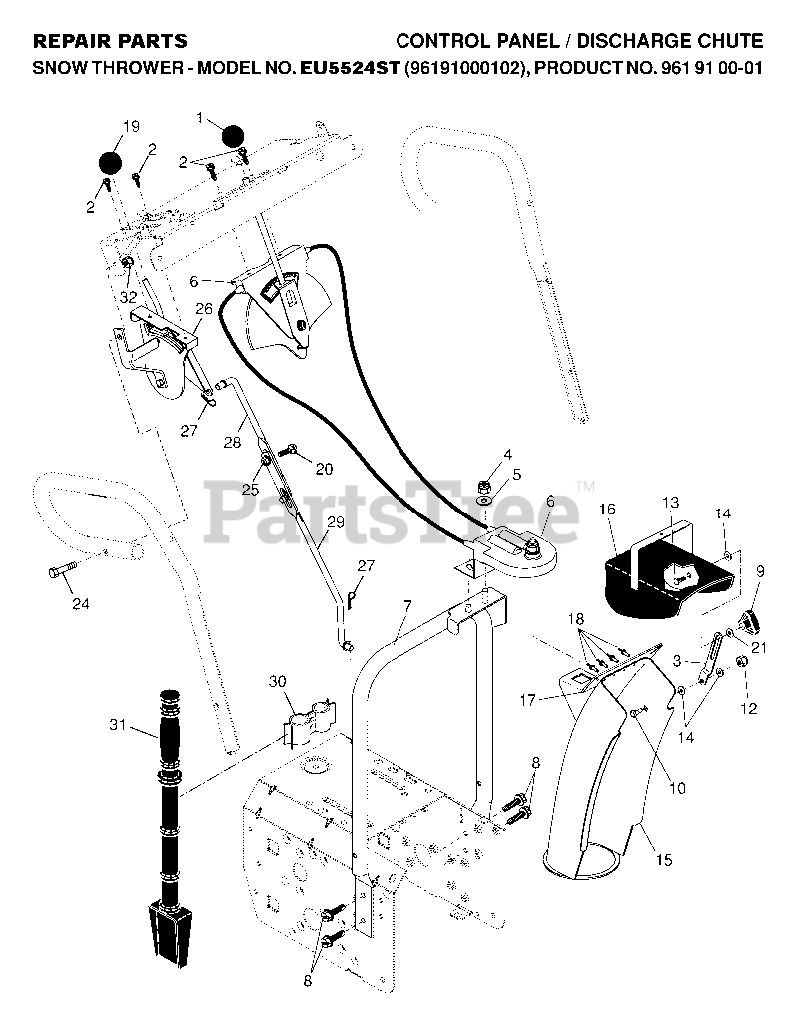

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title
16

Husqvarna 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

$120.99

$

In Stock, only 1 left!

0

25

Husqvarna 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 532404974

CONTROL ASSEMBLY,CHUTE ROTATER
(Superseded to 532428272)

$182.99

$

In Stock, only 2 left!

0

26

Husqvarna 532198474

HEAD ASSY SPEED
(Superseded to 532429667)

$

$

Not available

20

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532183333

RP KNOB, SPEED CONTROL LEVER
(Superseded to 532414281)

$22.99

$

In Stock, only 1 left!

0

10

Husqvarna 532185600

SHOULDER BOLT

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532183334

KNOB, LEVER
(Superseded to 532414280)

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532407643

SUPPORT, PIVOT
(Superseded to 532443617)

$

$

Not available

3

Husqvarna 532184114

STRAP, CHUTE
(Superseded to 532435798)

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532407650

CHUTE ASSEMBLY
(Superseded to 588077802)

$120.99

$

In Stock, only 1 left!

0

13

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

27

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 3 left!

0

29

Husqvarna 532187716

ROD, LOWER SPEED CONTROL.SNOW

$

$

Not available

28

Husqvarna 532180445

ROD, UPPER SPEED CONTROL

$39.99

$

In Stock, Qty 5

0

17

Husqvarna 532179145

SEAL, DEFLECTOR
(Superseded to 532420325)

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

30

Husqvarna 532192710

CLAMP.ASM.CLEANOUT.TOOL.SNOW

$10.99

$

Usually ships in 3-10 days

0
