5524 ST (961910001-02) - Husqvarna 24" Snow Blower (2007-01) AUGER HOUSING & IMPELLER Parts Diagram

24" Snow Blower

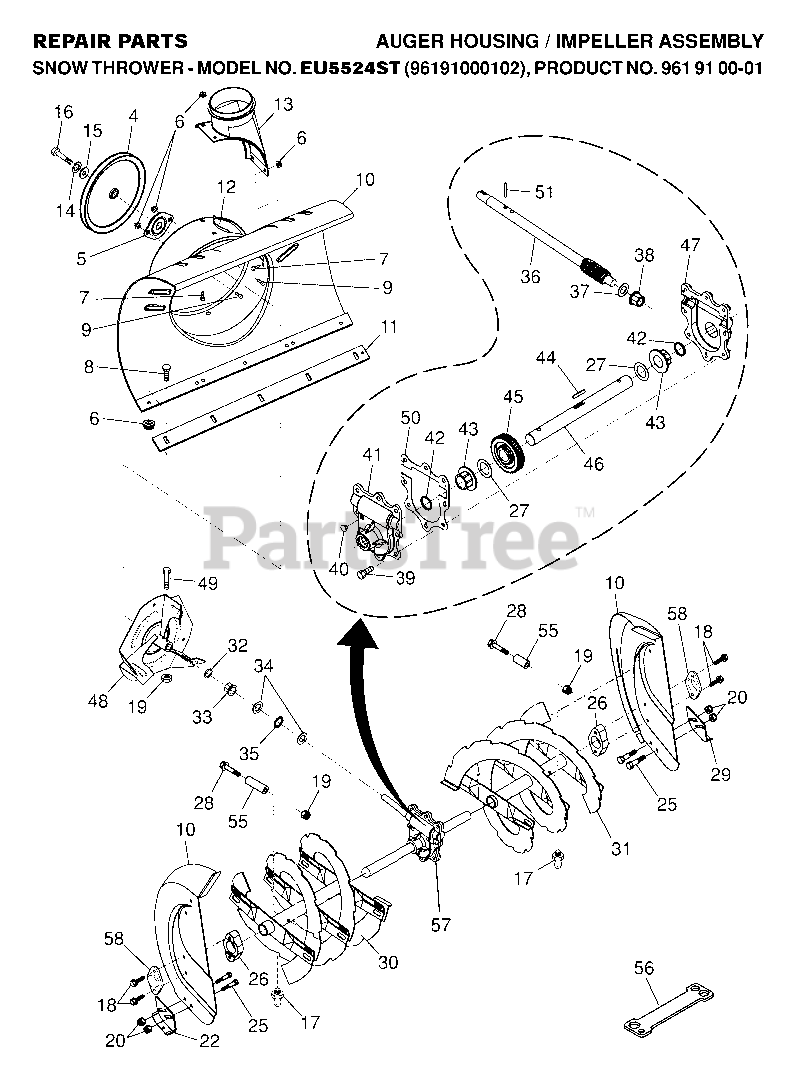

AUGER HOUSING & IMPELLER Parts Diagram

  • Title
31

Husqvarna 532407826

RP AUGER ASSEMBLY, LH
(Superseded to 532435540)

$159.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532407767

HEX SCREW-5/16 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

9

$7.99

$

In Stock, only 1 left!

0

36

Husqvarna 532407757

SHAFT, IMPELLER

$102.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532188170

BEARING RETAINER, PLASTIC

$

$

Not available

49

Husqvarna 874780426

SCREW.HEX.HD1/4-20X
(Superseded to 596322101)

$3.99

$

In Stock, Qty 10

0

12

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$4.99

$

In Stock, Qty 8

0

11

Husqvarna 532407825

BAR, SCRAPER
(Superseded to 532404931)

$15.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532174684

BEARING TRUST 3/4 NTA-1220

$9.99

$

In Stock, only 2 left!

0

37

Husqvarna 532174683

WASHER, THRUST 5/8

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532187925

BEARING.BALL.AUGER.SHAFT

$62.99

$

In Stock, only 2 left!

0

25

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

40

Husqvarna 532407760

CASE PLUG
(Superseded to 532086447)

$

$

Not available

51

Husqvarna 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 532007836)

$4.99

$

In Stock, Qty 7

0

45

Husqvarna 532407763

WORM GEAR
(Superseded to 598831601)

$265.99

$

In Stock, only 4 left!

0

22

Husqvarna 532184093

SKID PLATE LH
(Superseded to 532174762)

$9.49

$

In Stock, only 1 left!

0

55

Husqvarna 532198638

SPACER.3943.SLEEVE.250X.47

$7.49

$

In Stock, Qty 10

0

33

Husqvarna 532407769

BUSHING, FLANGE 3/4

$9.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 532407758

FLANGE BUSHING-5/8
(Superseded to 532174686)

$

$

Not available

47

Husqvarna 532407765

HOUSING.GEARBOX.LH(SERVICE)

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532191079

PULLEY, IMPELLER
(Superseded to 532427071)

$

$

Not available

57

Husqvarna 532196710

GEARBOX.ASSEMBLY.AUGER
(Superseded to 598831601)

$265.99

$

In Stock, only 4 left!

0

19

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532407880

AUGER HOUSING
(Superseded to 581708379)

$236.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532405637

GREASE FITTING

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532407770

OIL SEAL
(Superseded to 532174698)

$

$

Not available

34

Husqvarna 532174681

WASHER, THRUST 3/4

$14.99

$

In Stock, only 3 left!

0

29

Husqvarna 532184094

SKID PLATE RH
(Superseded to 532436125)

$

$

Not available

18

Husqvarna 532179582

SCREW, HEX HD 5/16X1

$7.49

$

In Stock, only 3 left!

0

14

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 532407827

RP AUGER ASSEMBLY, RH
(Superseded to 532435541)

$

$

Not available

15

Husqvarna 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532180684

RP WRENCH, SNOWTHROWER
(Superseded to 532429112)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532198636

BOLT, SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

13

Husqvarna 532175322

BASE DISCHARGE CHUTE
(Superseded to 585056901)

$11.99

$

In Stock, Qty 17

0

5

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, only 2 left!

0

8

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

In Stock, only 3 left!

0

41

Husqvarna 532407761

GEARBOX HOUSING-RH
(Superseded to 532174688)

$

$

Not available

7

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 9

0

48

Husqvarna 532184105

IMPELLER ASSY
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532407766

GEARBOX GASKET
(Superseded to 532175311)

$

$

Not available

46

Husqvarna 532407764

AUGER SHAFT
(Superseded to 532174657)

$68.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532407762

FLANGE BUSHING-1"
(Superseded to 532174701)

$

$

Not available

27

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available
