5524 CS (31AS3BB2766) - Troy-Bilt Storm 24" Snow Thrower (2005) Engine Drive Parts Diagram

Storm 24" Snow Thrower

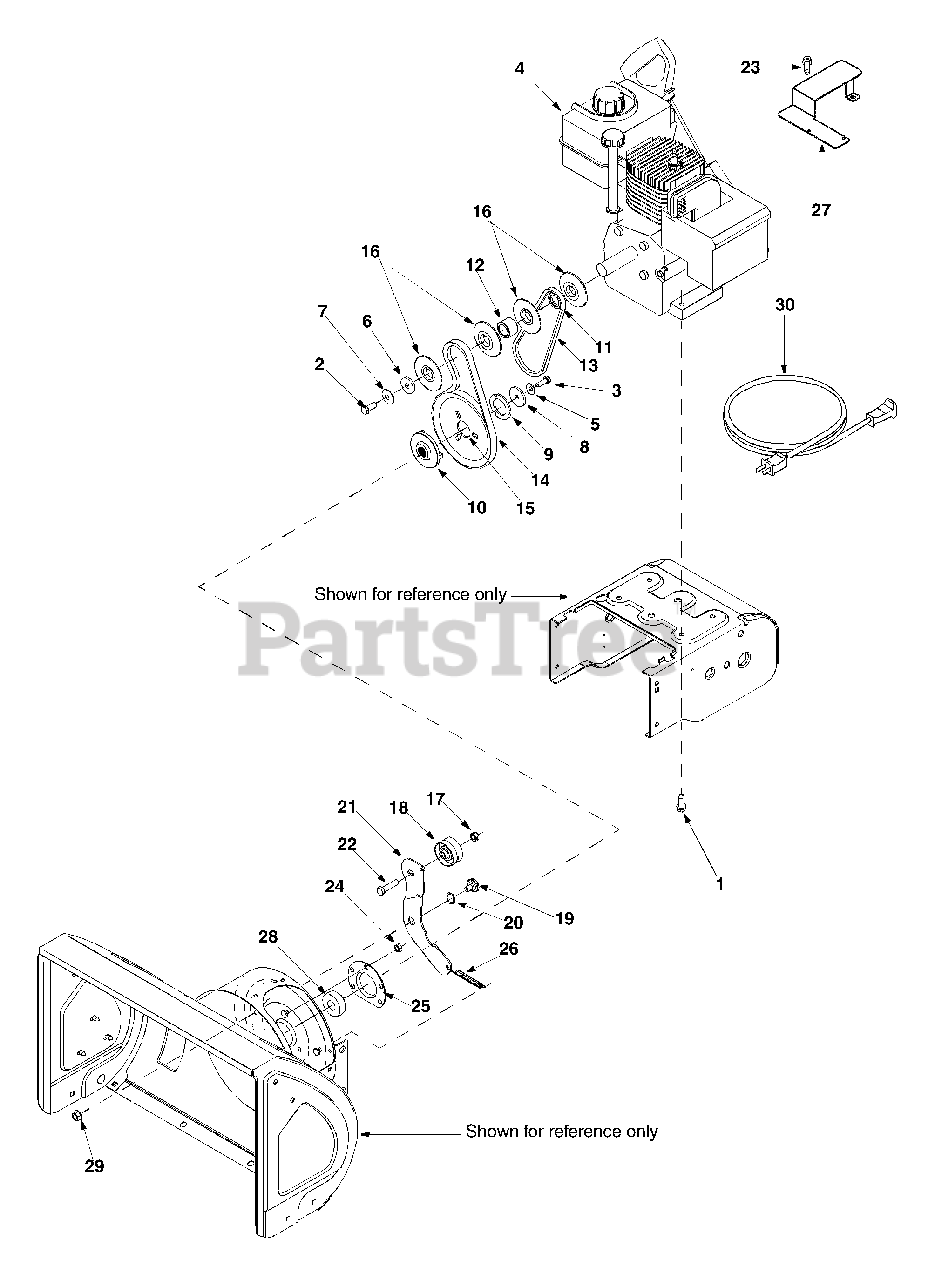

Engine Drive Parts Diagram

  • Title

1

Troy-Bilt 710-0654A

TT Sems Screw 3/8-16 x 1.0"

$4.49

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-0696

Hex Bolt 3/8-24 x 0.875"

$6.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-1245B

Lock Bolt 5/16-24 x 0.875"

$8.49

$

In Stock, only 2 left!

0

4

Engine

Note: (purchase locally)

$

$

Not available

5

Troy-Bilt 736-0242

Bell Washer,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 736-0247

Flat Washer,.406ID x 1.25OD

$9.49

$

In Stock, Qty 15

0

7

Troy-Bilt 736-0331

Bell Washer,.390 x 1.13 x.062

$3.99

$

In Stock, Qty 16

0

8

Troy-Bilt 736-0505

Flat Washer,.34ID x 1.50OD

$6.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 936-0507

Special Washer, 1.285 x 2.0 x.119

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 948-0360

Pulley: Adapter,.75 Dia.

$22.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 950-1355

Spacer,.8760ID x 1.25OD x.1900

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 950-1356

Spacer,.8760ID x 1.25OD x.86

$10.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 954-04013

V-Belt, 3/8 x 21.108 Lg.

$22.99

$

In Stock, Qty 13

0

14

Troy-Bilt 954-05110

V-Belt, 3/8 x 26.375 Lg.

Note: (replaces 754/954-04014 in this application)

$28.99

$

In Stock, Qty 12

0

15

Troy-Bilt 956-04024

Auger Pulley

$25.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 912-3000

Hex Lock Nut 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

18

MTD 756-04035

Flat Idler

Note: No Longer Available

$

$

Not available

19

Troy-Bilt 938-0281

Shoulder Screw 3/8-16
(Superseded to 738-0281)

$

$

Not available

20

Troy-Bilt 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 784-0434-0637

Auger Idler Bracket
(Superseded to 784-0434C-0637)

$19.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0520

Hex Bolt 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 6

0

23

Troy-Bilt 710-0456

Screw, #10-16 x.500

$

$

Not available

24

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

26

Troy-Bilt 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 990-00064

Heat Shield

$

$

Not available

28

Troy-Bilt 941-0309

Ball Bearing

$74.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 929-0071A

Extension Cord: 110V, 3-Prong
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0
