5524 (31AS6BN2766) - Troy-Bilt Storm 24" Snow Thrower (2005) Drive Parts Diagram

Storm 24" Snow Thrower

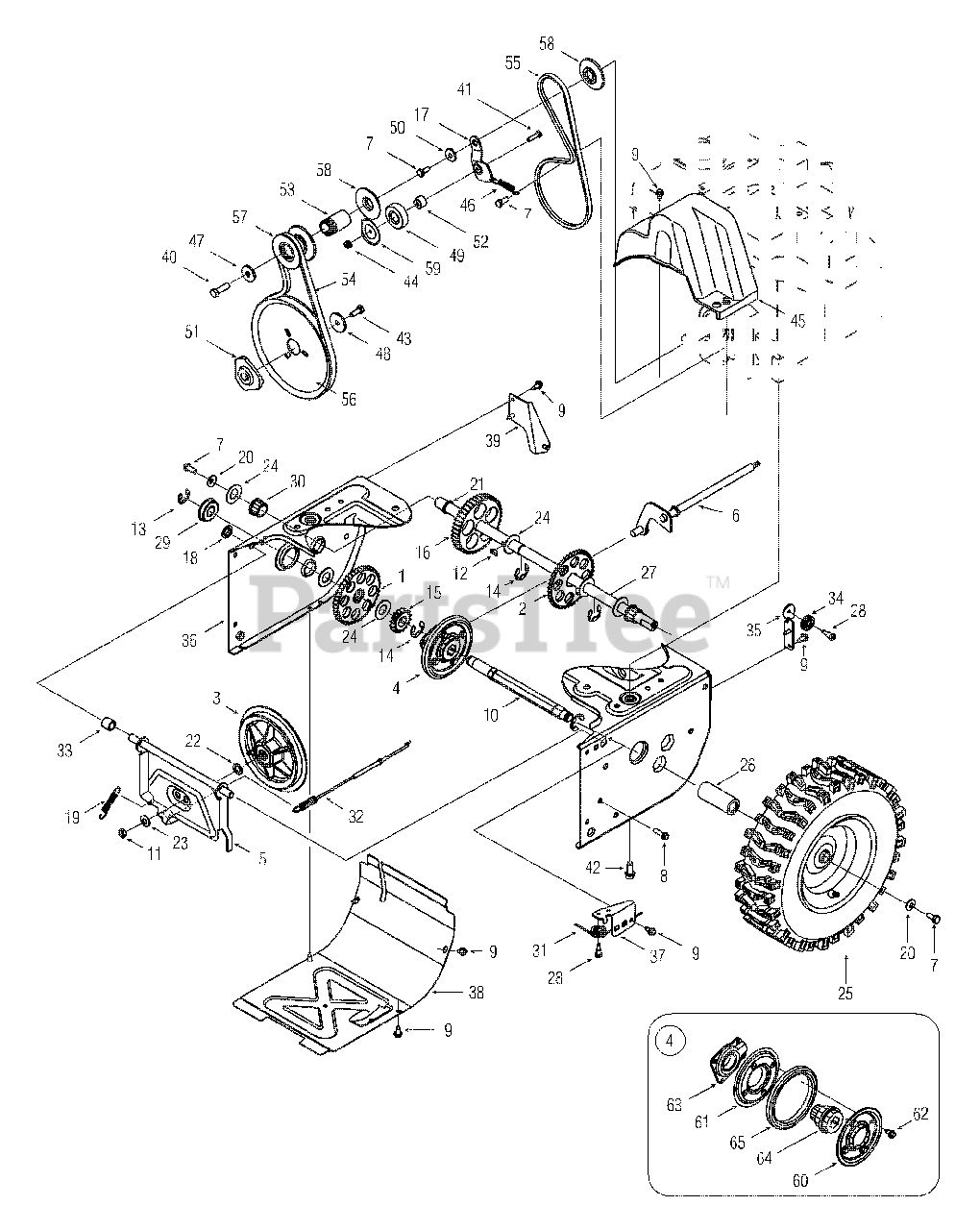

Drive Parts Diagram

  • Title

1

Troy-Bilt 617-04026

Gear Assembly, 16/44T
(Superseded to 917-04026A)

$125.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 617-04025

Gear Assembly, 16/44T
(Superseded to 917-04025A)

$107.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 656-0012A

Disc Assembly, Friction Wheel, .375
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 6

0

4

Troy-Bilt 684-04066

Wheel Assembly, Friction, 4.9 OD
(Superseded to 984-04066)

$108.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 684-04045

Support Bracket Ass'y, Friction Wheel

Variations

Troy-Bilt 684-04045-0637

Friction Wheel Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

6

Troy-Bilt 684-04139

Shift Assembly, Rod

$57.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-0627

Screw, 5/16-24 x .750, Gr5

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0788

Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 711-04246A

Hex Shaft, Drive, .75
(Superseded to 753-05173A)

$

$

Not available

11

Troy-Bilt 712-0711

Nut, Jam, 3/8-24, Gr2

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-0161

Key, Hi-pro 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 716-0231

Ring, E Type, .750

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 716-0136

Ring, E-Type, .875

$8.99

$

In Stock, Qty 18

0

15

Troy-Bilt 717-04129A

Pinion, 16T

$28.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 717-04137A

Gear, 44T

$80.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 790-00082

Idler, Bracket, Drive

Variations

Troy-Bilt 790-00082-0637

Drive Idler Bracket - POWDER BLACK

$

$

Not available

$

$

18

Troy-Bilt 726-0221

Nut, Speed, .500

$6.49

$

In Stock, only 2 left!

0

19

Troy-Bilt 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-04161

Washer, Flat, .75 x 1.00 x .060

$6.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0105

Washer, Bell, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0287

Washer, Flat, .793 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 634-04167

Wheel, Complete, 13 x 4 x 6, LH
(Superseded to 634-04167A-0911)

$189.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-04168

Wheel, Complete,13 x 4 x 6, RH
(Superseded to 634-04168A-0911)

$189.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04151

Rim Only
(Superseded to 634-04172A)

Variations

Troy-Bilt 634-04151-0662

RIM ASM 6X3.25 W/V - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-04128

Tire Only
(Superseded to 734-04128-0901)

Variations

Troy-Bilt 734-04128-0901

TIRE X-TRAC - Carlisle (0901)

$83.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 731-04873

Spacer, 1.25 OD x .75 ID x 3.00

$10.99

$

In Stock, Qty 7

0

27

Troy-Bilt 738-04095A

Axle, .75 x 22

$139.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 738-0924

Screw, 1/4-28 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

29

Troy-Bilt 741-0563

Bearing, Ball, 17 x 40 x 12
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

30

Troy-Bilt 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 746-0897

Cable, Auger, 44.75
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 746-04086

Cable, Drive, 41.75
(Superseded to 946-04086)

$40.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, Qty 11

0

34

Troy-Bilt 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

35

Troy-Bilt 784-5687A

Guide Bracket, Auger Cable
(Superseded to 784-5687A-0637)

Variations

Troy-Bilt 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

36

Troy-Bilt 790-00072

Frame

Variations

Troy-Bilt 790-00072-0606

FRAME-DRIVE HSG - MAJESTIC ORANGE

$

$

Not available

Troy-Bilt 790-00072-0638

FRAME-DRIVE HSG - MTD/TROY-BILT RED

$

$

Not available

Troy-Bilt 790-00072-0709

FRAME-DRIVE HSG - MASTERCRAFT GREEN

$

$

Not available

Troy-Bilt 790-00072-0716

FRAME-DRIVE HSG - CUB YELLOW-99

$

$

Not available

$

$

37

Troy-Bilt 790-00096

Guide Bracket, Front, Auger Cable
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 2 left!

0

$7.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 790-00054

Cover, Frame

Variations

Cub Cadet 790-00054-0691

Frame Cover - BLACK JACK

$

$

Not available

Troy-Bilt 790-00054-0691

Frame Cover - BLACK JACK

$

$

Not available

$

$

39

Troy-Bilt 790-00055

Roller Bracket, Drive Cable

Variations

Troy-Bilt 790-00055-0637

BRACKET-DRIVE CABLE - POWDER BLACK

$

$

Not available

$

$

40

Troy-Bilt 710-0191

Screw, 3/8-24 x 1.25, Gr8

$4.99

$

In Stock, Qty 9

0

41

Troy-Bilt 710-0597

Screw, 1/4-20 x 1.00, Gr5

$3.99

$

In Stock, Qty 13

0

42

Troy-Bilt 710-0654A

Screw, Sems, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-1245B

Screw, 5/16-24 x .875, Gr8

$8.49

$

In Stock, only 4 left!

0

44

Troy-Bilt 712-04064

Nut, Flange Lock, Nylon, 1/4-20, Gr F

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 731-04792

Cover, Belt
(Superseded to 731Z04792F)

$24.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 732-0710

Spring, Extension, .38 OD x 2.68
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

47

Troy-Bilt 736-0247

Washer, Flat, .406 x 1.25 x.157

$9.49

$

In Stock, Qty 12

0

48

Troy-Bilt 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

49

Troy-Bilt 741-0919

Bearing, Ball, 20 x 47 x 14
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 748-04053

Pulley, Adapter, .75 Dia.
(Superseded to 748-04053A)

$22.99

$

In Stock, only 3 left!

0

52

Troy-Bilt 750-04230

Spacer, .777 OD x .260 ID x.550
(Superseded to 750-04230A)

$5.49

$

In Stock, only 1 left!

0

53

Troy-Bilt 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

54

Troy-Bilt 754-04050

V-Belt, 1/2"
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 754-0456

V-Belt, 3/8"
(Superseded to 954-0456)

$29.99

$

In Stock, only 4 left!

0

56

Troy-Bilt 756-04109

Pulley, Auger, 8.1 x .50

$54.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 756-04113

Pulley, Half, 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 756-04114

Pulley, Half, 2.2 OD

$13.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 790-00062

Washer, Bearing, 2.12 OD x .255 ID
(Superseded to 990-00062)

$8.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 790-00010

Plate, Friction, 12 Pt 4.60 Dia

$13.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 790-00011

Plate, Friction, Extrs, 12 Pt 4.60 Dia

$13.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-0896

Screw, Self-tapping, 1/4-14 x 0.625

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 618-04169

Bearing Assembly, Friction Wheel

$

$

Currently unavailable

64

Troy-Bilt 718-04070

Hub, Friction Wheel

$

$

Currently unavailable

65

Troy-Bilt 735-0243B

Friction Wheel Rubber, 4.875 OD
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0
