5524 (31AS6BN2711) - Troy-Bilt Storm 24" Snow Thrower (2005) Handle Parts Diagram

Storm 24" Snow Thrower

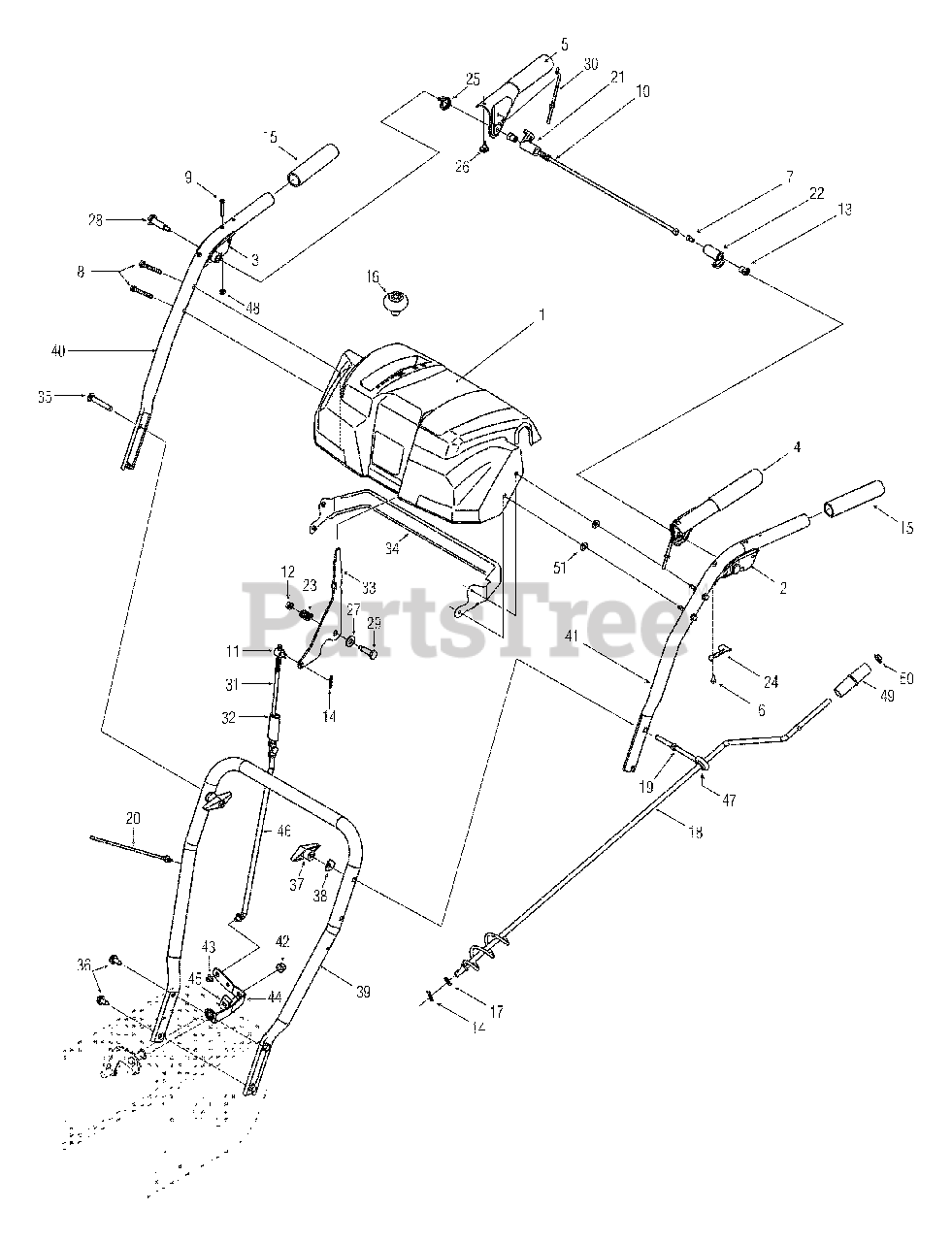

Handle Parts Diagram

  • Title

1

Troy-Bilt 731-04872

Panel Assembly, Handle, N-Style
(Superseded to 731P05334C)

$72.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 731-04785

Handle Assembly, Clutch Lock, LH
(Superseded to 631-04133A)

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 731-04784

Handle Assembly, Clutch Lock, RH
(Superseded to 631-04134B)

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 684-04105

Handle Assembly, Engagement, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 684-04106

Handle Assembly, Engagement, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-04326

Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-04354

Screw, 1/4-20 x .375

$3.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 710-1026

Screw, Self-tapping, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

9

Troy-Bilt 710-1233

Screw, Machine, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

10

Troy-Bilt 711-04287

Rod, Pivot
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 711-0677

Ferrule, 5/16-18 x .312
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 712-04064

Nut, Flange Lock, Nylon, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04081A

Nut, Shoulder, Hex, 1/4-20,

$7.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 714-0104

Pin, Cotter, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 720-04039

Knob, Shift

$10.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 736-0185

Washer, Flat, .375 x .738 x .063

$3.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 684-04104-0637

Crank Assembly, Chute

$62.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 747-04263

Eye Bolt, Chute Crank

$9.49

$

In Stock, only 2 left!

0

20

Troy-Bilt 726-0470

Tie, Cable, 19 x 8.39", Tree Mount

$4.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 731-04894

Plate, Lock
(Superseded to 731-04894D)

$5.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 731-04896

Cam, Clutch Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

23

Troy-Bilt 732-0193

Spring, Compression, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

24

Troy-Bilt 732-04219

Spring, Clutch, Lock
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-04238

Spring, Torsion, 0.8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

26

Troy-Bilt 735-0199A

Bumper, Rubber, .62 OD x .22

$7.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 738-04122

Screw, Shoulder, .437 x 1.345, 1/4-20
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 738-04125

Screw, Shoulder, .374 Dia. x 1.05

$4.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 746-0778

Z-Fitting, Cable
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

31

Troy-Bilt 747-04348

Shift Rod, Upper, .312 x 8.98

$13.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 750-0963

Connector Sleeve, Shift Rod
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 790-00130

Lever, Shift
(Superseded to 790-00130-0637)

Variations

Troy-Bilt 790-00130-0637

LEVER-SHIFT - POWDER BLACK

$

$

Not available

$

$

34

Troy-Bilt 790-00140

Bracket, Panel
(Superseded to 790-00140-0637)

Variations

Troy-Bilt 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

35

Troy-Bilt 710-0449

Screw, Carriage, 5/16-18, 2.25, Gr5
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 720-0284

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0451

Washer, Saddle, 320 x .93 x .060

$4.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 749-04138

Handle, Lower, Snow
(Superseded to 749-04138A)

Variations

Troy-Bilt 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 749-04141

Handle, Upper, RH

Variations

Troy-Bilt 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

Troy-Bilt 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 712-04063

Nut, Flange Lock, Nylon, 5/16-18

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 726-0135

Nut, Speed, .3125 Dia.

$6.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 732-04205

Spring Lever, Shift

$11.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 790-00156

Bracket, Shift Spacer

$7.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 747-04257

Shift Rod, Lower

$34.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 735-0234

Grommet, .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

48

Troy-Bilt 712-0161

Nut, Hex Lock, Nylon, #10-24, Gr2

$4.49

$

In Stock, only 1 left!

0

49

Troy-Bilt 720-0201A

Crank Knob, 1.0 Diameter x 3.2, Black

$10.99

$

In Stock, only 4 left!

0

50

Troy-Bilt 726-0100

Cap, Push, 3/8 Rod

$4.49

$

In Stock, only 3 left!

0

51

Troy-Bilt 736-0463

Washer, Flat, .25 x .630 x .051

$4.49

$

In Stock, only 2 left!

0
