55233 - Toro 36" Lawn Tractor (SN: 003000001 - 003999999) (1973) REAR TIRE AND FENDER ASSEMBLY Parts Diagram

36" Lawn Tractor

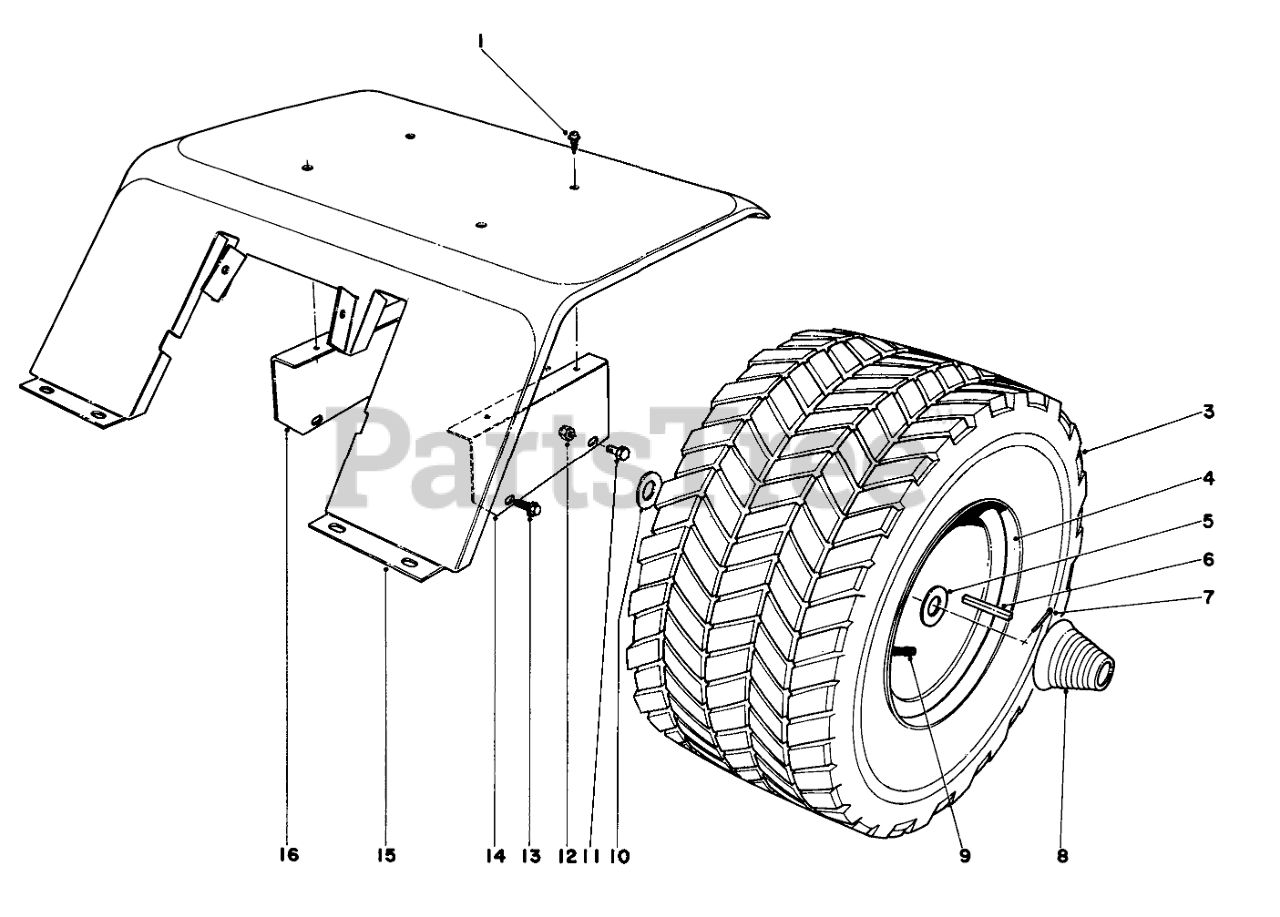

REAR TIRE AND FENDER ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

3

Toro 231-60

Tire

$

$

Currently unavailable

Toro 231-65

Turf-King-Tire

Note: Not Illustrated.

$

$

Currently unavailable

4

Toro 217-97

Rim

$

$

Currently unavailable

5

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

6

Toro 5-1865

KEY

$

$

Not available

7

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

8

Toro 7-3932

FRONT HUB CAP

$

$

Not available

9

Toro 232-21

VALVE -STEM
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

10

Toro 12-3950

Washer-Special

$

$

Currently unavailable

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

13

Toro 32140-15

1/4-20X5/8 THDG SEMS

$

$

Currently unavailable

14

Toro 7-4120

Fender Support L.H.

$

$

Not available

15

Toro 7-5120

Fender

$

$

Currently unavailable

16

Toro 7-4118

Fender Support R.H.

$

$

Currently unavailable
