55233 - Toro 36" Lawn Tractor (SN: 003000001 - 003999999) (1973) FRAME ASSEMBLY Parts Diagram

36" Lawn Tractor

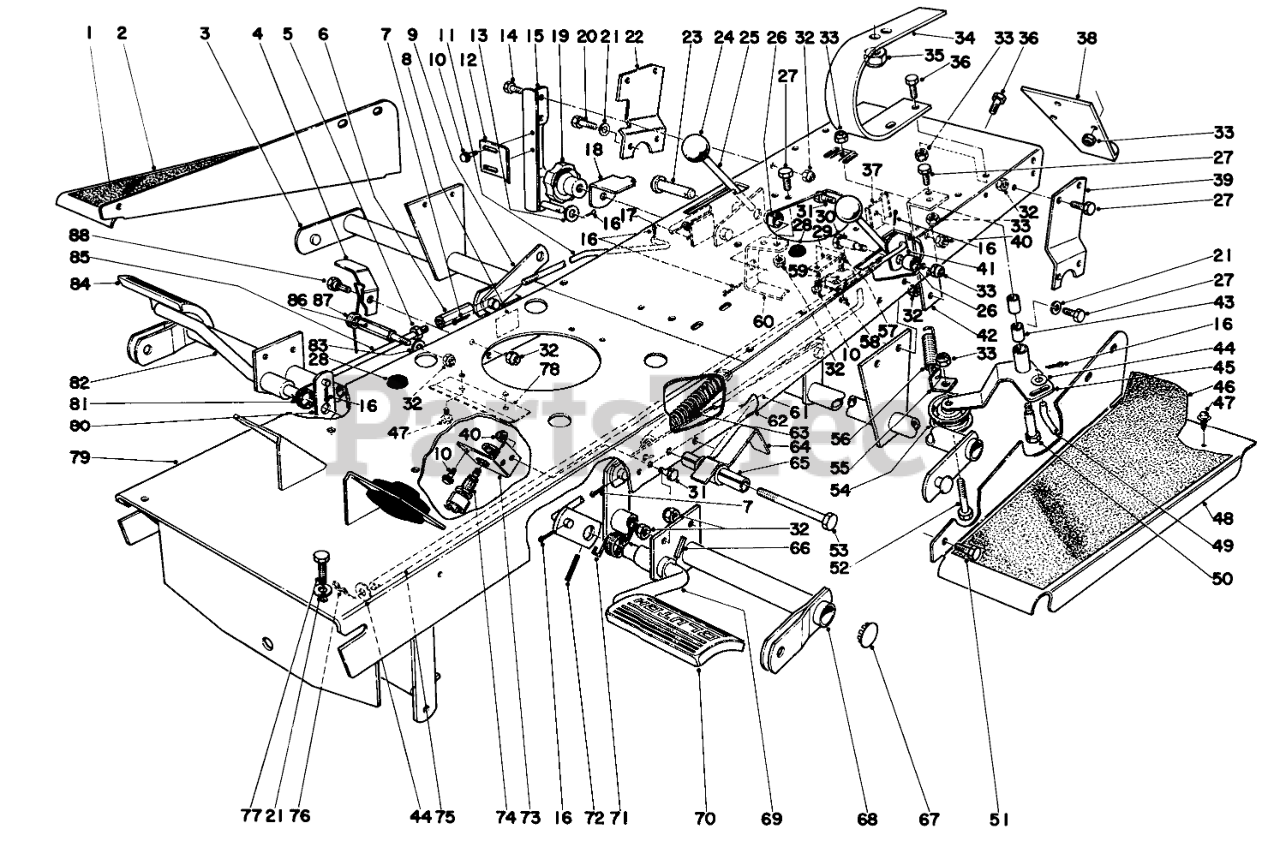

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4128

Pad R. H.

$

$

Not available

2

Toro 7-4033

Footrest R.H.

$

$

Currently unavailable

3

Toro 7-5770

Cross Tube

$

$

Currently unavailable

4

Toro 12-8750

Latch

$

$

Currently unavailable

5

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

6

Toro 7-4193

Screw Brake Adjusting

$

$

Not available

7

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 12-4020

Decal Brake

$

$

Currently unavailable

9

Toro 7-4195

Lift Link

$

$

Currently unavailable

10

Toro 32140-32

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

11

Toro 7-5510

Brake Rod Rear

$

$

Not available

12

Toro 7-9370

Ball Joint

$

$

Currently unavailable

13

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 7-9380

Brake Hanger

$

$

Currently unavailable

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 17-1170

Knob Plate

$

$

Not available

18

Toro 7-4098

Slide

$

$

Not available

19

Toro 7-3902

Knob

$

$

Not available

20

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 7-5280

Support R.H.

$

$

Currently unavailable

23

Toro 283-24

Clevis Pin

$

$

Currently unavailable

24

Toro 233-24

Knob
(Superseded to 233-48)

$13.99

$

Usually ships in 3-6 days

0

25

Toro 7-4076

Lever

$

$

Currently unavailable

26

Toro 7-4070

Spacer

$

$

Currently unavailable

27

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 237-62

GROMMET

$

$

Currently unavailable

29

Toro 12-6880

Bracket Switch

$

$

Currently unavailable

30

Toro 7-4071

Shoulder Bolt

$

$

Currently unavailable

31

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

32

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

33

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

34

Toro 7-7620

Seat Spring

$

$

Not available

35

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

36

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

37

Toro 7-6720

Belt Guide

$

$

Currently unavailable

38

Toro 7-4032

Hitch

$

$

Currently unavailable

39

Toro 7-5250

Support Left

$

$

Currently unavailable

40

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

41

Toro 7-4073

Lever

$

$

Currently unavailable

42

Toro 7-5290

Support Transaxle

$

$

Currently unavailable

43

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

44

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 7-4043

Idler Arm (Incl. Ref. #43)

$

$

Currently unavailable

46

Toro 7-4130

Pad Left

$

$

Not available

47

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

48

Toro 7-4034

Footrest

$

$

Currently unavailable

49

Toro 7-4035

Clutch Rod

$

$

Currently unavailable

50

Toro 12-7610

Axle Bolt

$

$

Currently unavailable

51

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

52

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

53

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

54

Toro 12-6700

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

55

Toro 7-3976

Clip

$

$

Not available

56

Toro 7-4373

Tension Spring

$

$

Not available

57

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

58

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

59

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

60

Toro 7-6020

Support Guide

$

$

Currently unavailable

61

Toro 7-4052

Lift Equalizer

$

$

Currently unavailable

62

Toro 12-5410

Retainer Clutch Lock

$

$

Currently unavailable

63

Toro 7-4292

Spring Counterbalance

$

$

Not available

64

Toro 12-6890

Clutch Lock

$

$

Currently unavailable

65

Toro 17-0410

Spacer

$

$

Currently unavailable

66

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

67

Toro 2410-26

Plug Button

$

$

Currently unavailable

68

Toro 7-4005

Cross Tube Front

$

$

Currently unavailable

69

Toro 12-9250

Pedal Left

$

$

Currently unavailable

70

Toro 7-3901

CLUTCH PAD

$

$

Currently unavailable

71

Toro 7-4238

Pedal Return Spring

$

$

Not available

72

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

73

Toro 12-8430

Mounting Bracket Switch

$

$

Currently unavailable

74

Toro 12-6770

Neutral Switch

$

$

Not available

75

Toro 7-4196

Rod Clutch

$

$

Currently unavailable

76

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

77

Toro 32104-28

He Ha. Screw

$

$

Not available

78

Toro 12-7830

Clamp-Wire

$

$

Currently unavailable

79

Toro 12-3820

Frame

$

$

Currently unavailable

80

Toro 7-4191

Lever Pedal Shaft

$

$

Currently unavailable

81

Toro 7-4240

Pedal Return Spring

$

$

Not available

82

Toro 7-5660

Pedal R.H.

$

$

Currently unavailable

83

Toro 7-0532

Washer

$

$

Currently unavailable

84

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

85

Toro 7-5560

Brake Rod Front

$

$

Not available

86

Toro 7-4590

Brake Stop

$

$

Currently unavailable

87

Toro 17-1030

Spring-Brake Latch

$

$

Currently unavailable

88

Toro 12-1450

Screw

$

$

Currently unavailable
