55233 - Toro 36" Lawn Tractor (SN: 003000001 - 003999999) (1973) DASH AND TRANSAXLE ASSEMBLY Parts Diagram

36" Lawn Tractor

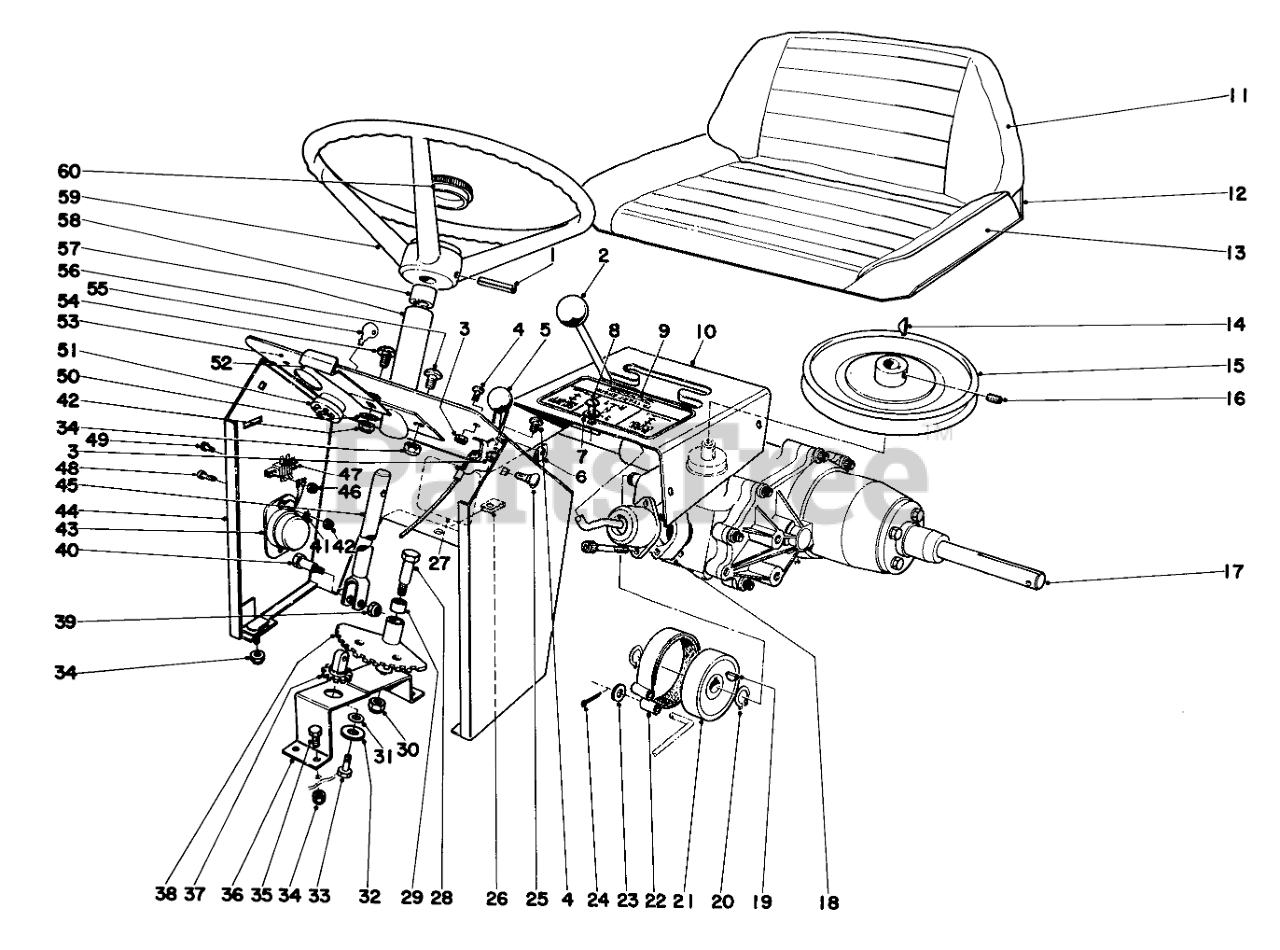

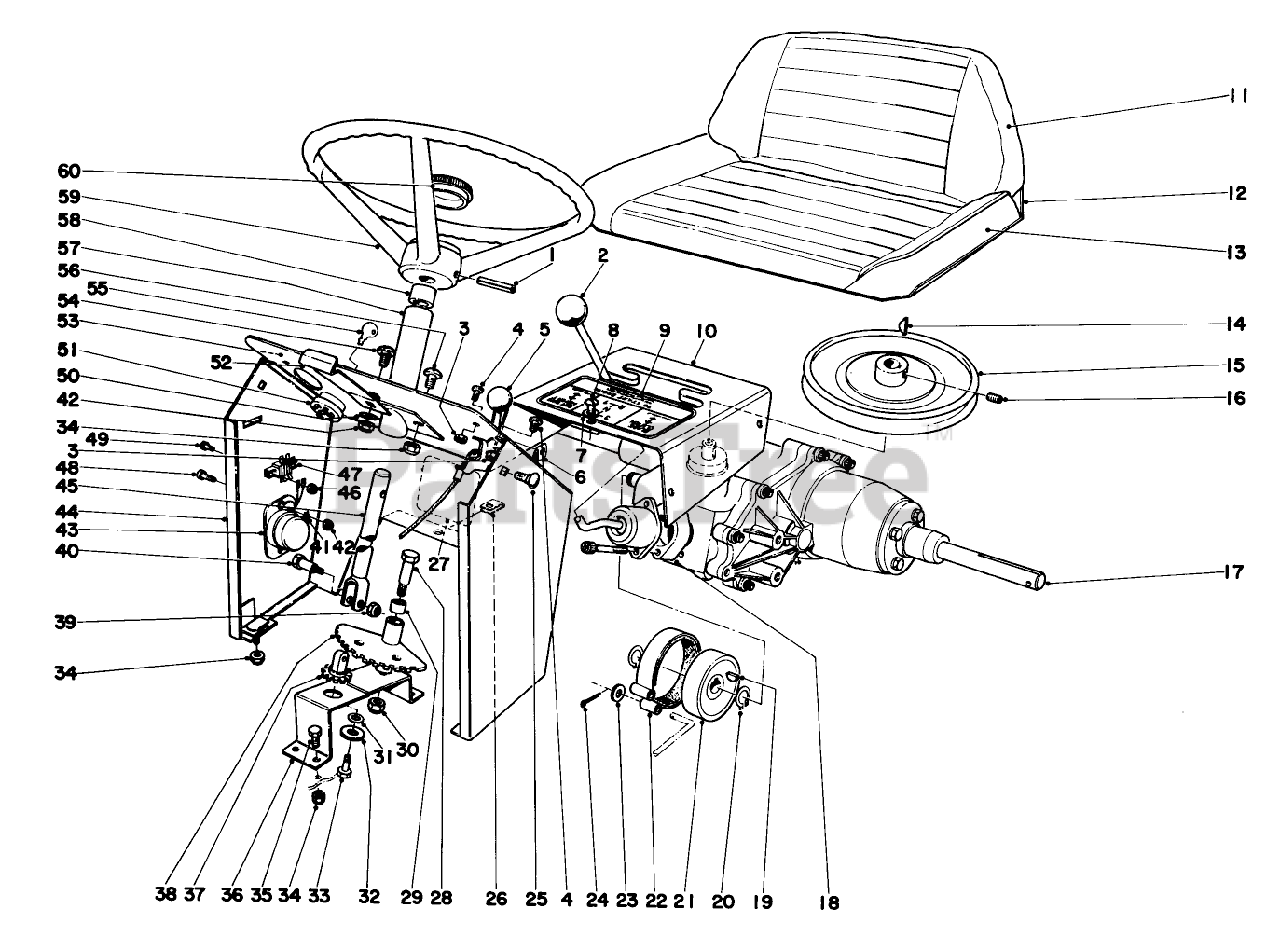

DASH AND TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

2

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

3

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

4

Toro 3290-305

Screw

$

$

Currently unavailable

5

Toro 7-5370

Throttle Control

$

$

Not available

6

Toro 12-5440

Strap Cable Tie

$

$

Currently unavailable

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3258-2

SCREW

$

$

Not available

9

Toro 12-3980

Decal-Shift Pattern

$

$

Currently unavailable

10

Toro 7-5360

Tunnel

$

$

Currently unavailable

11

Toro 351-49

Seat Back

$

$

Currently unavailable

12

Toro 351-51

Frame-Seat

$

$

Currently unavailable

13

Toro 351-50

Seat Cushion

$

$

Currently unavailable

14

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

15

Toro 7-4051

Pulley

$

$

Currently unavailable

16

Toro 3242-13

Set Screw
(Superseded to 3242-1)

$4.49

$

Usually ships in 3-6 days

0

17

Toro 7-4001

Transaxle

$

$

Not available

18

Toro 7-4264

Extension Shift Housing

$

$

Not available

19

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

20

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

21

Toro 7-4218

Brake Drum

$

$

Currently unavailable

22

Toro 7-4220

Brake Band

$

$

Not available

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

25

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

26

Toro 3290-192

SPEED NUT

$

$

Not available

27

Toro 12-2900

Decal-Caution

$

$

Currently unavailable

28

Toro 7-5500

Shoulder Bolt

$

$

Currently unavailable

29

Toro 256-100

BUSHING

$

$

Not available

30

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

31

Toro 7-5990

Spacer

$

$

Not available

32

Toro 7-6640

Washer

$

$

Not available

33

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

34

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

36

Toro 7-4148

Bracket

$

$

Not available

37

Toro 7-6000

Pinion Steering

$

$

Not available

38

Toro 7-5920

Gear Steering (Incl. Ref. #29)

$

$

Not available

39

Toro 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

40

Toro 7-6010

Screw Shoulder

$

$

Currently unavailable

41

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

42

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

43

Toro 12-7810

Cover-Center

$

$

Not available

44

Toro 12-7640

Dash

$

$

Currently unavailable

45

Toro 7-5960

Steering Shaft

$

$

Currently unavailable

46

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

47

Toro 12-6730

Terminal Block

$

$

Currently unavailable

48

Toro 3290-145

SCREW

$5.99

$

Usually ships in 3-6 days

0

49

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

50

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 7-5240

STARTER SWITCH

$

$

Not available

52

Toro 7-5080

Hood Latch

$

$

Currently unavailable

53

Toro 7-8400

Decal Dash

$

$

Currently unavailable

54

Toro 3229-23

Carriage Bolt
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

55

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

56

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

57

Toro 7-4002

Steering Tube (Incl. Ref. #58)

$

$

Currently unavailable

58

Toro 256-167

BUSHING

$

$

Not available

59

Toro 238-5

Steering Wheel

$

$

Not available

60

Toro 7-4323

Steering Wheel Cap

$

$

Not available
