5521FT (1695578) - Snapper Front-Tine Tiller, 5.5hp Handle Bar Group Parts Diagram

Front-Tine Tiller, 5.5hp

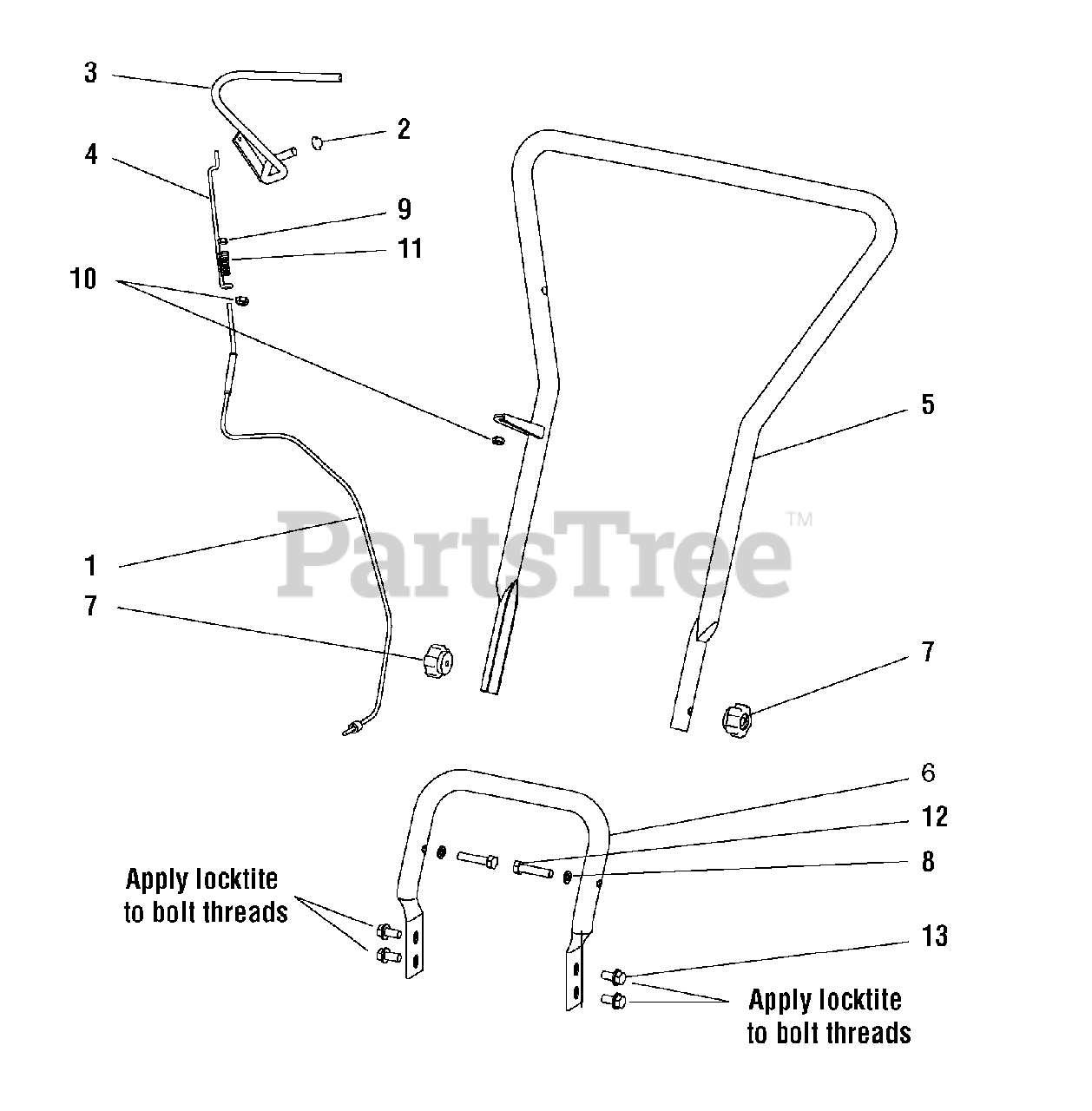

Handle Bar Group Parts Diagram

  • Title

1

Snapper 1738714

CABLE ASSEMBLY, With Ferrel
(Superseded to 1738714YP)

$

$

Not available

2

Snapper 1960093

NUT, Push, 3/8 Dia.
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1738715

LEVER, Drive Safety Control
(Superseded to 1738715YP)

$68.99

$

Usually ships in 2-12 days

0

4

Snapper 1738693

LINK, 5-3/4
(Superseded to 1738693YP)

$32.99

$

Usually ships in 2-12 days

0

5

Snapper 1738694

HANDLE, Top
(Superseded to 1738694YP)

$168.99

$

Usually ships in 2-12 days

0

6

Snapper 1738716

HANDLE. Bottom
(Superseded to 1738716YP)

$131.99

$

Usually ships in 2-12 days

0

7

Snapper 1733098

KNOB, 5-Star, 5/16-18
(Superseded to 1733098SM)

$9.99

$

Usually ships in 2-12 days

0

8

Snapper 1917356

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

Note: (Or 7090187)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1933896

NUT, Hex, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 2820438

NUT, Hex-Jam, 5/16-24
(Superseded to 2820438SM)

$3.49

$

In Stock, only 2 left!

0

11

Snapper 1738712

SPRING, Compression, Forward Arm
(Superseded to 1738712YP)

$

$

Not available

12

Snapper 1922127

BOLT, Hex-Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 1934654

BOLT, Hex-Head, Serated Flange, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0
