5521 RSX (961430024-00) - Husqvarna 21" Walk-Behind Mower (2007-01) Drive Assembly Parts Diagram

21" Walk-Behind Mower

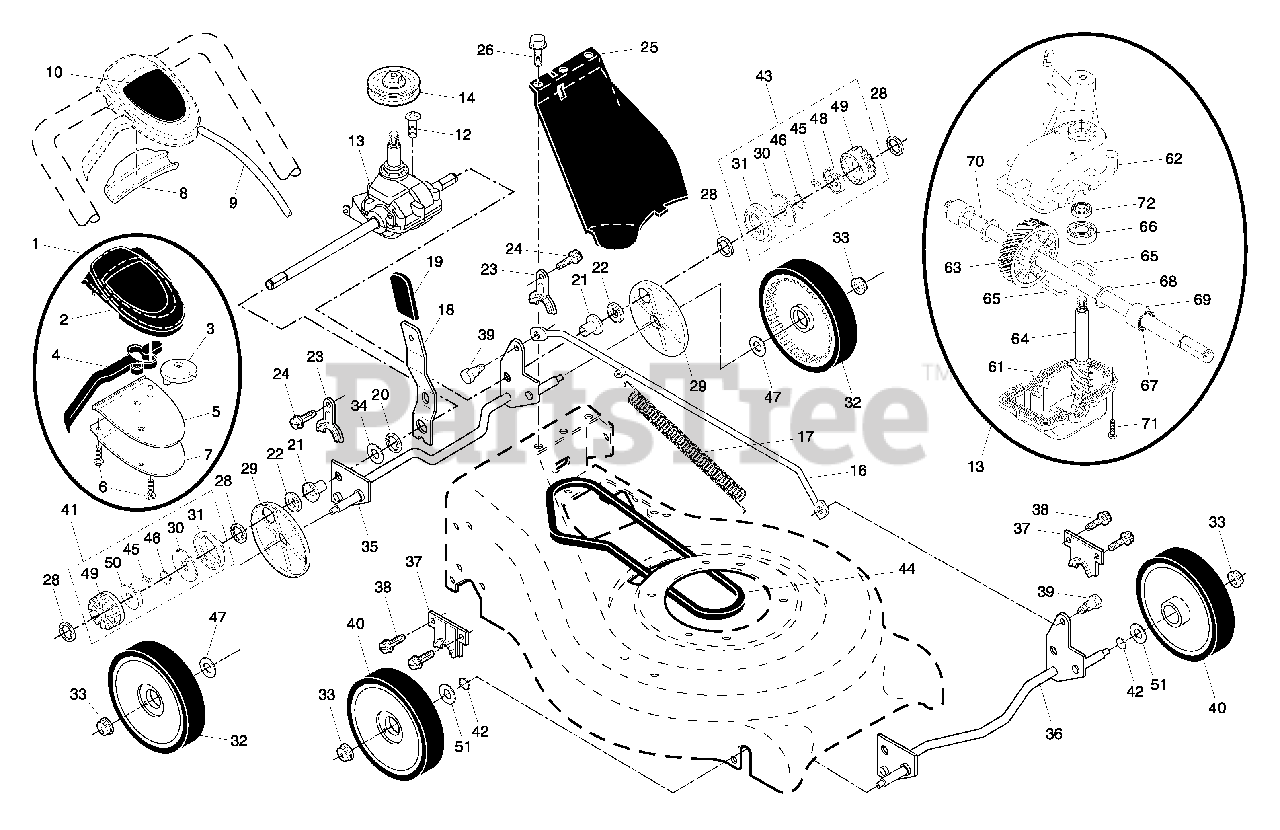

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532196755

Drive Control Assembly, Auto-Walk

$72.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195761

Cover, Top, Auto-Walk Drive Control
(Superseded to 532414555)

$

$

Not available

3

Husqvarna 532187353

Pulley

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190039

Lever, Auto-Walk Drive Control
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532195762

Cover, Bottom, Auto-Walk Drive Control
(Superseded to 532414555)

$

$

Not available

6

Husqvarna 532181698

Screw, Phillips Head #10 x 5/8

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532400723

Plate, Trigger, Auto-Walk Drive Control

$

$

Not available

8

Husqvarna 532186297

Cap, Drive Control, Bottom

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532196784

Cable, Drive Control

$

$

Not available

10

Husqvarna 532189378

Decal, Drive Control

$36.99

$

In Stock, only 1 left!

0

12

Husqvarna 532187653

Screw

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532188645

Gear Case Assembly
(Superseded to 532414282)

Note: (See Breakdown)

$133.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532193443

Pulley, Drive

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532407147

Rod, Connecting

$

$

Not available

17

Husqvarna 532404942

Spring, Extension
(Superseded to 532409616)

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532196162

Spring Selector
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532190622

Knob, Selector Spring
(Superseded to 532189808)

$

$

Not available

20

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532163365

Bearing, Support
(Superseded to 532169920)

$

$

Not available

22

Husqvarna 532169911

Bearing, Ball

$

$

Not available

23

Husqvarna 532164555

Retainer, Drive Assembly, Stamped
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532057808

Screw, Tapping, Hex Head 1/4-20 x 3/4

$

$

Not available

25

Husqvarna 532400783

Cover Drive

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532750634

Screw, Threaded, Rolled #10-25 x 1/2

$6.49

$

In Stock, Qty 5

0

27

Husqvarna 532052160

Washer, Shim (as required)

$

$

Not available

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532189403

Cover, Dust, Wheel
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532184172

Seal, Friction

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532411081

Wheel & Tire Assembly, Rear 9 x 2
(Superseded to 532401274)

$34.99

$

In Stock, only 1 left!

0

33

Husqvarna 532083923

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851226

Washer, Flat

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 532410922

Shaft Assembly, Rear
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532410933

Shaft Assembly, Front
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

Retainer, Front Shaft

$

$

Not available

38

Husqvarna 532163409

Screw #12 x 5/8

$7.49

$

In Stock, Qty 8

0

39

Husqvarna 532407059

Bolt, Shoulder, Semi-Gimlet Point

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532410831

Wheel & Tire Assembly, Front 8 x 2
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

41

Husqvarna 532188330

Pinion Assembly, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

42

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532188331

Pinion Assembly, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

44

Husqvarna 532183688

V-Belt

$

$

Not available

45

Husqvarna 532175098

Pawl

$6.49

$

In Stock, only 2 left!

0

46

Husqvarna 532188291

Spring, Torsion

$4.99

$

In Stock, only 3 left!

0

47

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

48

Husqvarna 532175105

Retainer, Drive, LH

$

$

Not available

49

Husqvarna 532175103

Gear, Pinion

$

$

Not available

50

Husqvarna 532175102

Retainer, Drive, RH

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532088348

Washer, Flat 1/2

$7.49

$

In Stock, Qty 6

0

61

Husqvarna 532187530

Case, Lower

$11.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532187531

Case, Upper

$26.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532187532

Gear, 24 Teeth

$14.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532187533

Shaft, Input

$30.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183505

Wire, Formed

$6.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

68

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532191249

Shaft, Output
(Superseded to 532188645)

$133.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 2 left!

0
