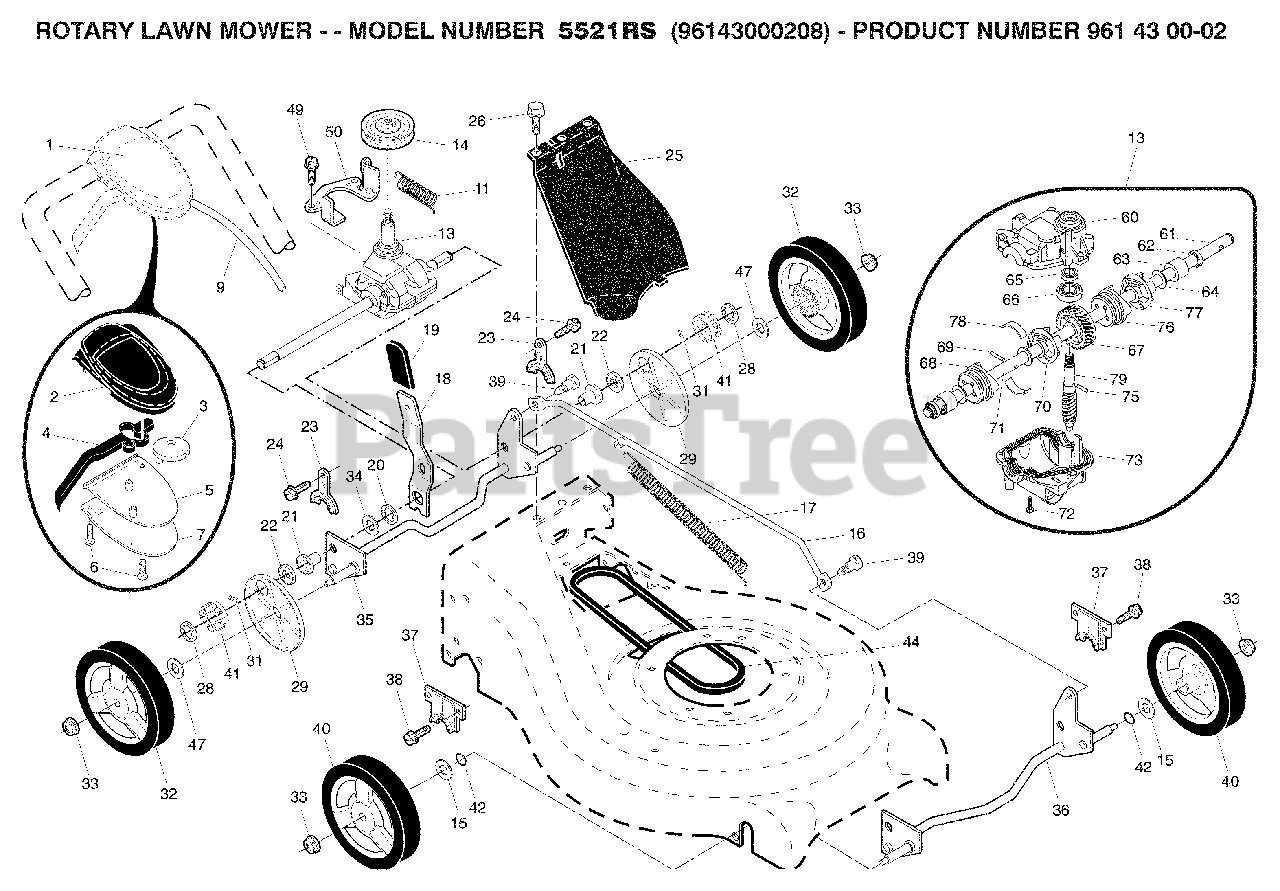

5521 RS (961430002-08) - Husqvarna 21" Walk-Behind Mower (2007-11) Repair Parts Parts Diagram

21" Walk-Behind Mower

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532407344

Drive Control Assembly, Auto-Walk
(Superseded to 532425581)

$

$

Not available

2

Husqvarna 532411673

Cover, Top, Auto-Walk Drive Control
(Superseded to 532406260)

$

$

Not available

3

Husqvarna 532406282

Pulley
(Superseded to 532406262)

$

$

Not available

4

Husqvarna 532190039

Lever, Auto-Walk Drive Control
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532411664

Cover, Bottom, Auto-Walk Drive Control
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

Screw, Phillips Head #10 x 5/8

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532400723

Plate, Trigger, Auto-Walk Drive Control

$

$

Not available

9

Husqvarna 532406258

Cable, Drive Control

$53.99

$

In Stock, only 1 left!

0

11

Husqvarna 532406558

Spring, Return

$8.99

$

In Stock, Qty 7

0

13

Husqvarna 532404839

Gear Case Assembly

Note: (See Breakdown)

$103.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532193443

Pulley, Drive

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088348

Washer, Flat

$7.49

$

In Stock, Qty 6

0

16

Husqvarna 532407147

Rod, Connecting

$

$

Not available

17

Husqvarna 532409616

Spring, Extension

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532196162

Spring Selector
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532190622

Knob, Selector Spring
(Superseded to 532189808)

$

$

Not available

20

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532412450

Bearing, Support
(Superseded to 532404838)

$

$

Not available

22

Husqvarna 532191039

Bearing, Ball
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

23

Husqvarna 532164555

Retainer, Drive Assembly, Stamped
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532057808

Screw, Tapping, Hex Head 1/4-20 x 3/4

$

$

Not available

25

Husqvarna 532400783

Cover Drive

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532750634

Screw, Threaded, Rolled #10-25 x 1/2

$6.49

$

In Stock, Qty 5

0

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532189403

Cover, Dust, Wheel
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

31

Husqvarna 532404845

Seal, Friction

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 532413105

Wheel & Tire Assembly, Rear
(Superseded to 581685101)

$28.99

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851226

Washer

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 532410922

Shaft Assembly, Rear
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532410933

Shaft Assembly, Front
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

Retainer, Front Shaft

$

$

Not available

38

Husqvarna 532163409

Screw #12 x 5/8

$7.49

$

In Stock, Qty 6

0

39

Husqvarna 532407059

Bolt, Shoulder, Semi-Gimlet Point

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532410831

Wheel & Tire Assembly, Front 8 x 1-3/4
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

41

Husqvarna 532404835

Pinion

$6.99

$

In Stock, Qty 9

0

42

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532406580

V-Belt

$30.99

$

In Stock, only 3 left!

0

47

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532163409

Screw, Hi-Lo Thread

$7.49

$

In Stock, Qty 6

0

50

Husqvarna 532413104

Belt Keeper
(Superseded to 532404832)

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532412736

Case, Upper

$20.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532412757

Shaft, Output, Long

$30.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

63

Husqvarna 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532183514

Seal, Worm Shaft

$7.99

$

In Stock, only 2 left!

0

66

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532412742

Gear, 28 Teeth

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532412739

Fixed Dog Clutch, LH

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532412741

Pin, Output Shaft

$9.49

$

In Stock, only 4 left!

0

70

Husqvarna 532412740

Movable Dog Clutch, LH

$5.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532412756

Shaft, Output, Short

$24.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532183513

Screw, Case

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532412747

Case, Lower

$20.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532412746

Pin, Worm Shaft

$9.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532412743

Movable Dog Clutch, RH

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532412744

Fixed Dog Clutch, RH

$4.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532410731

Spring, Leaf

$4.99

$

In Stock, Qty 8

0

79

Husqvarna 532412737

Shaft, Worm

$14.99

$

Usually ships in 3-10 days

0
