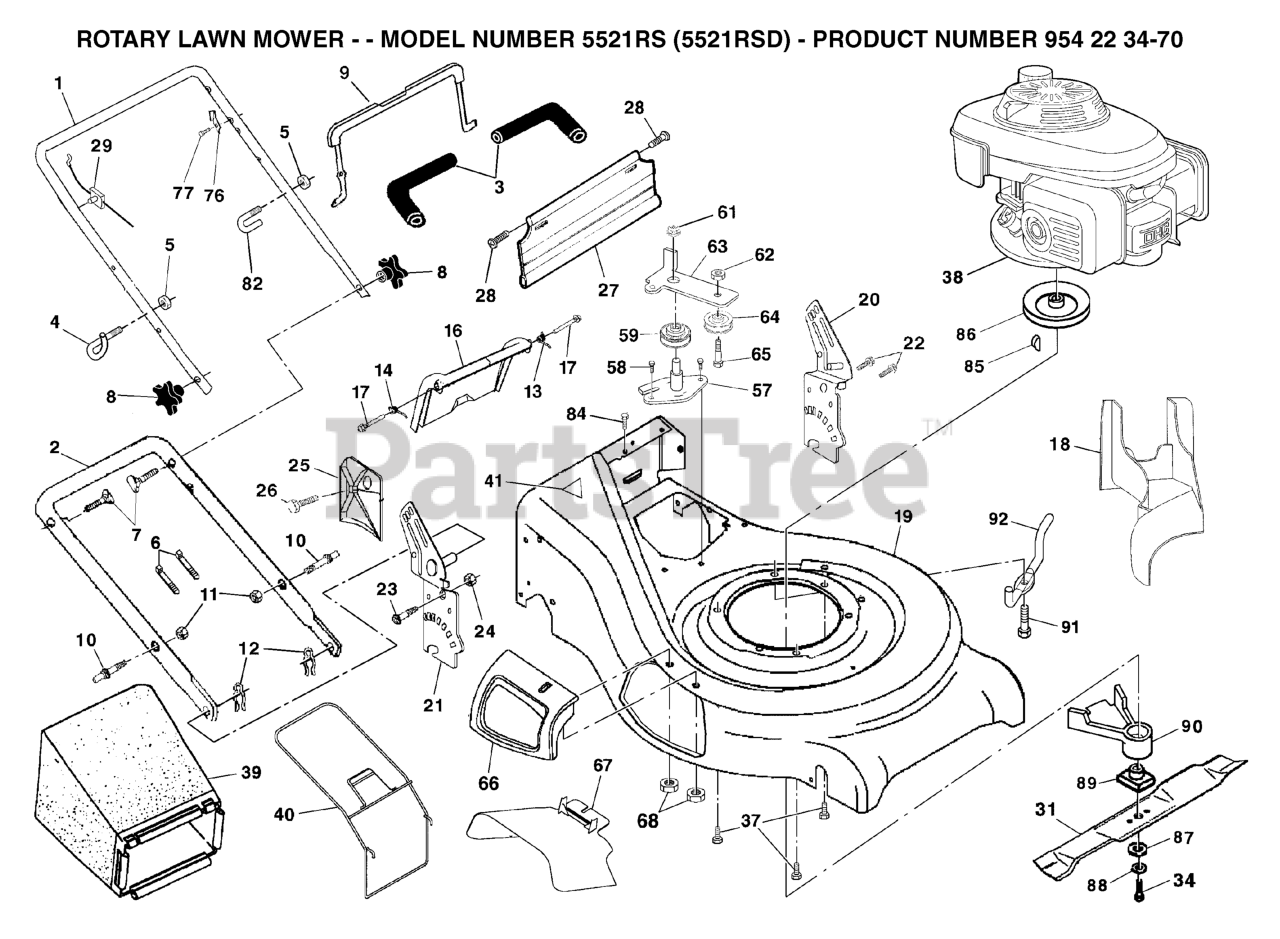

5521 RS (954223470) - Husqvarna 21" Walk-Behind Mower (2004-07) REPAIR PARTS 3 Parts Diagram

21" Walk-Behind Mower

REPAIR PARTS 3 Parts Diagram

  • Title
7

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

$

$

Not available

62

Husqvarna 532155552

LOCKNUT
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

- -

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532188817

GRASS CATCHER FRAME
(Superseded to 532194644)

$60.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

41

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532188040

SCREW
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 532185898

IDLER ARM
(Superseded to 532179719)

$

$

Not available

16

Husqvarna 532190574

DOOR.REAR.PLASTIC.21.RWGD.BLAC

$44.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532190620

BAIL, FLAT AUTO WALK
(Superseded to 532187940)

$

$

Not available

85

Husqvarna 532187723

HI-PRO KEY

$

$

Not available

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532166043

IDLER PULLEY

$31.99

$

In Stock, only 1 left!

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532160829

SHOULDER BOLT

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 532185899

BRACKET ASSEMBLY
(Superseded to 532193315)

$6.99

$

In Stock, Qty 5

0

92

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

13

Husqvarna 532186052

SPRING.RH.REAR.DOOR.21.RWGD

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532186053

SPRING.LH.REAR.DOOR.21.RWGD

$10.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 3 left!

0

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532182755

ENGINE ZONE CONTROL CABLE
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

59

Husqvarna 532184543

PULLEY ASSY
(Superseded to 532195326)

$34.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187535

PLUG, MULCHER
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 532174205

HANDLE, LOWER
(Superseded to 532197202)

$

$

Not available

76

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

$

$

Not available

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

61

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

$

$

Not available

67

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

86

Husqvarna 532184941

PULLEY.ENG.25MMM

$

$

Not available

31

Husqvarna 532189028

BLADE.21.PUSH/RWGD/FWG

$22.99

$

In Stock, Qty 6

0

66

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

8

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$7.49

$

In Stock, only 1 left!

0

89

Husqvarna 532184590

BLADE ADAPTER
(Superseded to 532418373)

$11.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 5

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532188786

DEBRIS SHEILD

$7.99

$

Usually ships in 3-10 days

0
