5521 RS (954223470) - Husqvarna 21" Walk-Behind Mower (2003-09) GEAR CASE Parts Diagram

21" Walk-Behind Mower

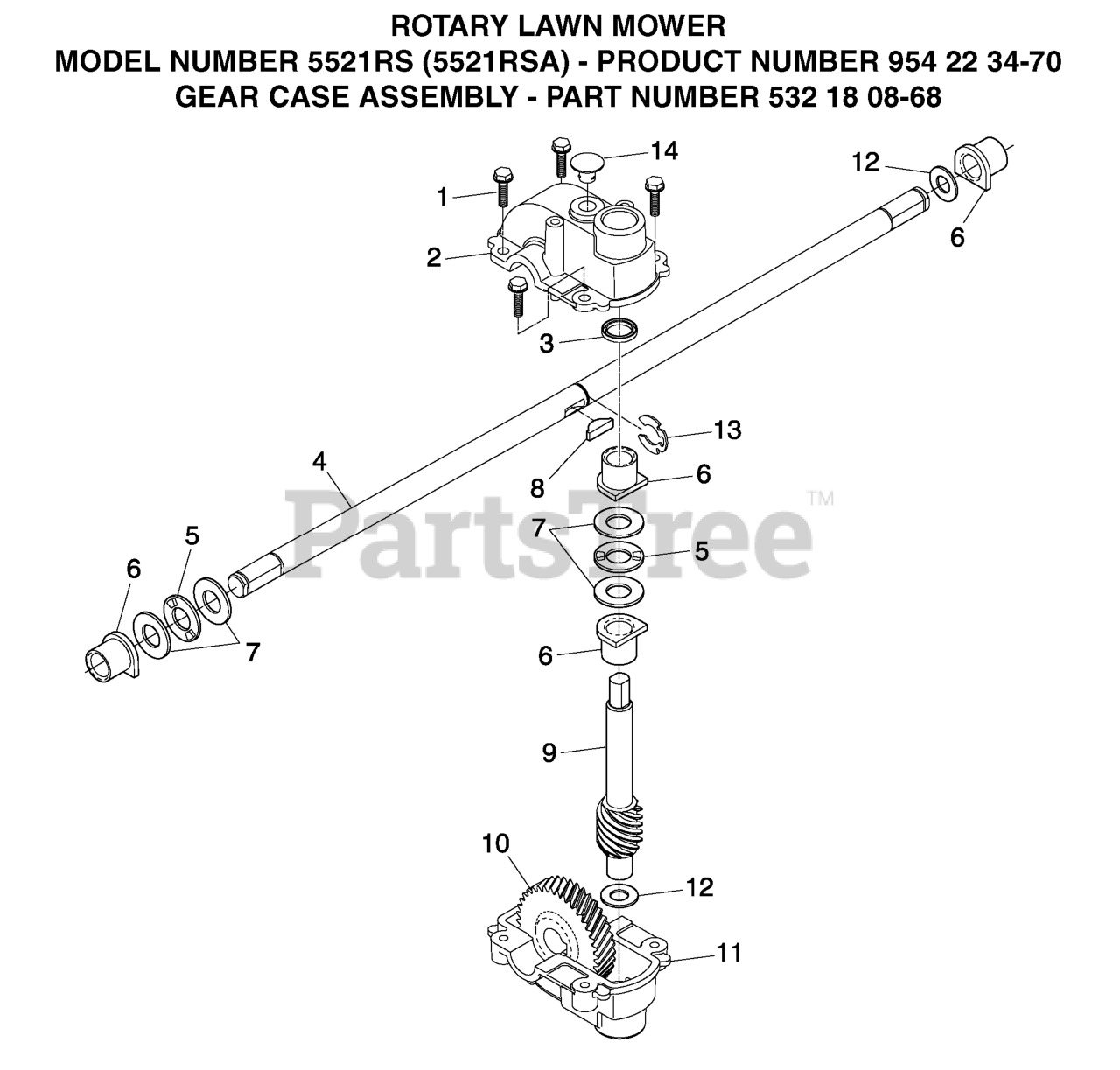

GEAR CASE Parts Diagram

  • Title

- -

Husqvarna 532750369

GREASE
(Superseded to 585517301)

$

$

Not available

10

Husqvarna 532160679

GEAR, HELICAL

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532160673

GEAR CASE, LOWER
(Superseded to 532160676)

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850848

HI PRO KEY

$6.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532187540

KIT.GEARCASE TRANSMISSION

$

$

Not available

6

Husqvarna 532077881

BEARING

$30.99

$

Usually ships in 3-10 days

0

13

Husqvarna 812000039

KLIP RING

$6.49

$

In Stock, Qty 9

0

14

Husqvarna 532086447

PLUG.AUGER.GEAR.BOX.SNOW

$

$

Not available

3

Husqvarna 532057072

SEAL

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532160678

SHAFT GEAR WORM

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532160818

BEARING, NEEDLE, THRUST

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 12

0

7

Husqvarna 532160817

WASHER, THRUST

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532160672

GEAR CASE, UPPER

$

$

Not available

1

Husqvarna 817541011

Screw, Hex Washer Head #10-24 x .668

$

$

Not available

4

Husqvarna 532179754

SHAFT.AXLE
(Superseded to 532414282)

$133.99

$

Usually ships in 3-10 days

0
