5521 RS (954223470-D) - Husqvarna 21" Walk-Behind Mower (2004-07) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

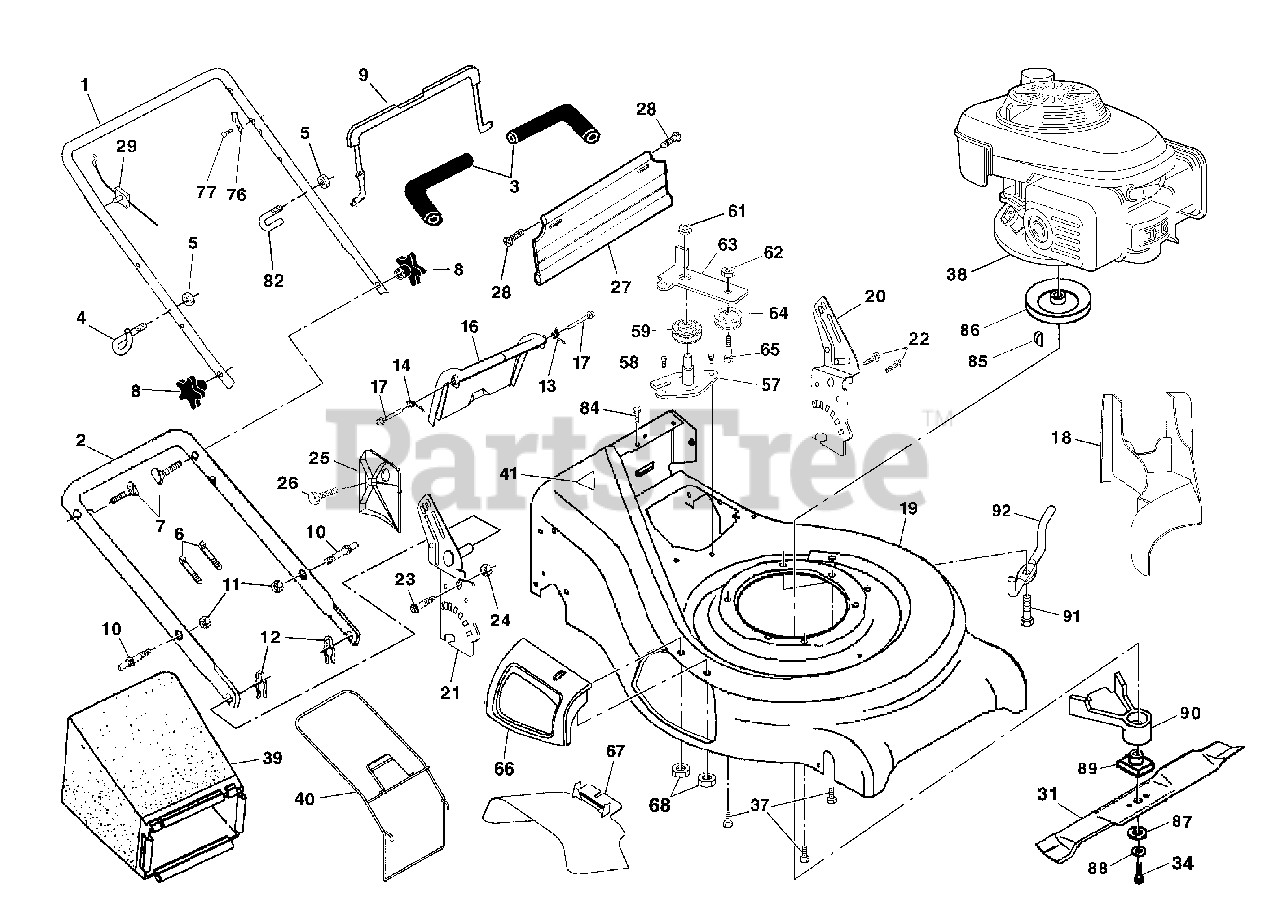

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532189740

Handle, Upper

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532174205

Handle, Lower
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 532182748

Grip, Handle, Foam, Smooth

$

$

Not available

4

Husqvarna 532179585

Guide, Rope, Side
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

Nut, Hex Lockwasher Insert 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

Wire, Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532131959

Bolt, Handle 5/16-18 x 1.75
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532185588

Knob, Handle

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532190620

Bail, Flat, Auto-Walk, Orange
(Superseded to 532187940)

$

$

Not available

10

Husqvarna 532188821

Bolt, Carriage

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 873930500

Nut, Hex, Centerlock 5/16-18 UNC

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 532051793

Cotter, Hairpin

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532186052

Spring, Rear Door, LH

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532186053

Spring, Rear Door, RH

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532190574

Rear Door Assembly

$44.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184193

Bolt, Rear Door

$

$

Not available

18

Husqvarna 532187535

Plug, Mulcher
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532185601

Kit, Housing
(Superseded to 532407535)

$

$

Not available

20

Husqvarna 532190563

Handle Bracket Assembly, LH
(Superseded to 532193917)

$

$

Not available

21

Husqvarna 532190564

Handle Bracket Assembly, RH
(Superseded to 532194031)

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

Screw, Hex Washer Head
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

Bolt, Hex Head 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

Nut, Hex, with Lock Washer Insert 5/16-18

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

Baffle, Side

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

Screw 12 x 5/8

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532188986

Skirt, Rear
(Superseded to 532408442)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1.25

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 532182755

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

31

Husqvarna 532189028

Blade, 21"

$22.99

$

In Stock, Qty 6

0

34

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1.38
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532150406

Bolt, Engine

$7.49

$

Usually ships in 3-10 days

0

38

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

39

Husqvarna 532187240

Grassbag

$56.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532188817

Frame, Grassbag
(Superseded to 532194644)

$60.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532185899

Bracket Assembly
(Superseded to 532193315)

$6.99

$

In Stock, Qty 5

0

58

Husqvarna 532057808

Screw

$

$

Not available

59

Husqvarna 532184543

Pulley Assembly, V-Groove
(Superseded to 532195326)

$34.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532145212

Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532155552

Locknut
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

63

Husqvarna 532185898

Idler Arm
(Superseded to 532179719)

$

$

Not available

64

Husqvarna 532166043

Idler Pulley

$31.99

$

In Stock, only 2 left!

0

65

Husqvarna 532160829

Shoulder Bolt

$7.49

$

In Stock, only 2 left!

0

66

Husqvarna 532190510

Mulcher Door Assembly
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

67

Husqvarna 532190512

Deflector, Discharge
(Superseded to 532169699)

$

$

Not available

68

Husqvarna 532088349

Nut, Hex

$7.49

$

In Stock, only 1 left!

0

76

Husqvarna 532125162

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

77

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

82

Husqvarna 532182003

Clip

$6.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532054583

Screw

$

$

Not available

85

Husqvarna 532187723

Hi-Pro Key

$

$

Not available

86

Husqvarna 532184941

Pulley, Engine

$

$

Not available

87

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 4 left!

0

88

Husqvarna 532850263

Lockwasher, Helical Spring 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

89

Husqvarna 532184590

Adapter, Blade
(Superseded to 532418373)

$11.99

$

In Stock, Qty 20+

0

90

Husqvarna 532188786

Debris Shield

$7.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532188040

Screw
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

92

Husqvarna 532190939

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532191380

Owner's Manual, English / French

$

$

Currently unavailable
