5521 RS (954223470-B) - Husqvarna 21" Walk-Behind Mower (2004-07) Gear Case Assembly Parts Diagram

21" Walk-Behind Mower

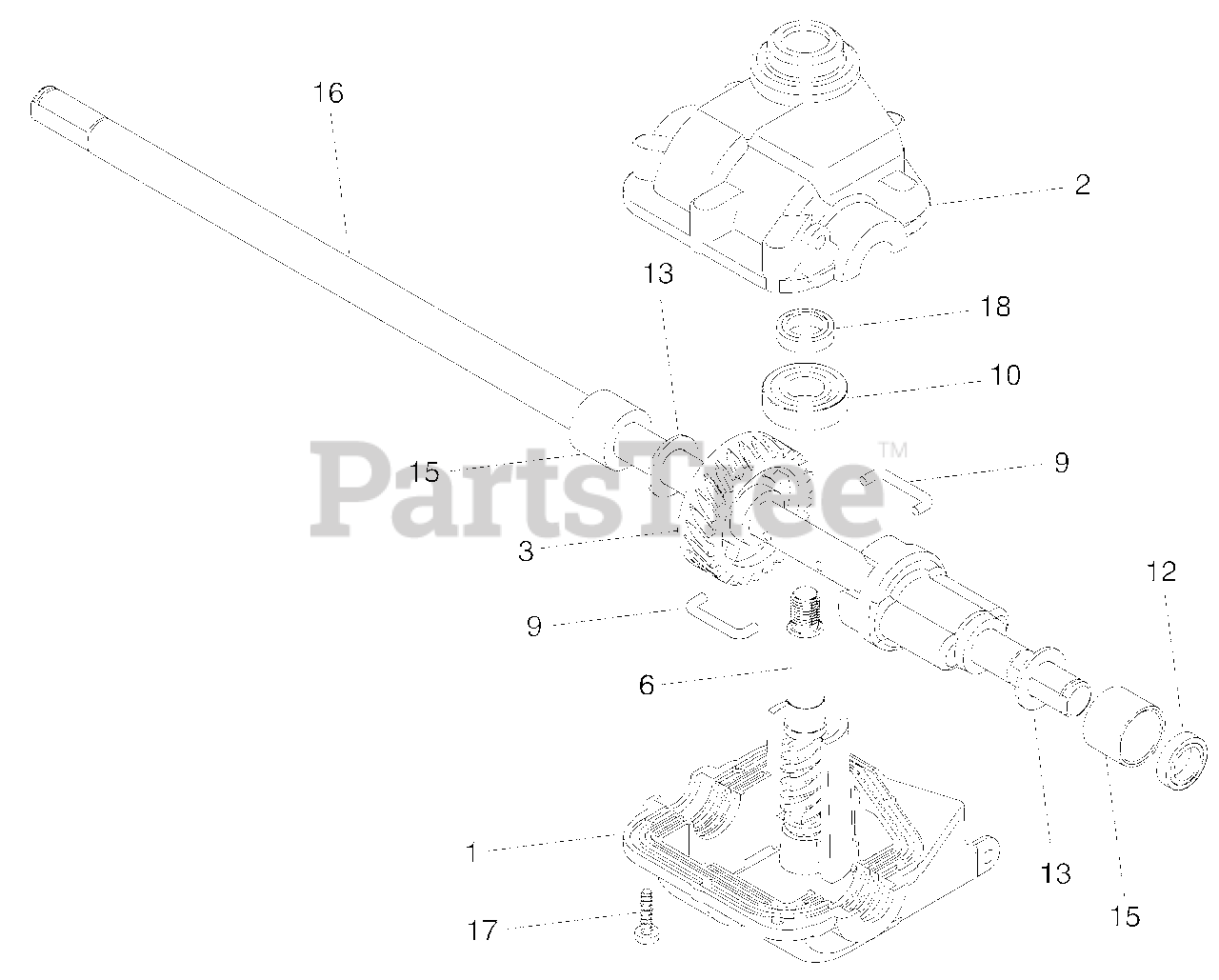

Gear Case Assembly Parts Diagram

  • Title

1

Husqvarna 532187530

Case, Lower

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532187531

Case, Upper

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$26.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187532

Gear, 24 Teeth

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532187533

Shaft, Input

$30.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532183505

Wire, Formed

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

13

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532187534

Shaft, Output
(Superseded to 532191249)

$133.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 2 left!

0

Husqvarna 532187213

Gear Case Assembly
(Superseded to 532414282)

$133.99

$

Usually ships in 3-10 days

0
