5521 RS (954223470-A) - Husqvarna 21" Walk-Behind Mower (2003-09) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

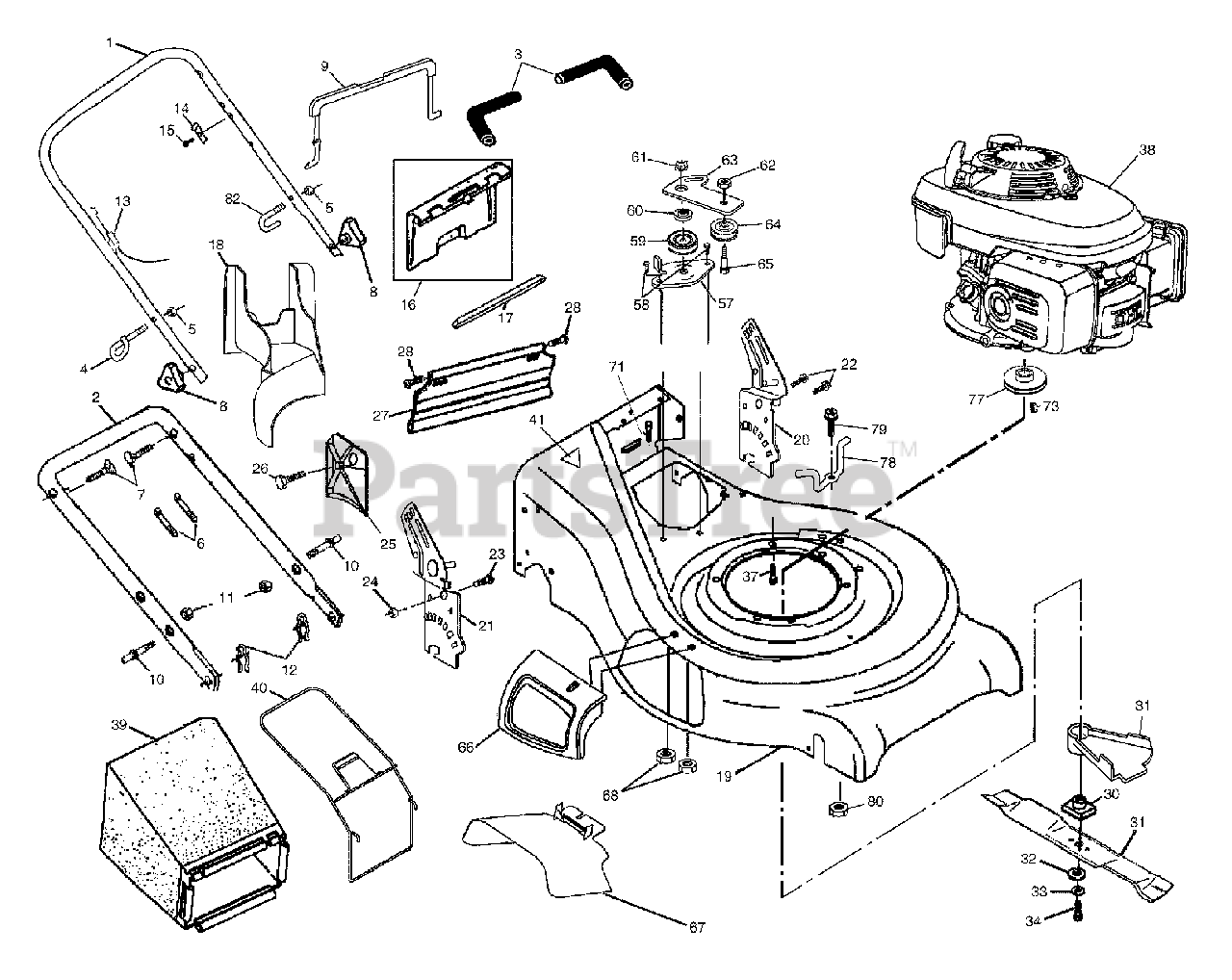

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532185612

Handle, Upper

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532174205

Handle, Lower
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 532182748

Grip, Handle, Foam, Smooth

$

$

Not available

4

Husqvarna 532179585

Guide, Rope, Side
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

Nut, Hex Lockwasher Insert 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

Wire, Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532131959

Bolt, Handle 5/16-18 x 1.75
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532185588

Knob, Handle

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532185599

Bail, Flat, Auto-Walk, Orange
(Superseded to 532187940)

$

$

Not available

10

Husqvarna 532161551

Bolt, Carriage
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 873990500

Nut, Hex Lockwasher Insert 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

Cotter, Hairpin

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532182755

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

14

Husqvarna 532125162

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

16

Husqvarna 532162085

Kit, Door Rear

$

$

Not available

17

Husqvarna 532179885

Seal, Door
(Superseded to 532189059)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532182778

Plug, Mulcher
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532185601

Kit, Housing
(Superseded to 532407535)

$

$

Not available

20

Husqvarna 532186004

Handle Bracket Assembly, LH
(Superseded to 532181021)

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532186005

Handle Bracket Assembly, RH
(Superseded to 532181020)

$21.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

Screw, Hex Washer Head
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

Bolt, Hex Head 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532063124

Nut, Hex, with Lock Washer Insert 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

Baffle, Side

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

Screw 12 x 5/8

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532161550

Skirt
(Superseded to 532408442)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1.25

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 532851514

Adapter, Blade, with Key

$17.99

$

In Stock, Qty 20+

0

31

Husqvarna 532175064

Blade, 21"
(Superseded to 532189028)

$22.99

$

In Stock, Qty 5

0

32

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 532850263

Lockwasher, Helical Spring 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1.38
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532150406

Bolt, Engine

$7.49

$

Usually ships in 3-10 days

0

38

Engine, Honda, Model Number GCV160

Note: (Order parts from

$

$

Not available

39

Husqvarna 532185596

Grass Catcher Bag
(Superseded to 581002901)

$47.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532180026

Grass Catcher Frame

$

$

Not available

41

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532185899

Bracket Assembly
(Superseded to 532193315)

$6.99

$

In Stock, Qty 5

0

58

Husqvarna 532057808

Screw

$

$

Not available

59

Husqvarna 532166042

Pulley, V-Groove

$26.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532166050

Spacer, Idler Arm

$9.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532145212

Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532155552

Locknut
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

63

Husqvarna 532185898

Idler Arm
(Superseded to 532179719)

$

$

Not available

64

Husqvarna 532166043

Idler Pulley

$31.99

$

In Stock, only 1 left!

0

65

Husqvarna 532160829

Shoulder Bolt

$7.49

$

In Stock, only 2 left!

0

66

Husqvarna 532185597

Door Assembly
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

67

Husqvarna 532185598

Deflector, Door
(Superseded to 532169699)

$

$

Not available

68

Husqvarna 532088349

Nut

$7.49

$

In Stock, only 1 left!

0

71

Husqvarna 532054583

Screw

$

$

Not available

73

Husqvarna 532087677

Hi-Pro Key

$

$

Not available

77

Husqvarna 532084596

Pulley

$34.99

$

In Stock, only 2 left!

0

78

Husqvarna 532182001

Belt Keeper
(Superseded to 532188244)

$15.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532182227

Screw

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532182228

Nut, Hex

$5.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532182002

Debris Shield

$12.99

$

In Stock, only 1 left!

0

82

Husqvarna 532182003

Clip

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (Not Shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532185594

Owner's Manual, English/French

$

$

Not available
