Husqvarna 5521 P (961330018-04) - Husqvarna 21" Walk-Behind Mower (2015-01) FRAME ENGINE Parts Lookup with Diagrams

1

Husqvarna 587478302

BAIL.ARM.ASSY:STRAIGHT OM

$31.99

$

In Stock, Qty 10

2

Husqvarna 532427971

HANDLE.UP.DST.SS/VS.FG/RGD.CRE

$45.99

$

Usually ships in 3-10 days

3

Husqvarna 580638603

HANDLE.LOWER.DOME.BT.GREY

$

Not available 

4

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

Not available 

5

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 20+

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

7

Husqvarna 532066426

TIE GUIDE

(Superseded to 532124756) 

$9.49

$

Usually ships in 3-10 days

8

Husqvarna 874780512

BOLT

(Superseded to 596030501) 

$4.99

$

In Stock, Qty 20+

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$10.99

$

Usually ships in 3-10 days

10

Husqvarna 581825801

DOOR.MULCH.21".REAR.PUSH.GRAY

$13.99

$

Usually ships in 3-10 days

11

Husqvarna 532408047

CONTROL.ZONE.ASM

$20.99

$

In Stock, Qty 20+

12

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 19

13

Husqvarna 532430034

BRACKET.UPSTOP.RT

$

Not available 

14

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 20+

15

Husqvarna 532051793

HAIRPIN COTTER

$

Not available 

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH

(Superseded to 532401174) 

Note: LH

$

Not available 

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH

(Superseded to 532401175) 

Note: RH

$10.99

$

In Stock, Qty 20+

21

Husqvarna 532416860

SKIRT.REAR.21.PUSH

$13.99

$

In Stock, Qty 20+

22

Husqvarna 532406428

SELECTOR SPRING, FRONT

(Superseded to 532401621) 

Note: FRONT

$5.99

$

In Stock, Qty 20+

23

Husqvarna 581425601

DOOR.REAR.21.DOMED.498

(Superseded to 532401814) 

$13.99

$

Usually ships in 3-10 days

25

Husqvarna 580915603

BRACKET.ASM.HAND.HW.21.LT.GREY

Note: LH

$45.99

$

Usually ships in 3-10 days

26

Husqvarna 580915703

BRACKET.ASM.HAND.HW.21.RT.498

Note: RH

$

Not available 

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT

(Superseded to 532407494) 

Note: FRONT

$4.99

$

In Stock, Qty 9

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER(2 2)3 2

$6.49

$

In Stock, Qty 20+

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY

(Superseded to 589482402) 

$13.99

$

In Stock, Qty 20+

32

Husqvarna 532441559

SPRING.SEL.22.ECON.HI-WHL.RATO

Note: REAR

$

Not available 

33

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

34

Husqvarna 532410600

AXLE ARM ASSY REAR LH

(Superseded to 532401176) 

Note: LH

$6.99

$

In Stock, Qty 20+

35

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

(Superseded to 585802801) 

$5.99

$

In Stock, only 3 left!

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18

(Superseded to 596203801) 

$4.99

$

In Stock, Qty 20+

37

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT

(Superseded to 532401273) 

$37.99

$

In Stock, Qty 13

39

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$44.99

$

Usually ships in 3-10 days

41

Husqvarna 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, Qty 13

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 3 left!

44

Husqvarna 532184193

BOLT

$

Not available 

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 12

46

Husqvarna 532404763

DANGER DECAL

(Superseded to 581579101) 

$7.49

$

Usually ships in 3-10 days

47

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 20+

48

Husqvarna 532410601

AXLE ARM ASSY REAR RH

(Superseded to 532401177) 

Note: RH

$

Not available 

49

Husqvarna 585911001

WHEEL.12X1.75.CF H3SPK.RAD3.BB

$31.99

$

In Stock, Qty 20+

50

Husqvarna 581002112

GBAG.2323029ER.HU.VENT.GRY.SIL

(Superseded to 581002101) 

$93.99

$

In Stock, Qty 20+

51

Husqvarna 532147286

ROD.HINGE.COMBI-C

$9.49

$

In Stock, Qty 8

52

Husqvarna 532441950

HOUSING.21.M/C.DOME.ORANGE

(Superseded to 581708322) 

Note: . 46

$

Not available 

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8

(Superseded to 532435345) 

$4.99

$

In Stock, Qty 20+

54

Husqvarna 532850263

LOCKWASHER

(Superseded to 810040600) 

$4.99

$

In Stock, Qty 20+

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

56

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD

(Superseded to 594893001) 

$20.99

$

In Stock, Qty 20+

57

Husqvarna 581547901

ADAPTOR.BLADE.7/8

$20.99

$

In Stock, Qty 20+

58

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 1 left!

59

000000000

Note: B S 9P702-0162-F1 FOR SERVICE PARTS 1-800-233-3723

$

Not available 

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)

(Superseded to 532409149) 

$4.99

$

In Stock, Qty 20+

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20

(Superseded to 582478602) 

$2.49

$

In Stock, Qty 20+

65

Husqvarna 532088348

WASHER PM

$7.49

$

In Stock, Qty 14

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, Qty 20+

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$

Not available 

76

Husqvarna 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$13.99

$

Usually ships in 3-10 days

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

83

Husqvarna 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

84

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

87

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

88

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 13

89

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18

(Superseded to 873680500) 

$3.99

$

Usually ships in 3-10 days

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)

(Superseded to 581579101) 

Note: NOT SHOWN

$7.49

$

Usually ships in 3-10 days

Husqvarna 581276301

BAG.OF.PARTS.21 DOME.PUSH

Note: NOT SHOWN. 88 89

$3.49

$

Usually ships in 3-10 days

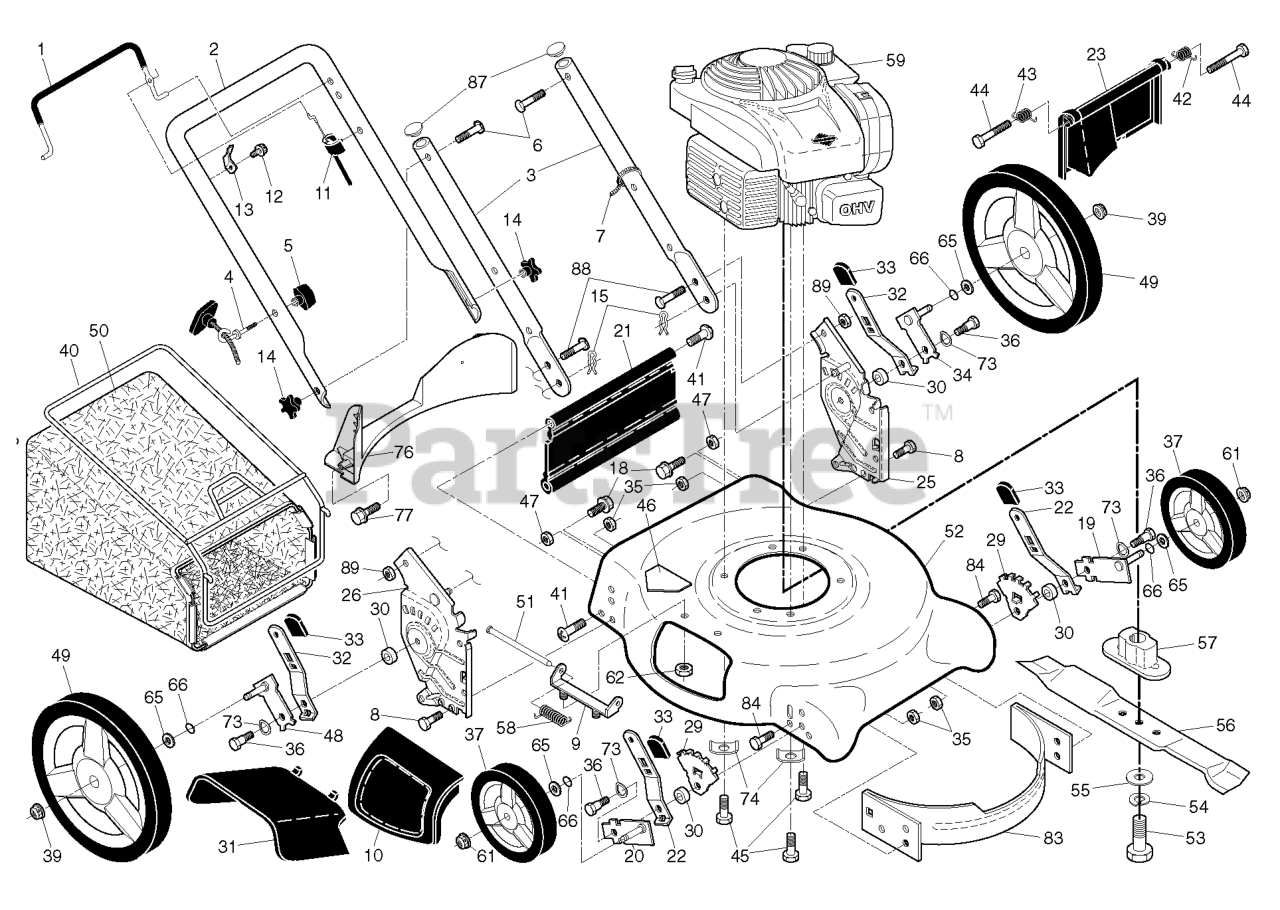

5521 P (961330018-04) - Husqvarna 21" Walk-Behind Mower (2015-01) FRAME ENGINE Parts Diagram

FRAME ENGINE Parts Diagram
