5521 CM (961330003-03) - Husqvarna 21" Walk-Behind Mower (2007-04) Handle And Deck Assembly Parts Diagram

21" Walk-Behind Mower

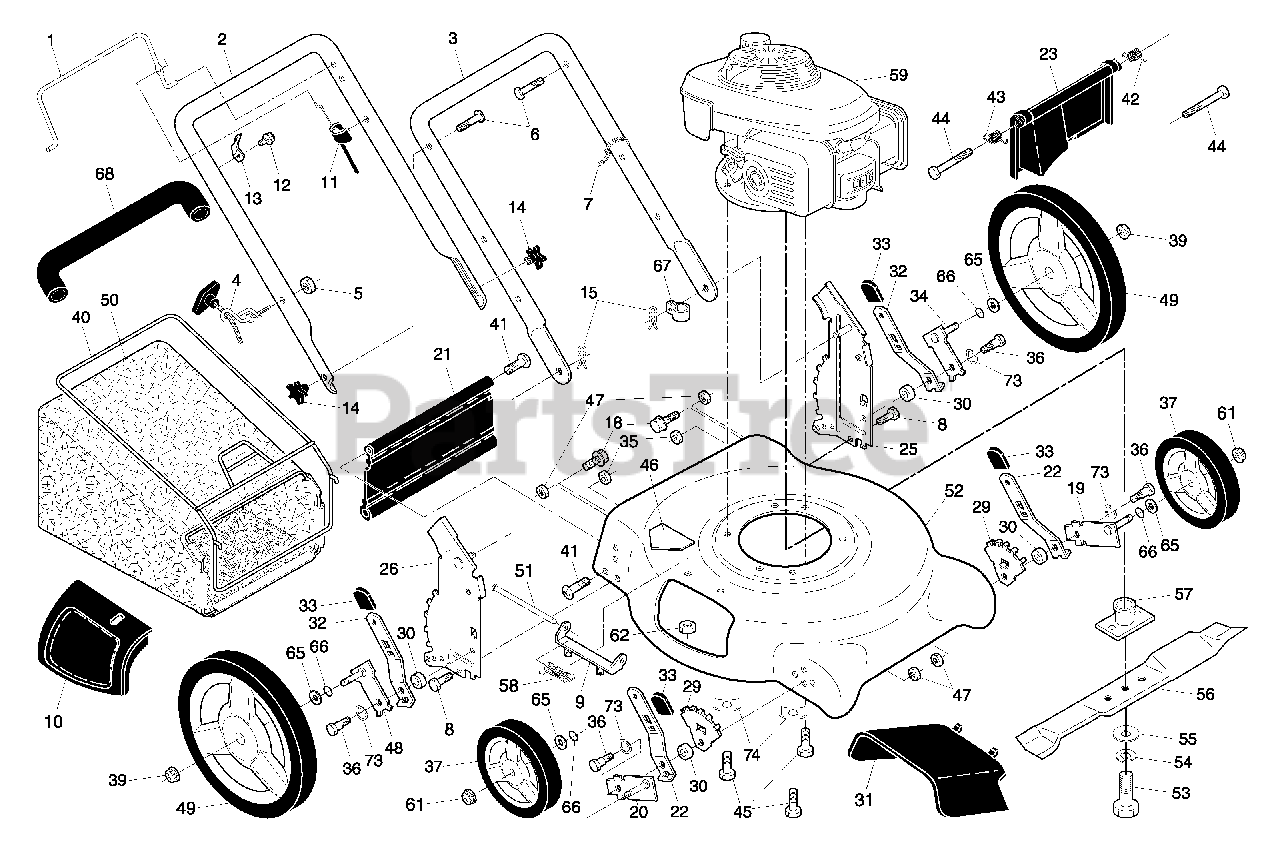

Handle And Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532402949

Control Bar

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532197808

Upper Handle

Note: (Includes Foam Grip)

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174110

Lower Handle
(Superseded to 532174291)

$

$

Not available

4

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

Locknut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532191574

Handle Bolt

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 874780512

Hex Bolt 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532154132

Hinge Bracket Assembly

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 532185589

Mulcher Door
(Superseded to 581825801)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532176556

Engine Zone Control Cable

$22.99

$

In Stock, only 4 left!

0

12

Husqvarna 532750634

Hex Washer Head Screw #10-24 x 1/2

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 532125203

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 532185588

Handle Knob

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

Screw 1/4-20 x 3/8

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532406689

Axle Arm Assembly, Front, LH
(Superseded to 532401174)

$

$

Not available

20

Husqvarna 532406690

Axle Arm Assembly, Front, RH
(Superseded to 532401175)

$6.99

$

In Stock, only 3 left!

0

21

Husqvarna 532189008

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532406428

Selector Spring, Front
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

23

Husqvarna 532410603

Rear Door Assembly
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532410596

Handle Bracket Assembly, LH
(Superseded to 532400627)

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532410597

Handle Bracket Assembly, RH
(Superseded to 580915704)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532410594

Wheel Adjusting Bracket, Front
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532401629

Spacer

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 532185595

Discharge Deflector
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

32

Husqvarna 532410595

Selector Spring, Rear
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

34

Husqvarna 532410600

Axle Arm Assembly, Rear, LH
(Superseded to 532401176)

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532751153

Nut, Hex

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 532401638

Shoulder Bolt 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 532410831

Wheel & Tire Assembly, Front 8 x 1-3/4
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

39

Husqvarna 532145212

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532401808

Frame, Grassbag
(Superseded to 532411949)

$

$

Not available

41

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 532405421

Spring, Rear Door, LH

$4.99

$

In Stock, only 3 left!

0

43

Husqvarna 532405423

Spring, Rear Door, RH

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 532184193

Bolt, Rear Door

$

$

Not available

45

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532404763

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532166785

Locknut, Hex 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

48

Husqvarna 532410601

Axle Arm Assembly, Rear, RH
(Superseded to 532401177)

$

$

Not available

49

Husqvarna 532410815

Wheel & Tire Assembly, Rear 12 x 1-3/4
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

50

Husqvarna 532401191

Grassbag

$72.99

$

In Stock, Qty 10

0

51

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 9

0

52

Husqvarna 532410637

Kit, Lawn Mower Housing Assembly
(Superseded to 532443257)

Note: (Includes Key Numbers 17, 18 and 46)

$218.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Lockwasher
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 532406712

21" Blade
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

57

Husqvarna 532193707

Blade Adapter
(Superseded to 532420097)

$11.99

$

In Stock, Qty 20+

0

58

Husqvarna 532152124

Spring, Torsion

$7.49

$

In Stock, only 3 left!

0

59

Engine, Honda

Note: Model Number GCV160 (Order parts from engine manufacturer)

$

$

Not available

61

Husqvarna 532409148

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 873800400

Nut, Hex, Nylock 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

65

Husqvarna 532088348

Washer, Flat

$7.49

$

In Stock, Qty 6

0

66

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

68

Husqvarna 532164265

Grip, Foam
(Superseded to 585161003)

$

$

Not available

73

Husqvarna 532401630

Washer, Flat

$4.99

$

In Stock, only 3 left!

0

74

Husqvarna 532125078

Washer, Special, Engine, Zinc-Plated

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 532404764

Warning Decal
(Superseded to 581579101)

Note: (not shown)

$7.49

$

Usually ships in 3-10 days

0

Husqvarna 532413228

Owner's Manual, English / French

$

$

Currently unavailable
