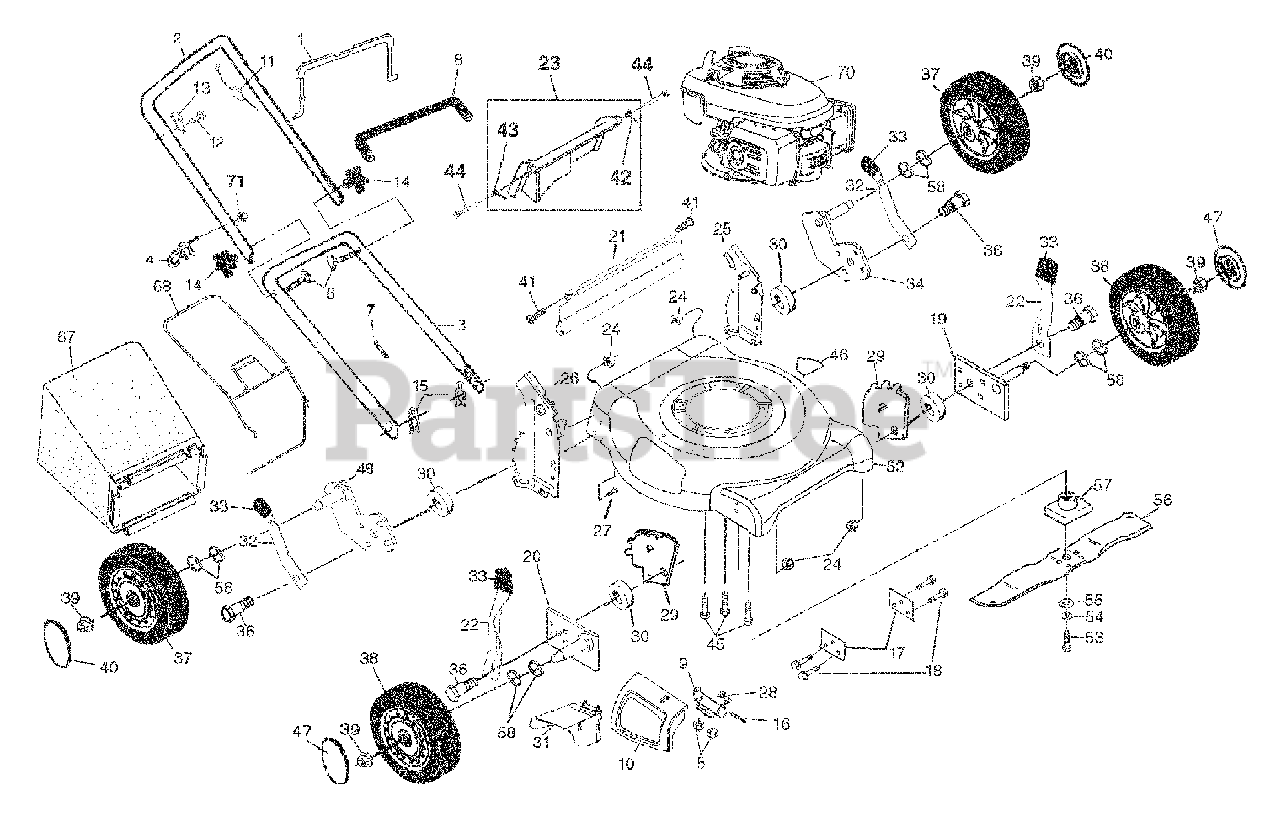

5521 CM (954223487-A) - Husqvarna 21" Walk-Behind Mower (2002-11) General Assembly Parts Diagram

21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 532176555

Control Bar

$9.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532173658

Upper Handle, with Grip

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174110

Lower Handle
(Superseded to 532174291)

$

$

Not available

4

Husqvarna 532179585

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532164265

Grip, Foam
(Superseded to 585161003)

$

$

Not available

9

Husqvarna 532154132

Hinge Bracket

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 532185589

Mulcher Door
(Superseded to 581825801)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532176556

Engine Zone Control Cable

$22.99

$

In Stock, only 4 left!

0

12

Husqvarna 532750634

Hex Washer Head Screw

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 532125203

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 532185588

Handle Knob

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 9

0

17

Husqvarna 532174112

Support Bracket
(Superseded to 532165946)

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

Screw

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532168605

Axle Arm Assembly - LF
(Superseded to 532186577)

$

$

Not available

20

Husqvarna 532168604

Axle Arm Assembly - RF
(Superseded to 532186578)

$

$

Not available

21

Husqvarna 532165858

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532168599

Selector Spring - Front
(Superseded to 532168360)

$

$

Not available

23

Husqvarna 532166875

Rear Door Assembly Kit
(Superseded to 532186612)

Note: (Includes Springs)

$

$

Not available

24

Husqvarna 873930500

Locknut 5/16-18

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532174105

Handle Bracket Assembly (Left)
(Superseded to 586559801)

$

$

Not available

26

Husqvarna 532174106

Handle Bracket Assembly (Right)
(Superseded to 586559801)

$

$

Not available

27

Husqvarna 532851856

Screw 1/4-20 x 3/8
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532152124

Hinge Spring

$7.49

$

In Stock, only 3 left!

0

29

Husqvarna 532165704

Wheel Adjusting Bracket - Front
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532183901

Spacer

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532185595

Clip on Discharge Guard
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

32

Husqvarna 532185716

Selector Spring - Rear
(Superseded to 532180077)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

34

Husqvarna 532185718

Axle Arm Assembly - LR
(Superseded to 532181214)

$10.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532160828

Shoulder Bolt 5/16-18

$

$

Not available

37

Husqvarna 532180183

Wheel Assembly, Rear

$

$

Not available

38

Husqvarna 532180541

Wheel Assembly, Front

$

$

Not available

39

Husqvarna 532083923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532180123

Hubcap

$

$

Not available

41

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 532165766

Spring (LH)

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532165767

Spring (RH)

$

$

Not available

44

Husqvarna 532184193

Door Bolt

$

$

Not available

45

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532180626

Hubcap
(Superseded to 532150182)

$

$

Not available

48

Husqvarna 532185717

Axle Arm Assembly - RR
(Superseded to 532181215)

$10.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532163662

Housing Assembly
(Superseded to 532443257)

Note: (Includes Key Numbers 17, 18 and 46)

$218.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Lockwasher
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 532175064

21" Blade
(Superseded to 532189028)

$22.99

$

In Stock, Qty 5

0

57

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

58

Husqvarna 532057143

Washer, Wave
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

67

Husqvarna 532185593

Grass Bag
(Superseded to 532410666)

$80.99

$

In Stock, only 1 left!

0

68

Husqvarna 532180332

Catcher Frame
(Superseded to 532194642)

$

$

Not available

70

Engine, Honda, Model Number GCV-160

Note: (Order parts from engine manufacturer)

$

$

Not available

71

UNKNOWN

$

$

Not available

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (Not Shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532185591

Owner's Manual, English / French

$

$

Not available
