5521 CM (917384506) - Husqvarna 21" Walk-Behind Mower (2012-01) FRAME ENGINE_B Parts Diagram

21" Walk-Behind Mower

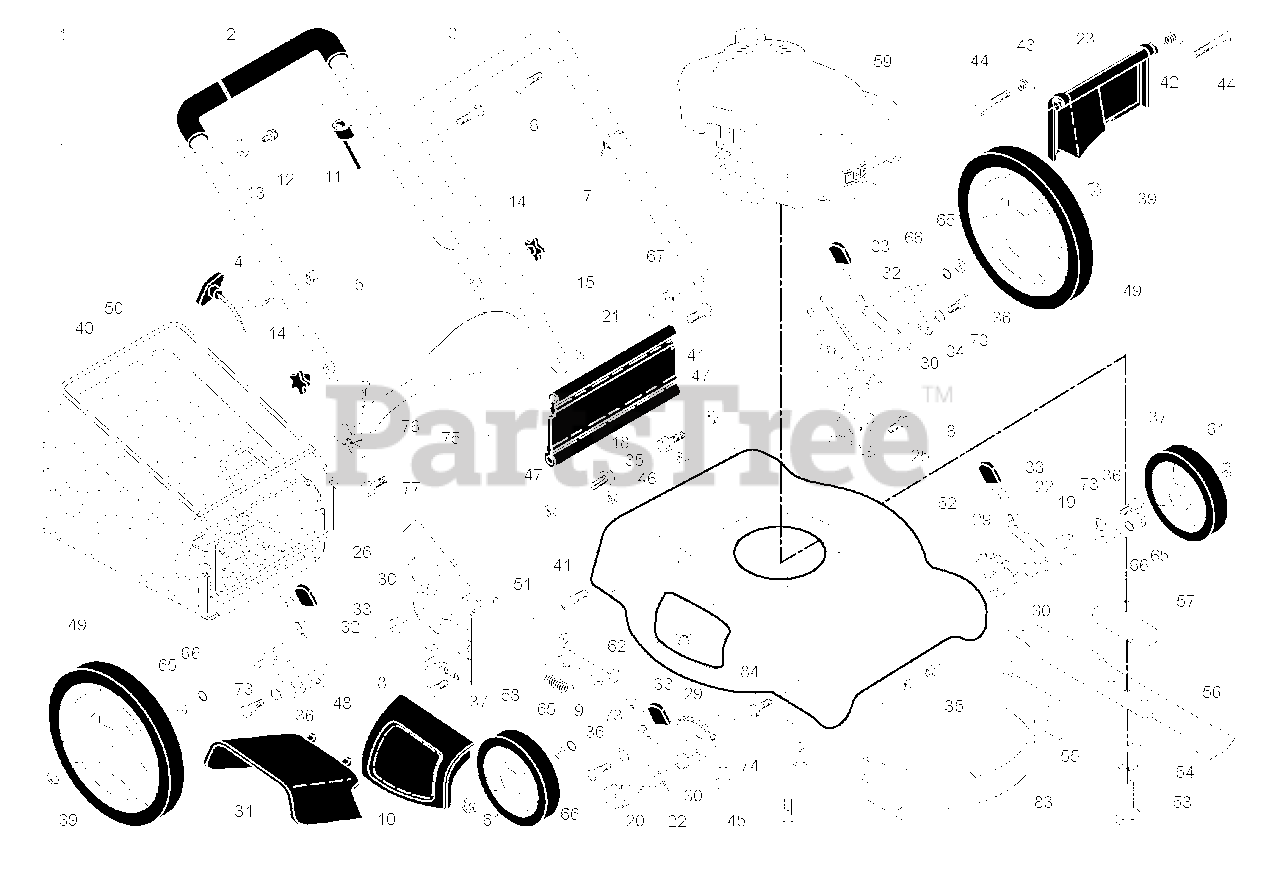

FRAME ENGINE_B Parts Diagram

  • Title
1

Husqvarna 532197203

CONTROL BAR
(Superseded to 532194176)

$

$

Not available

2

Husqvarna 532196954

HANDLE.UPPER.W/GRIP.FGD/PUSH

$60.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532434726

HANDLE.LOWER.D-STRAIT.GREY

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 532185589

RP DOOR.MULCH.21".REAR.PUSH.GR
(Superseded to 581825801)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532420947

CABLE.MZR.PUSH.HONDA.STRT
(Superseded to 532440934)

$17.99

$

In Stock, only 4 left!

0

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: FRONT LEFT

$

$

Not available

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: FRONT RIGHT

$6.99

$

In Stock, only 3 left!

0

21

Husqvarna 532418655

RP_KIT.SKIRT.21 DOMED.W/LIP
(Superseded to 532416860)

$13.99

$

In Stock, Qty 5

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

23

Husqvarna 532410603

REAR DOOR ASSY
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532446560

RP BRACKET.ASM.HND.HW.21.LT.
(Superseded to 580915605)

Note: LH

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532446562

RP BRACKET.ASM.HAND.HW.21.RT.O

Note: RH

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER(2 2)3 2

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

32

Husqvarna 532410595

SPRING.SEL.EXT.21.DOMED.12/14
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 532410600

AXLE ARM ASSY REAR LH
(Superseded to 532401176)

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

39

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

41

Husqvarna 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

$4.99

$

In Stock, only 3 left!

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

$4.99

$

In Stock, only 3 left!

0

$

$

Not available

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

48

Husqvarna 532410601

AXLE ARM ASSY REAR RH
(Superseded to 532401177)

$

$

Not available

49

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

50

Husqvarna 532194715

GBAG.2323247.SILVER
(Superseded to 581002102)

$93.99

$

In Stock, Qty 20+

0

51

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

52

Husqvarna 532441951

HOUSING.21.MC.DOME.ORG.ENG.
(Superseded to 581708322)

Note: INCLUDES KEY NUMBER 46

$

$

Not available

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

57

Husqvarna 532418373

ADAPTER.BLADE.W/KEY.25MM.CE

$11.99

$

In Stock, Qty 20+

0

58

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 3 left!

0

59

000000000

Note: HONDA GCV160-LAOS3A FOR SERVICE PARTS 1-800-426-7701

$

$

Not available

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

65

$7.49

$

In Stock, Qty 6

0

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532413693

KIT.BAFFLE.REAR.PLASTIC.21.RD

Note: INCLUDES 3 SCREWS

$30.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$13.99

$

Usually ships in 3-10 days

0

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

83

Husqvarna 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

0

84

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

--

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0
