5521 CHV (961430001-03) - Husqvarna 21" Walk-Behind Mower (2006-02) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

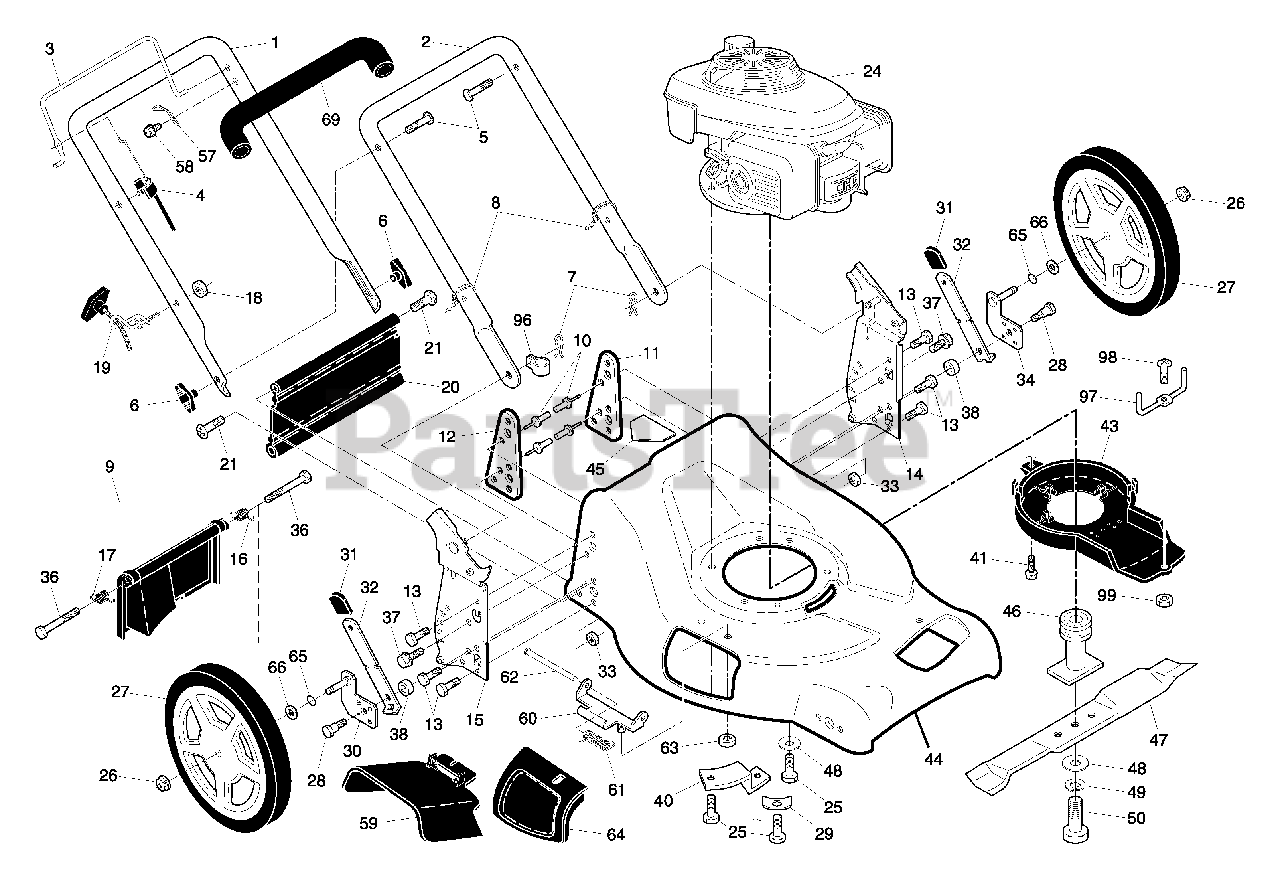

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532196403

Upper Handle, with Foam Grip
(Superseded to 532427658)

$60.99

$

In Stock, only 1 left!

0

2

Husqvarna 532153418

Lower Handle
(Superseded to 532175245)

$

$

Not available

3

Husqvarna 532197019

Control Bar

$

$

Not available

4

Husqvarna 532183567

Engine Zone Control Cable

$17.99

$

In Stock, only 2 left!

0

5

Husqvarna 532191574

Handle Bolt

$6.99

$

In Stock, only 4 left!

0

6

Husqvarna 532191856

Handle Knob
(Superseded to 532189713)

$9.49

$

In Stock, Qty 17

0

7

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532180479

Kit, Rear Door

Note: (Includes Key #16 and 17)

$40.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532182538

Support Bracket, LH

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532182539

Support Bracket, RH
(Superseded to 532421560)

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 817060410

Screw 1/4-20 x 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532196037

Handle Bracket Assembly, LH
(Superseded to 532434513)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532196036

Handle Bracket Assembly, RH
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532180071

Spring, LH

$

$

Not available

17

Husqvarna 532180072

Spring, RH

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 532132004

Keps Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532189005

Rear Skirt
(Superseded to 532413159)

$17.99

$

In Stock, only 3 left!

0

21

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1/2

$7.49

$

In Stock, only 2 left!

0

24

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda Engines at 1-800-426-7701)

$

$

Not available

25

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532145212

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532402948

Wheel & Tire Assembly, Rear, 12"
(Superseded to 581010309)

$37.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532160828

Shoulder Bolt 5/16-18 x .33

$

$

Not available

29

Husqvarna 532125078

Washer, Engine, Zinc-Plated

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532402571

Axle Arm Assembly, Rear, RH

$

$

Not available

31

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

32

Husqvarna 532190157

Selector Spring

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 873800500

Nut, Hex 5/16-18

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532402572

Axle Arm Assembly, Rear, LH

$

$

Not available

36

Husqvarna 532184193

Bolt

$

$

Not available

37

Husqvarna 532150078

Thread Cutting Screw w/Sems 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 819112206

Washer

$5.99

$

In Stock, Qty 5

0

40

Husqvarna 532190939

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532192325

Screw

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532198910

Debris Shield
(Superseded to 532443950)

$

$

Not available

44

Husqvarna 532185583

Kit, Lawn Mower Housing

Note: (Includes Key Numbers 10, 11, 12 and 45)

$169.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532194037

Blade Adapter / Pulley
(Superseded to 532443950)

$

$

Not available

47

Husqvarna 532189028

Blade, 21"

$22.99

$

In Stock, Qty 6

0

48

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

Helical Washer 3/8-24 x 1-3/8 Grade 8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 17

0

50

Husqvarna 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532125162

Upstop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

58

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

59

Husqvarna 532185582

Discharge Deflector
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532175735

Hinge Bracket

$

$

Not available

61

Husqvarna 532193000

Spring

$7.49

$

In Stock, only 3 left!

0

62

Husqvarna 532175650

Hinge Rod

$7.49

$

In Stock, Qty 10

0

63

Husqvarna 873800400

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

64

Husqvarna 532185576

Mulcher Door

$14.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532088348

Washer, Flat 1/2

$7.49

$

In Stock, Qty 6

0

69

Husqvarna 532182748

Grip, Foam

$

$

Not available

96

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

97

Husqvarna 532197162

Belt Keeper

$

$

Not available

98

Husqvarna 532182227

Screw

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532182228

Nut, Hex

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Decal, Warning
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532199979

Owner's Manual, English / French

$

$

Not available
