5521 CHV (961430001-03) - Husqvarna 21" Walk-Behind Mower (2005-11) REPAIR PARTS Parts Diagram

21" Walk-Behind Mower

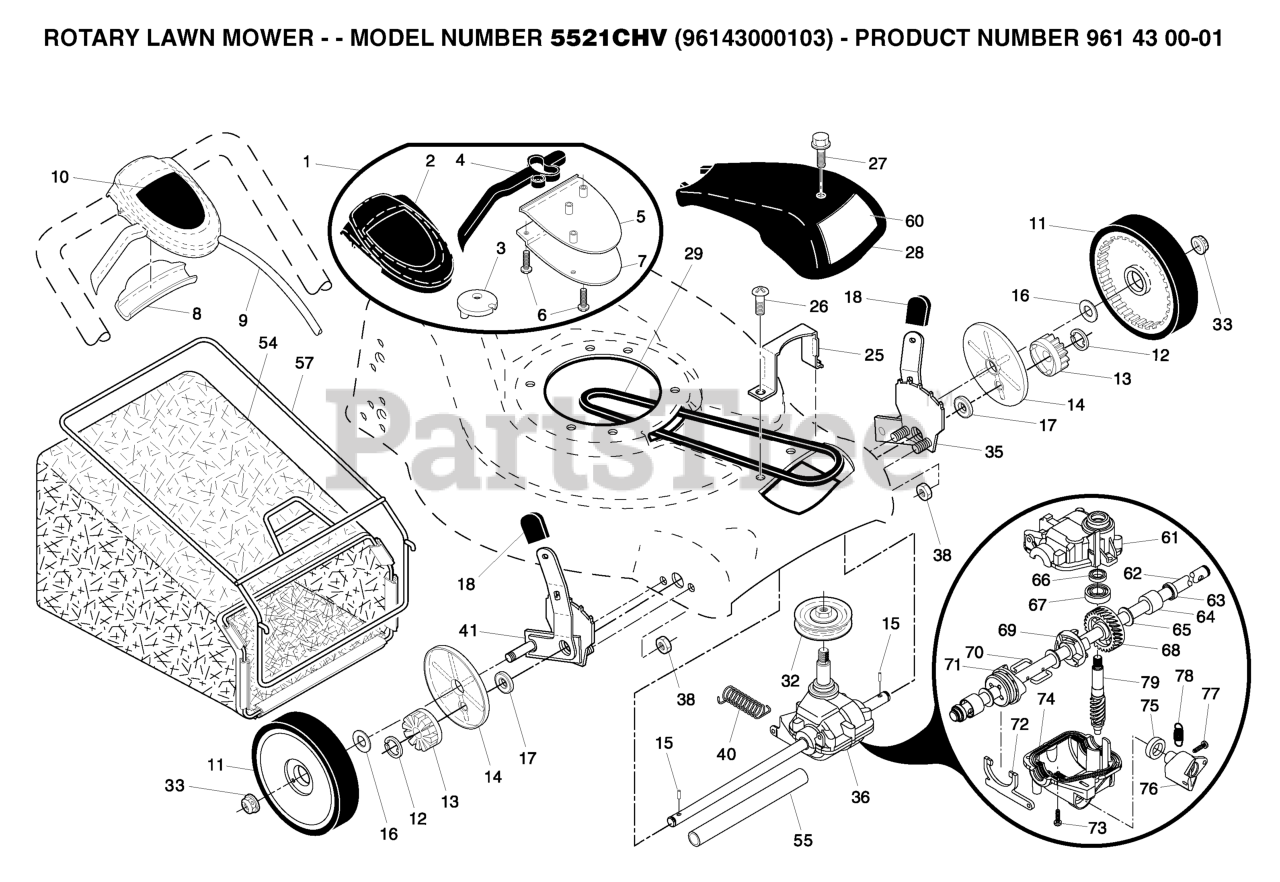

REPAIR PARTS Parts Diagram

  • Title

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$24.99

$

In Stock, only 2 left!

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

65

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532189074

DECAL.DRIVE.CONTROL.HV

$

$

Not available

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

41

Husqvarna 532195107

KIT.ADJUSTER.AS.EZ RT
(Superseded to 581497907)

$

$

Not available

64

Husqvarna 532183511

BUSHING

$5.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532183502

SHAFT INPUT (13041)

$30.99

$

In Stock, only 1 left!

0

74

Husqvarna 532196881

GEARCASE.HOUSING.LOWER

$15.99

$

In Stock, only 1 left!

0

69

Husqvarna 532196884

CLUTCH

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532188296

TRANSMISSION.21RD

$109.99

$

In Stock, only 1 left!

0

9

Husqvarna 532196180

CABLE.ASM.

$

$

Not available

72

Husqvarna 532196882

FORK

$7.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532196879

LEVER

$6.99

$

In Stock, only 1 left!

0

75

Husqvarna 532196880

SEAL

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 532400543

WHEEL.8X1.75.5SPK.RAD.GREY
(Superseded to 581009202)

$24.99

$

In Stock, only 2 left!

0

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

78

Husqvarna 532196877

SPRING.

$5.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, only 1 left!

0

29

Husqvarna 532196853

BELT.DRIVE.FGD.

$20.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532196886

GEARCASE.HOUSING

$15.99

$

In Stock, only 1 left!

0

67

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532196878

SCREW.LEVER.

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532750003

PINION
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

71

Husqvarna 532196883

CLUTCH

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532196270

CONTROL.DR.EZ.FWGD.SHORT.GY/BL

$66.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195761

CASE.TOP.GRAY
(Superseded to 532414555)

$

$

Not available

62

Husqvarna 532196885

SHAFT.OUTPUT

$54.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532191017

PAWL.DRIVE
(Superseded to 532404845)

$5.99

$

In Stock, Qty 5

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532185574

SELECTOR KNOB

$6.99

$

In Stock, Qty 8

0

5

Husqvarna 532195762

CASE BOTTOM
(Superseded to 532414555)

$

$

Not available

55

Husqvarna 532175739

DRIVESHAFT COVER

$

$

Not available

68

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532195110

RP KIT.ADJUSTER.ASM.EZ
(Superseded to 581497908)

$22.99

$

In Stock, Qty 8

0

8

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

26

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

60

000000000

Note: not available

$

$

Not available

66

Husqvarna 532183514

SEAL INPUT SHAFT

$7.99

$

In Stock, only 2 left!

0

25

Husqvarna 532199089

KEEPER.BELT.21.EZ.FWGD

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532192849

SPRING RETURN

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

57

Husqvarna 532194643

FRAME.GBAG.21.FWGD.

$

$

Not available

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

54

Husqvarna 532401190

GBAG.34710247.SILVER.H
(Superseded to 580953406)

$62.99

$

In Stock, only 1 left!

0
