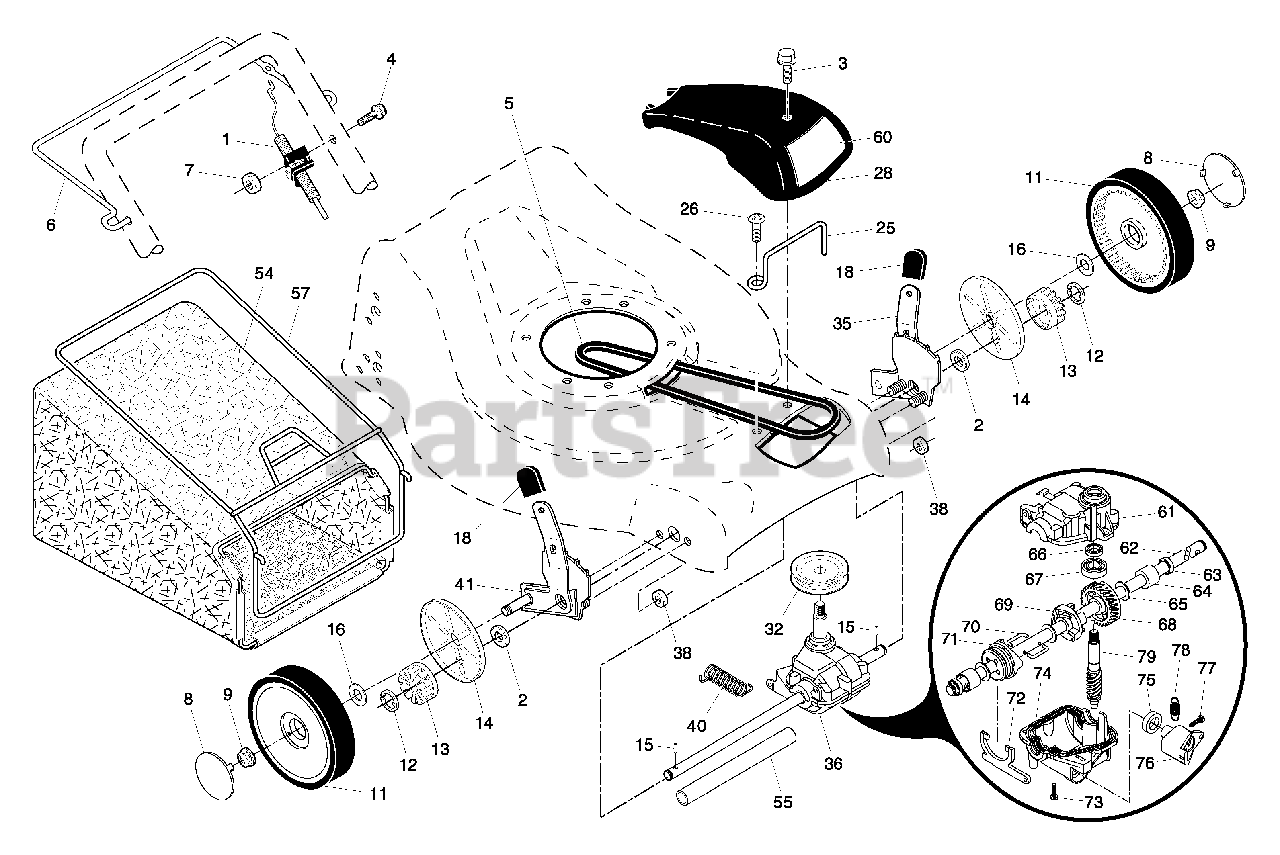

5521 CHV (961430001-01) - Husqvarna 21" Walk-Behind Mower (2005-01) Drive Assembly Parts Diagram

21" Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532193480

Drive Control Assembly, with Cable

$53.99

$

In Stock, only 1 left!

0

2

Husqvarna 532169911

Bearing, Wheel Adjuster

$

$

Not available

3

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532185681

Hex Washer Head Screw 1/4-20 x 2.12

$

$

Not available

5

Husqvarna 532194149

V-Belt

$24.99

$

In Stock, only 1 left!

0

6

Husqvarna 532196188

Control Bar, Drive
(Superseded to 532194185)

$

$

Not available

7

Husqvarna 532751152

Locknut, Hex #10-24
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532180626

Hubcap
(Superseded to 532150182)

$

$

Not available

9

Husqvarna 532145212

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532180767

Wheel & Tire Assembly
(Superseded to 532180775)

$34.99

$

In Stock, Qty 13

0

12

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532175103

Gear, Pinion

$

$

Not available

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

15

Husqvarna 532191017

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, only 3 left!

0

16

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

25

Husqvarna 532196689

Belt Keeper
(Superseded to 532199089)

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532150078

Screw
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532185579

Drive Cover
(Superseded to 532432664)

$24.99

$

In Stock, only 2 left!

0

32

Husqvarna 532194018

Drive Pulley
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

35

Husqvarna 532195110

Kit, Wheel Adjuster, LH
(Superseded to 581497908)

Note: (Includes Knob and Bearing)

$22.99

$

In Stock, Qty 8

0

36

Husqvarna 532188296

Gearcase Assembly, Complete

$109.99

$

In Stock, only 1 left!

0

38

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532192849

Spring

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532195107

Kit, Wheel Adjuster, RH
(Superseded to 581497907)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Husqvarna 532194724

Grassbag Assembly
(Superseded to 580953406)

$62.99

$

In Stock, only 1 left!

0

55

Husqvarna 532175739

Driveshaft Cover

$

$

Not available

57

Husqvarna 532188815

Frame, Grassbag
(Superseded to 532194643)

$

$

Not available

60

Husqvarna 532189066

Decal, Drive Cover

$

$

Currently unavailable

61

Husqvarna 532196886

Case, Upper

$15.99

$

In Stock, only 1 left!

0

62

Husqvarna 532196885

Shaft, Output

$54.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

64

Husqvarna 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532183514

Seal, Worm Shaft

$7.99

$

In Stock, only 2 left!

0

67

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532183499

Gear, 27 Teeth

$17.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532196884

Fixed Dog Clutch

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183505

Wireform

$6.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532196883

Movable Dog Clutch

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532196882

Fork

$7.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532183513

Screw, Case

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532196881

Case, Lower

$15.99

$

In Stock, only 1 left!

0

75

Husqvarna 532196880

Seal, Lever

$6.49

$

In Stock, only 1 left!

0

76

Husqvarna 532196879

Lever

$6.99

$

In Stock, only 1 left!

0

77

Husqvarna 532196878

Screw, Lever

$8.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532196877

Spring

$5.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532183502

Shaft, Worm

$30.99

$

In Stock, only 1 left!

0
