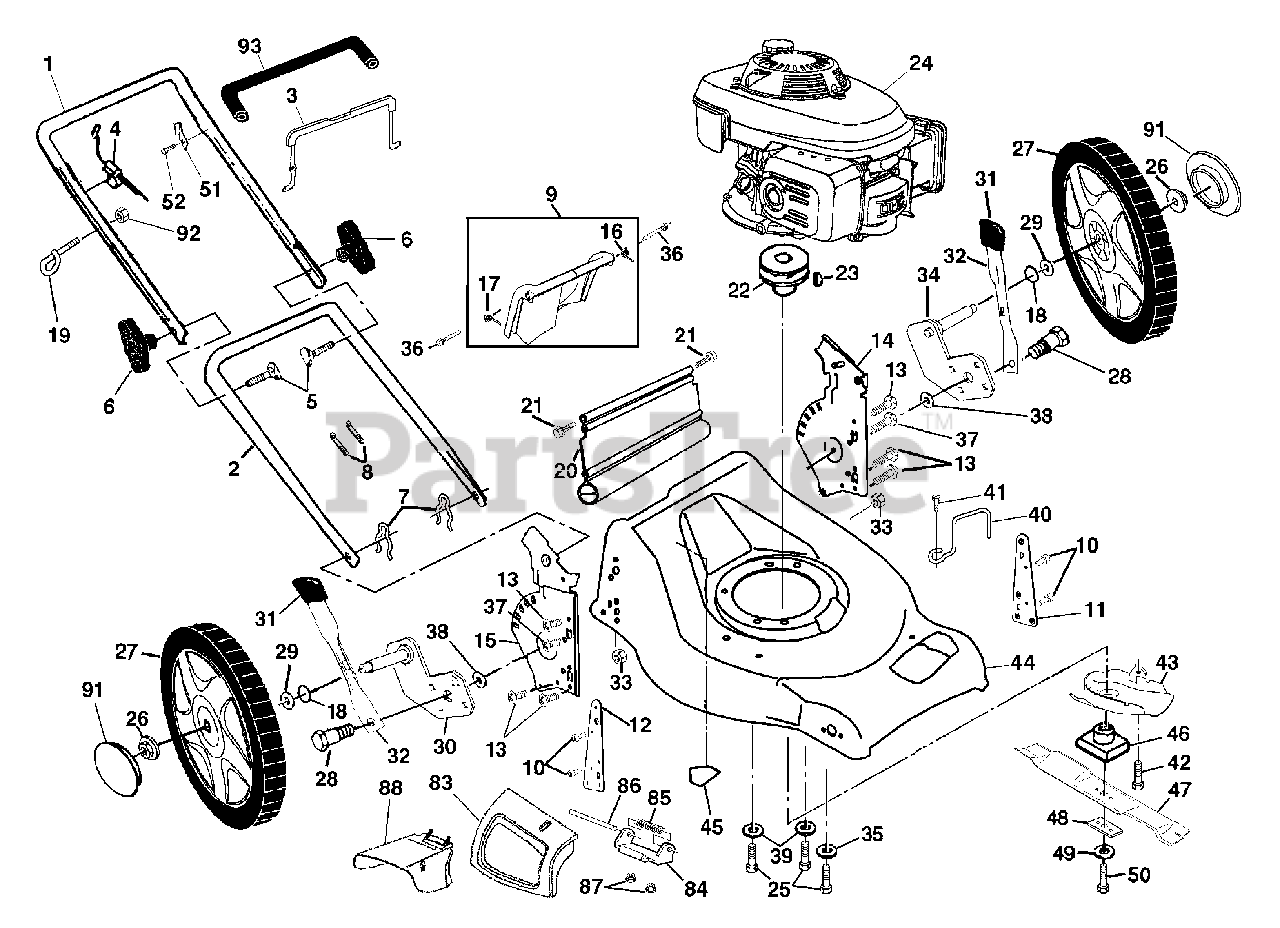

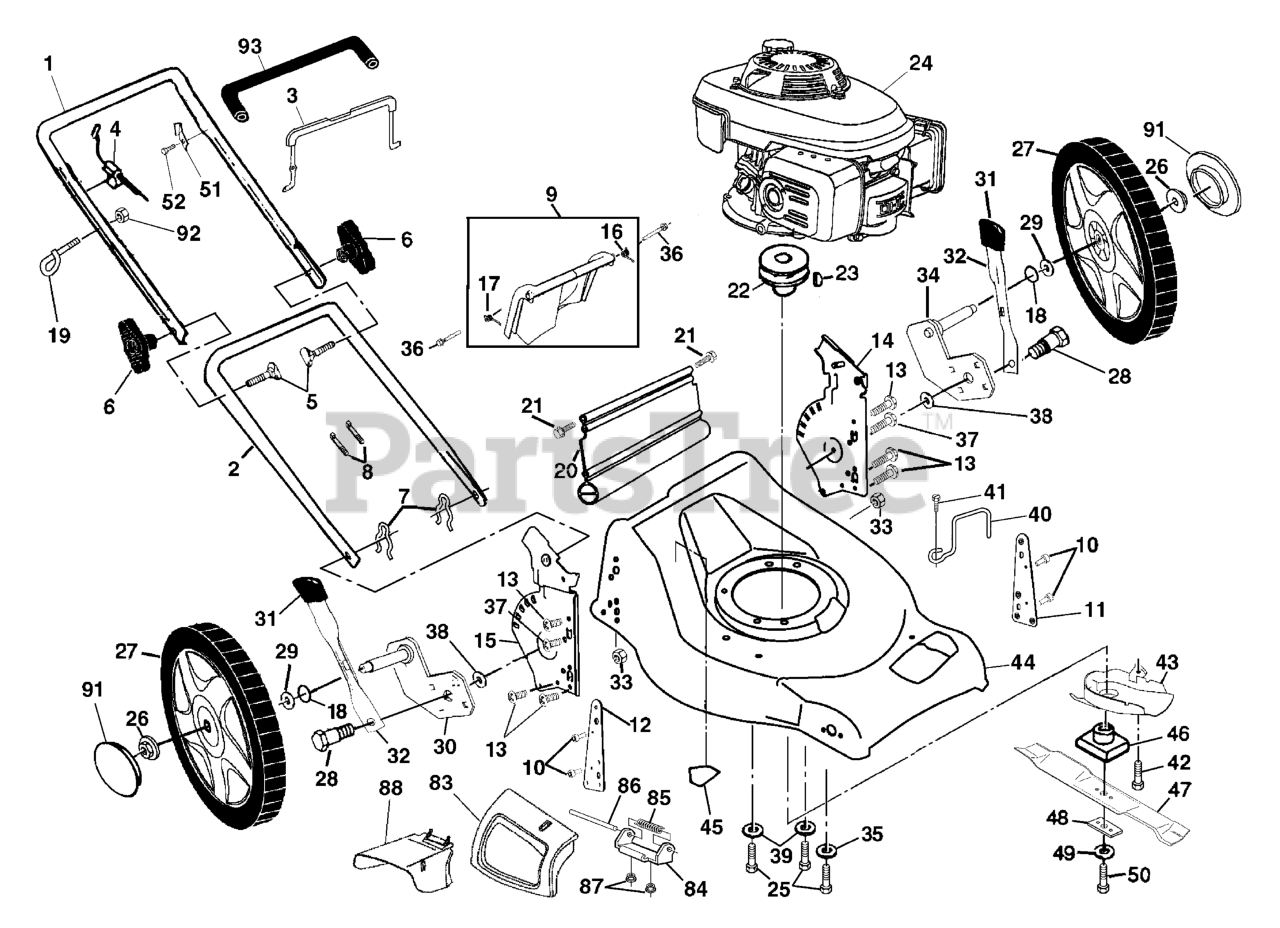

5521 CHV (954223883-A) - Husqvarna 21" Walk-Behind Mower (2004-07) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532186024

Upper Handle
(Superseded to 584329601)

Note: (Includes Foam Grip)

$36.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532153418

Lower Handle
(Superseded to 532175245)

$

$

Not available

3

Husqvarna 532186011

Control Bar

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532182755

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

5

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

6

Husqvarna 532185577

Handle Knob

$9.49

$

In Stock, Qty 18

0

7

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532180479

Rear Door Kit

Note: (Includes Key #16 and 17)

$40.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532182538

Support Bracket, LH

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532182539

Support Bracket, RH
(Superseded to 532421560)

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 817060410

Screw 1/4-20 x 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532182543

Handle Bracket Assembly (Left)
(Superseded to 532434513)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532182545

Handle Bracket Assembly (Right)
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532180071

Spring, LH

$

$

Not available

17

Husqvarna 532180072

Spring, RH

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 532188152

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532179585

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532189005

Rear Skirt
(Superseded to 532413159)

$17.99

$

In Stock, only 3 left!

0

21

Husqvarna 532088652

Hinge Screw 1/4-20 x 1-1/4

$7.49

$

In Stock, only 2 left!

0

22

Husqvarna 532185005

Engine Pulley

$31.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532187723

Hi-Pro Key

$

$

Not available

24

Engine, Honda, Model Number GCV160 (Order parts from engine manufacturer)

$

$

Not available

25

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532083923

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532185572

Wheel
(Superseded to 532180552)

$80.99

$

In Stock, Qty 5

0

28

Husqvarna 532160828

Shoulder Bolt 5/16-18 x .33

$

$

Not available

29

Husqvarna 532088348

Washer, Flat 3/8

$7.49

$

In Stock, Qty 6

0

30

Husqvarna 532182541

Axle Arm Assembly RR
(Superseded to 532175574)

$

$

Not available

31

Husqvarna 532185575

Selector Knob

$2.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532182537

Selector Spring
(Superseded to 532175053)

$

$

Not available

33

Husqvarna 873800500

Locknut

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532182542

Axle Arm Assembly, LR
(Superseded to 532175575)

$

$

Not available

35

Husqvarna 532125078

Washer

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532184193

Bolt

$

$

Not available

37

Husqvarna 532150078

Thread Cutting Screw w/Sems 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532183901

Washer

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 532851074

Washer

$4.99

$

In Stock, only 4 left!

0

40

Husqvarna 532188102

Keeper, Belt

$

$

Not available

41

Husqvarna 532173715

Screw

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532188040

Screw, Belt Cover
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532187038

Belt Cover, Bottom

$9.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532185583

Lawn Mower Housing

Note: (Includes Key Numbers 10, 11, 12 and 45)

$169.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532184590

Blade Adapter
(Superseded to 532418373)

$11.99

$

In Stock, Qty 20+

0

47

Husqvarna 532176135

Blade, 21"
(Superseded to 532406706)

$24.99

$

In Stock, only 1 left!

0

48

Husqvarna 532186039

Hardened Washer
(Superseded to 532183526)

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532850263

Helical Washer 3/8-24 x 1-3/8 Grade 8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

50

Husqvarna 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532125162

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

52

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

83

Husqvarna 532185576

Mulch Door

$14.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532175735

Hinge Bracket Assembly

$

$

Not available

85

Husqvarna 532175285

Spring
(Superseded to 532193000)

$7.49

$

In Stock, only 3 left!

0

86

Husqvarna 532175650

Rod, Hinge

$7.49

$

In Stock, Qty 10

0

87

Husqvarna 873800400

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

88

Husqvarna 532185582

Clipping Deflector
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532185573

Hubcap
(Superseded to 532150635)

$

$

Not available

92

Husqvarna 532132004

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

93

Husqvarna 532186362

Grip, Foam

$12.99

$

In Stock, only 3 left!

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (Not Shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532189060

Owner's Manual, English / French

$

$

Currently unavailable
