5521 CH (954223234) - Husqvarna 21" Walk-Behind Mower (2003-06) REPAIR PARTS 4 Parts Diagram

21" Walk-Behind Mower

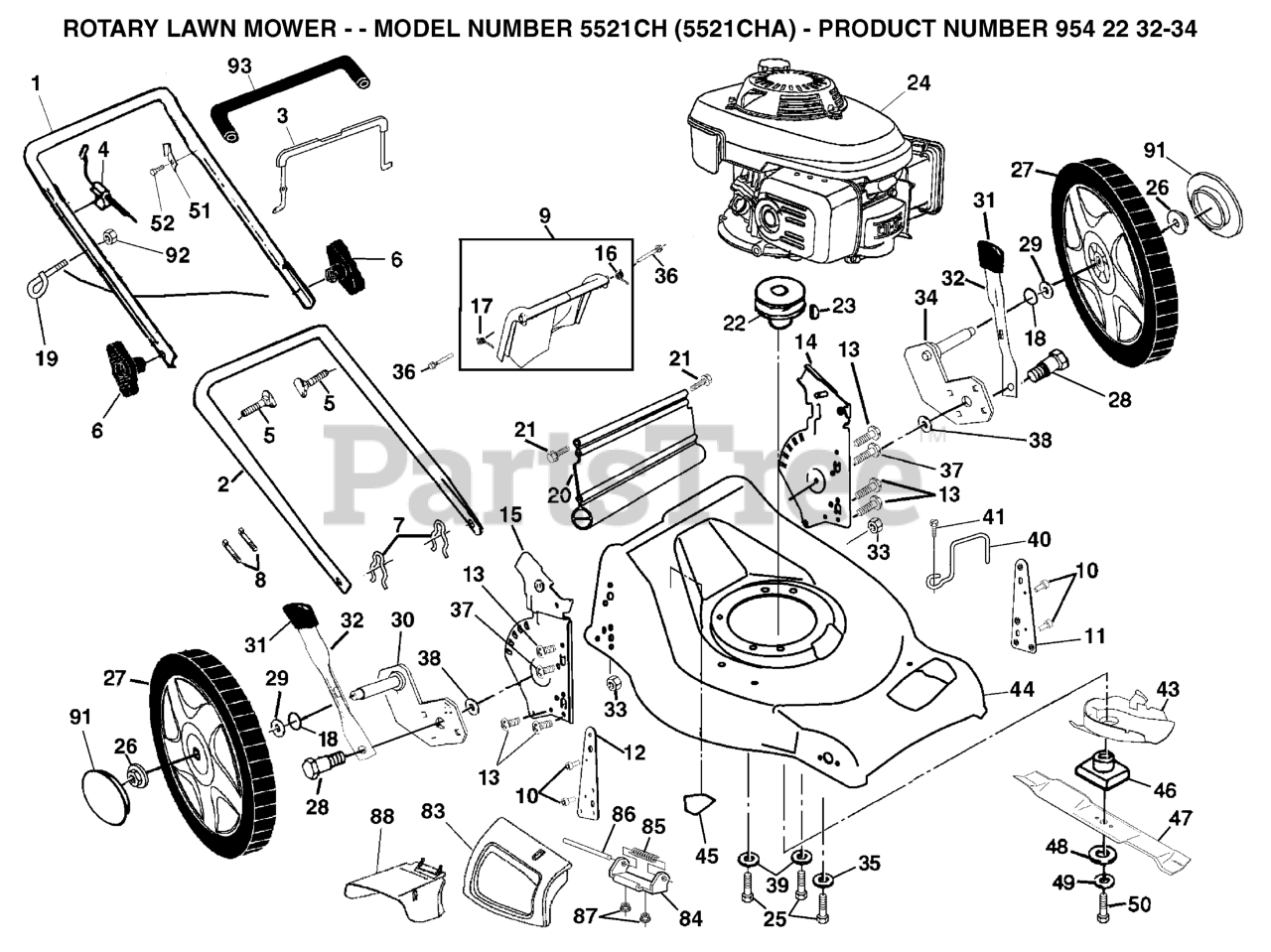

REPAIR PARTS 4 Parts Diagram

  • Title
29

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

23

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

39

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532182539

SUPPORT BRACKET RH
(Superseded to 532421560)

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532182755

ENGINE ZONE CONTROL CABLE
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

27

Husqvarna 532185572

RP WHEEL 14X2
(Superseded to 532180552)

$80.99

$

In Stock, Qty 5

0

15

Husqvarna 532182545

HANDLE BRACKET ASSY. (RIGHT)
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532169747

ENGINE PULLEY

$

$

Not available

47

Husqvarna 532176135

Blade, 21"
(Superseded to 532406706)

$24.99

$

In Stock, only 1 left!

0

14

Husqvarna 532182543

HANDLE BRACKET ASSEMBLY, LEFT
(Superseded to 532434513)

$13.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532182541

AXLE ARM ASSEMBLY RR
(Superseded to 532175574)

$

$

Not available

41

Husqvarna 532183865

KEEPER, BELT
(Superseded to 532188102)

$

$

Not available

$6.49

$

In Stock, Qty 5

0

93

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

48

Husqvarna 532186039

SADDLE WASHER
(Superseded to 532183526)

$6.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532185582

DEFLECTOR.CLIPPIN.21.FGD
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532185575

SELECTOR KNOB

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

43

Husqvarna 532183755

BOTTOM BELT COVER
(Superseded to 532188305)

$

$

Not available

83

Husqvarna 532185576

DOOR.MULCH.21.REAR.FWGD

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532186011

BAIL.CONT.MZR.FLAT.21

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

24

000000000

Note: HONDA GCV160 FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available

38

Husqvarna 532183901

SPACER.34X1.38X.22

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 532185543

LAWN MOWER HOUSING
(Superseded to 532185583)

$169.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532173715

BOLT.HEX.HDWSH.5/16-18X1.00

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

8

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

91

Husqvarna 532185573

HUBCAP
(Superseded to 532150635)

$

$

Not available

20

Husqvarna 532178398

REAR SKIRT
(Superseded to 532413159)

$17.99

$

In Stock, only 3 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

6

Husqvarna 532185577

HANDLE.KNOB.BLACK

$9.49

$

In Stock, Qty 13

0

84

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

9

Husqvarna 532180479

KIT.DOOR.RR.ASM.21.FWGD

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

21

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

34

Husqvarna 532182542

AXLE ARM ASSEMBLY LR
(Superseded to 532175575)

$

$

Not available

45

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532063601

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

17

Husqvarna 532180072

SPRING.REAR.DOOR.EZ.21

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532160828

SHOULDER BOLT

$

$

Not available

7

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

85

Husqvarna 532175285

SPRING
(Superseded to 532193000)

$7.49

$

In Stock, only 3 left!

0

1

Husqvarna 532186024

UPPER HANDLE W/ GRIP
(Superseded to 584329601)

$36.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532182538

SUPPORT BRACKET LH

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532182537

SELECTOR SPRING
(Superseded to 532175053)

$

$

Not available

2

Husqvarna 532153605

LOWER HANDLE
(Superseded to 532175245)

$

$

Not available

16

$

$

Not available

46

Husqvarna 532851514

BLADE ADAPTOR

$17.99

$

In Stock, Qty 20+

0
