5521 CH (954223234-B) - Husqvarna 21" Walk-Behind Mower (2003-03) Drive Assembly Parts Diagram

21" Walk-Behind Mower

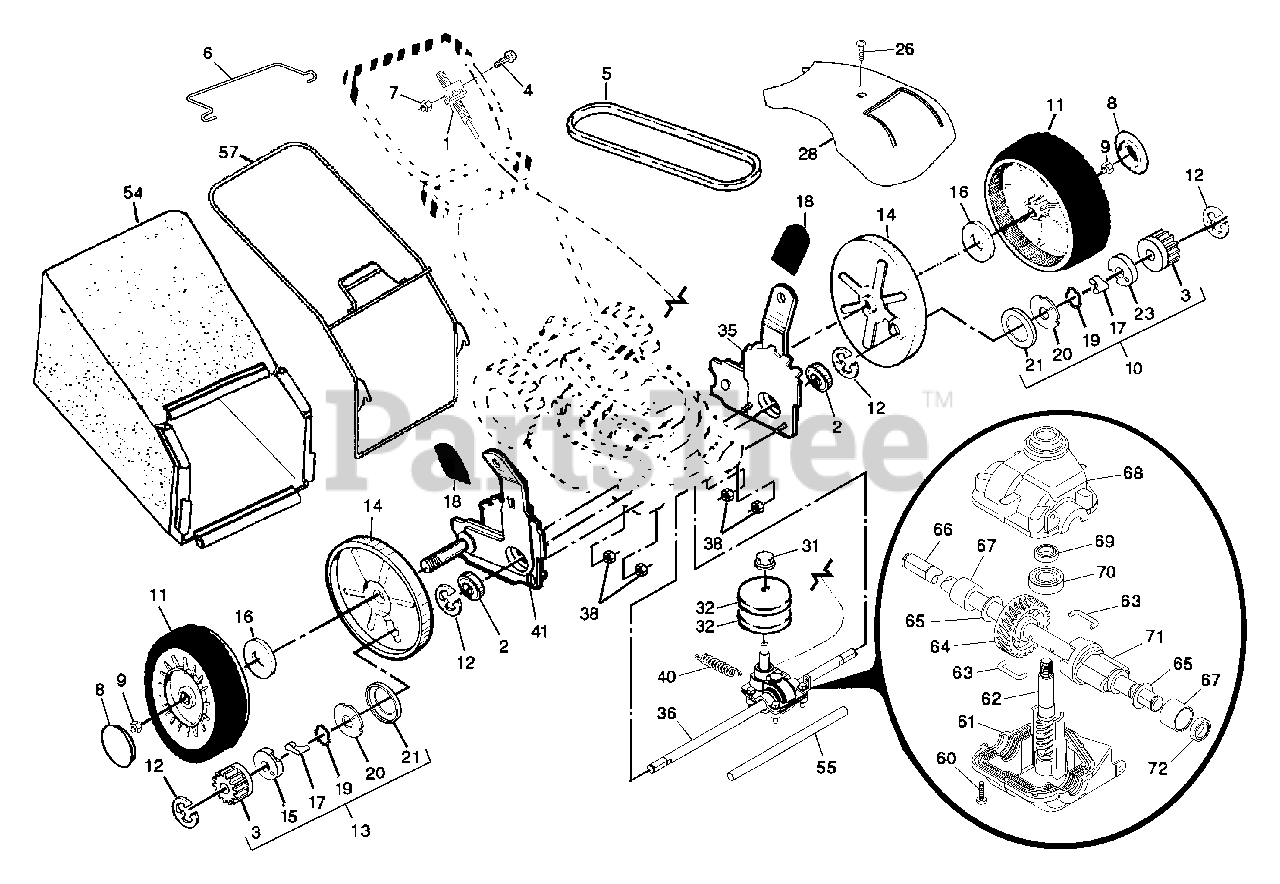

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532185685

Vari-Speed Drive Control Assembly

$53.99

$

In Stock, only 1 left!

0

2

Husqvarna 532169911

Bearing, Wheel Adjuster

$

$

Not available

3

Husqvarna 532175103

Gear, Pinion

$

$

Not available

4

Husqvarna 532185681

Screw

$

$

Not available

5

Husqvarna 532169778

V-Belt

$24.99

$

In Stock, only 1 left!

0

6

Husqvarna 532186010

Bar, Control, Drive
(Superseded to 532194185)

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532751152

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532180626

Hubcap
(Superseded to 532150182)

$

$

Not available

9

Husqvarna 532145212

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532188292

Pinion Assembly, LH
(Superseded to 532193366)

$53.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532180767

Wheel & Tire Assembly
(Superseded to 532180775)

$34.99

$

In Stock, Qty 13

0

12

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532188293

Pinion Assembly, RH
(Superseded to 532193367)

$47.99

$

In Stock, only 1 left!

0

14

Husqvarna 532180504

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

15

Husqvarna 532175102

Retainer, Drive. RH

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532175098

Pawl

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

19

Husqvarna 532188291

Spring, Torsion

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 532175101

Seal, Pinion
(Superseded to 532184172)

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532175105

Retainer, Drive, LH

$

$

Not available

26

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532185579

Drive Cover
(Superseded to 532432664)

$24.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532132010

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532169742

Pulley Half, Drive
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

35

Husqvarna 532180915

Kit, Wheel Adjuster, LH

Note: (Includes Knob and Bearing)

$

$

Not available

36

Husqvarna 532187212

Gear Case Assembly, Complete

$

$

Not available

38

Husqvarna 873800400

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532182226

Spring
(Superseded to 532406558)

$8.99

$

In Stock, Qty 7

0

41

Husqvarna 532180914

Kit, Wheel Adjuster, RH

Note: (Includes Knob and Bearing)

$54.99

$

In Stock, only 1 left!

0

54

Husqvarna 532185581

Grassbag Assembly
(Superseded to 532410677)

$102.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532175739

Driveshaft Cover

$

$

Not available

57

Husqvarna 532183993

Frame

$

$

Not available

60

Husqvarna 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532187525

Case, Lower

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$24.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532187527

Shaft, Input

$

$

Not available

63

Husqvarna 532183505

Wire, Formed

$6.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532183499

Gear, 27 Teeth

$17.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532187529

Shaft, Output

$91.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532187526

Case, Upper

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$20.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 2 left!

0

70

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532187528

Spacer

$

$

Not available

72

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0
