5521 CH (954223234-A) - Husqvarna 21" Walk-Behind Mower (2003-06) Walk Mower 5521CH A Repair Parts (B) Parts Diagram

21" Walk-Behind Mower

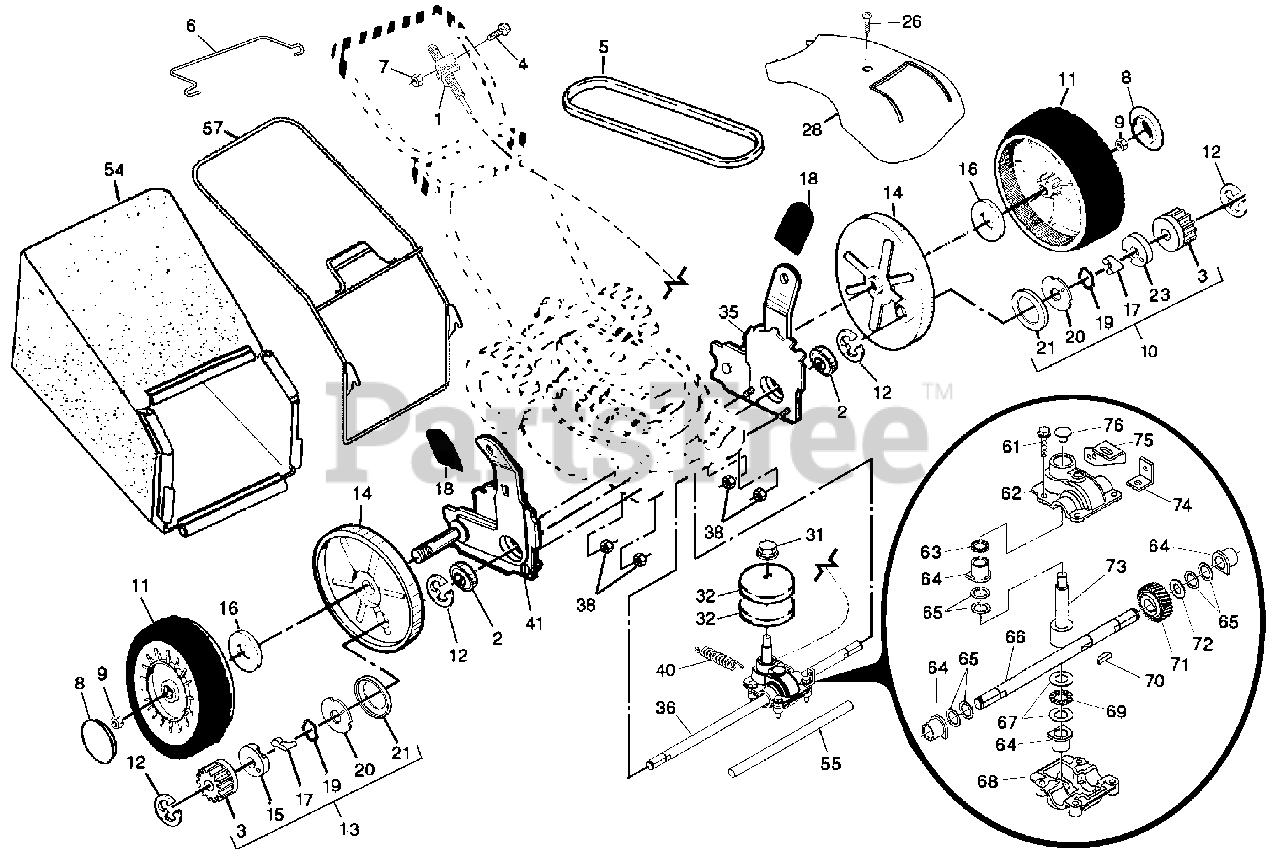

Walk Mower 5521CH A Repair Parts (B) Parts Diagram

  • Title

1

Husqvarna 532185685

Vari-Speed Drive Control Assembly

$53.99

$

In Stock, only 1 left!

0

2

Husqvarna 532169911

Bearing, Wheel Adjuster

$

$

Not available

3

Husqvarna 532175103

Gear, Pinion

$

$

Not available

4

Husqvarna 532185681

Screw

$

$

Not available

5

Husqvarna 532169778

V-Belt

$24.99

$

In Stock, only 1 left!

0

6

Husqvarna 532186010

Bar, Control, Drive
(Superseded to 532194185)

$

$

Not available

7

Husqvarna 532751152

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532180626

Hubcap
(Superseded to 532150182)

$

$

Not available

9

Husqvarna 532145212

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532188292

Pinion Assembly, LH
(Superseded to 532193366)

$53.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532180767

Wheel & Tire Assembly
(Superseded to 532180775)

$34.99

$

In Stock, Qty 13

0

12

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532188293

Pinion Assembly, RH
(Superseded to 532193367)

$47.99

$

In Stock, only 1 left!

0

14

Husqvarna 532180504

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

15

Husqvarna 532175102

Retainer, Drive. RH

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532175098

Pawl

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

19

Husqvarna 532188291

Spring, Torsion

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 532175101

Seal, Pinion
(Superseded to 532184172)

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532175105

Retainer, Drive, LH

$

$

Not available

26

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532185579

Drive Cover
(Superseded to 532432664)

$24.99

$

In Stock, only 2 left!

0

31

Husqvarna 532132010

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532169742

Pulley Half, Drive
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

35

Husqvarna 532180915

Kit, Wheel Adjuster, LH

Note: (Includes Knob and Bearing)

$

$

Not available

36

Husqvarna 532185566

Gear Case Assembly, Complete
(Superseded to 532187212)

$

$

Not available

38

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532182226

Spring
(Superseded to 532406558)

$8.99

$

In Stock, Qty 7

0

41

Husqvarna 532180914

Kit, Wheel Adjuster, RH

Note: (Includes Knob and Bearing)

$54.99

$

In Stock, only 1 left!

0

54

Husqvarna 532185581

Grassbag Assembly
(Superseded to 532410677)

$102.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532175739

Driveshaft Cover

$

$

Not available

57

Husqvarna 532183993

Frame

$

$

Not available

61

Husqvarna 817060410

Screw, Tapping 1/4-20 x .62

$7.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532174917

Gear Case, Upper, FWSS
(Superseded to 532187212)

$

$

Not available

63

Husqvarna 532057072

Seal

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532077881

Bearing

$30.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532057079

Washer

$6.49

$

In Stock, Qty 11

0

66

Husqvarna 532174918

Drive Shaft, 21" FWGD

$

$

Not available

67

Husqvarna 532160817

Washer, Thrust

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532174916

Gear Case, Lower, FWSS
(Superseded to 532187212)

$

$

Not available

69

Husqvarna 532160818

Bearing, Needle, Thrust

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532850848

Key, Hi-pro

$6.49

$

Usually ships in 3-10 days

0

71

Husqvarna 532171755

Gear, Helical

$24.99

$

Usually ships in 3-10 days

0

72

Husqvarna 812000003

E-Ring

$

$

Not available

73

Husqvarna 532183863

Shaft, Worm

$

$

Not available

74

Husqvarna 532186214

Return Arm

$

$

Currently unavailable

75

Husqvarna 532186215

Bracket, Transmission

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532086447

Plug

$

$

Not available
