5521 BBC (961450002-00) - Husqvarna 21" Walk-Behind Mower (2005-05) Drive Assembly Parts Diagram

21" Walk-Behind Mower

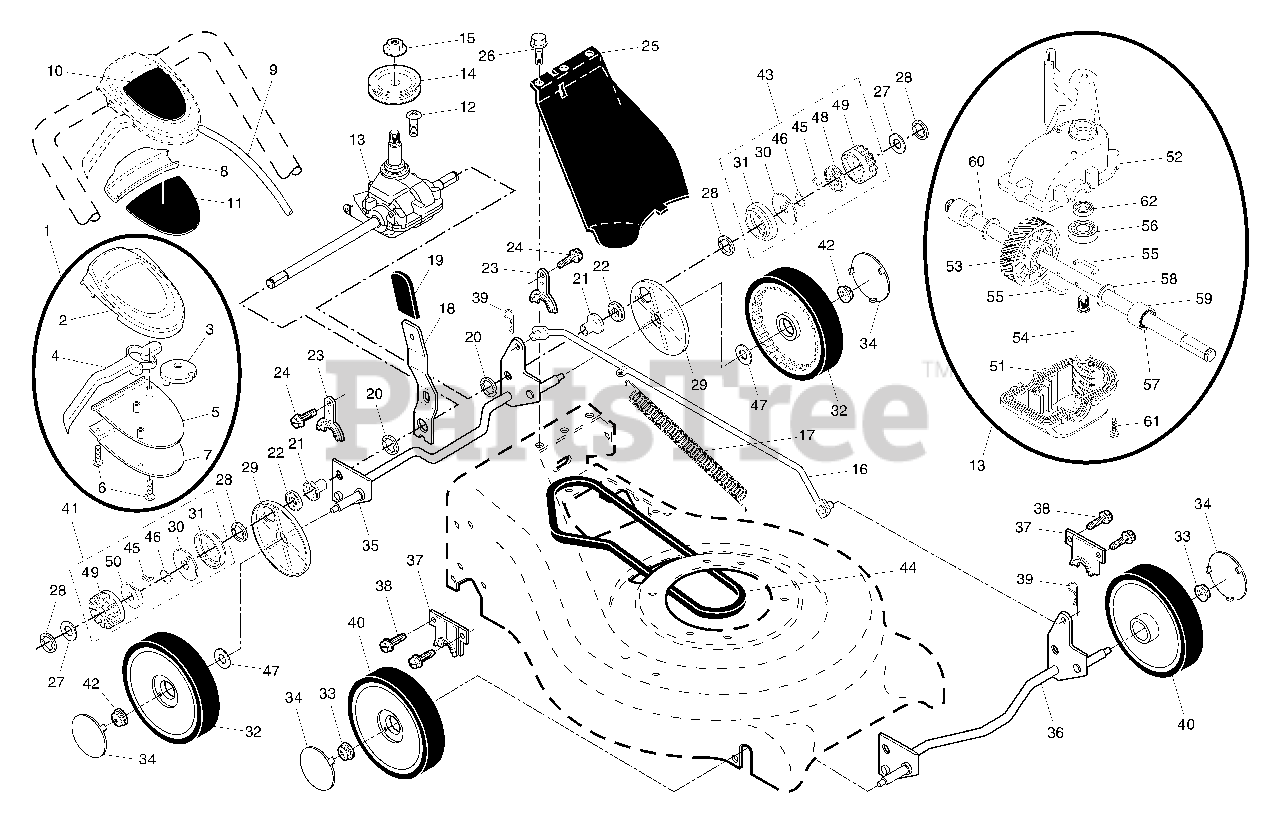

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532189741

Drive Control Assembly, Auto-Walk

$

$

Not available

2

Husqvarna 532188279

Cover, Top, Auto-Walk Drive Control
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187353

Pulley

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190039

Lever, Auto-Walk Drive Control
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532188278

Cover, Bottom, Auto-Walk Drive Control
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

Screw, Phillips Head #10 x 5/8

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532187097

Plate, Trigger, Auto-Walk Drive Control
(Superseded to 532400723)

$

$

Not available

8

Husqvarna 532186297

Cap, Drive Control, Bottom

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532190284

Cable, Drive Control

$

$

Not available

10

Husqvarna 532189074

Decal, Drive Control

$

$

Not available

11

Husqvarna 532185913

Decal, Drive Control Adjustment (bottom)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532187653

Screw

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532188645

Gear Case Assembly, Complete
(Superseded to 532414282)

$133.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532189408

Pulley, Drive
(Superseded to 532194128)

$20.99

$

In Stock, Qty 10

0

15

Husqvarna 532132010

Nut, Hex, Flanglock, Zinc Plated 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532161584

Rod, Connecting
(Superseded to 532414284)

$40.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532161602

Spring, Extension
(Superseded to 532409616)

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532190794

Spring Selector
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532190622

Knob, Selector Spring
(Superseded to 532189808)

$

$

Not available

20

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532163365

Bearing, Support
(Superseded to 532169920)

$

$

Not available

22

Husqvarna 532169911

Bearing, Ball

$

$

Not available

23

Husqvarna 532164555

Retainer, Drive Assembly, Stamped
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532057808

Screw, Tapping, Hex Head 1/4-20 x .75

$

$

Not available

25

Husqvarna 532190514

Cover Drive
(Superseded to 532400783)

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532750634

Screw, Threaded, Rolled #10-25 x .50

$6.49

$

In Stock, Qty 5

0

27

Husqvarna 532052160

Washer

$

$

Not available

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532189403

Cover, Dust, Wheel
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

30

Husqvarna 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532184172

Seal, Friction

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532180774

Wheel, Driven, Rear 9 x 2
(Superseded to 532193139)

$66.99

$

In Stock, Qty 5

0

33

Husqvarna 532083923

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532180626

Hubcap
(Superseded to 532150182)

$

$

Not available

35

Husqvarna 532191205

Shaft Assembly, Rear
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532164550

Shaft Assembly, Front
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

Retainer, Front Shaft

$

$

Not available

38

Husqvarna 532163409

Screw #12 x 5/8

$7.49

$

In Stock, Qty 6

0

39

Husqvarna 532700279

Clip, Retainer

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532150339

Wheel, Front 8 x 2

$37.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532188330

Pinion Assembly, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

42

Husqvarna 532145212

Nut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532188331

Pinion Assembly, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

44

Husqvarna 532182212

V-Belt
(Superseded to 531300775)

$

$

Not available

45

Husqvarna 532175098

Pawl

$6.49

$

In Stock, only 2 left!

0

46

Husqvarna 532188291

Spring, Torsion

$4.99

$

In Stock, only 3 left!

0

47

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

48

Husqvarna 532175105

Retainer, Drive, LH

$

$

Not available

49

Husqvarna 532175103

Gear, Pinion

$

$

Not available

50

Husqvarna 532175102

Retainer, Drive, RH

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532187530

Case, Lower

$11.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532187531

Case, Upper

$26.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532187532

Gear, 24 Teeth

$14.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532187533

Shaft, Input

$30.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532183505

Wire, Formed

$6.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

58

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532191249

Shaft, Output
(Superseded to 532188645)

$133.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 2 left!

0
