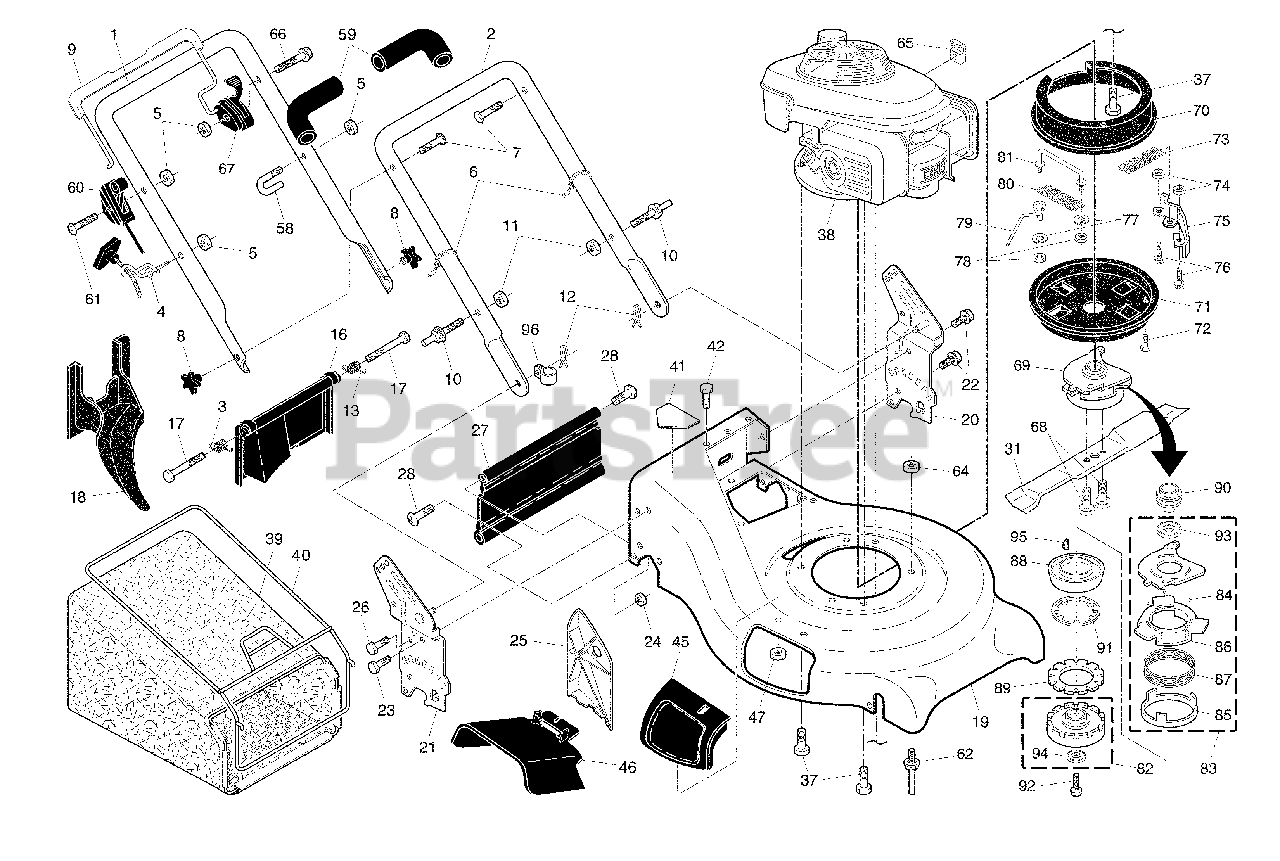

5521 BBC (961430013-03) - Husqvarna 21" Walk-Behind Mower (2007-11) Frame Parts Diagram

21" Walk-Behind Mower

Frame Parts Diagram

  • Title
1

Husqvarna 532189740

Handle, Upper

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532197202

Handle, Lower

$

$

Not available

3

Husqvarna 532405416

Spring, Rear Door, RH

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532194788

Guide, Rope, Side
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

Nut, Hex Lockwasher Insert 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

Wire, Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

Bolt, Handle 5/16-18 x 1.75

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 532185588

Knob, Handle

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532412172

Bar, Control, Auto-Walk

$

$

Currently unavailable

10

Husqvarna 532188821

Bolt, Carriage

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 532751153

Nut, Hex, Centerlock 5/16-18 UNC

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 532051793

Cotter, Hairpin

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532405415

Spring, Rear Door, LH

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 532408888

Rear Door Assembly
(Superseded to 532401815)

$

$

Not available

17

Husqvarna 532184193

Bolt, Rear Door

$

$

Not available

18

Husqvarna 532198170

Plug, Mulcher

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532410871

Kit, Housing

$113.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532194029

Handle Bracket Assembly, LH
(Superseded to 532193917)

$

$

Not available

21

Husqvarna 532194031

Handle Bracket Assembly, RH

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

Screw, Hex Washer Head
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

Bolt, Hex Head 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

Nut, Hex, with Lock Washer Insert 5/16-18

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

Baffle, Side

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

Screw 12 x 5/8

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532408442

Skirt, Rear

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1.25

$7.49

$

In Stock, only 2 left!

0

31

Husqvarna 532180459

Blade, 21"

$27.99

$

In Stock, only 1 left!

0

37

Husqvarna 532150406

Bolt, Engine

$7.49

$

Usually ships in 3-10 days

0

38

Engine, Honda, Model No. GCV160 (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

39

Husqvarna 532409726

Grassbag
(Superseded to 532410668)

$

$

Not available

40

Husqvarna 532411951

Frame, Grassbag

$

$

Not available

41

Husqvarna 532404763

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

$

$

Not available

45

Husqvarna 532190510

Mulcher Door Assembly
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

46

Husqvarna 532190512

Deflector, Discharge
(Superseded to 532169699)

$

$

Not available

47

$7.49

$

In Stock, only 1 left!

0

$6.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532182748

Grip, Handle, Foam, Smooth

Note: (one side)

$

$

Not available

60

Husqvarna 532190878

Throttle / Engine Control

$

$

Not available

61

Husqvarna 532183365

Screw, Hex Head 1/4-20 x 2-1/8

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532182131

Belt Guide, Stud

$17.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532197033

Nut, Hex 3/8-16

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532190903

Bracket, Throttle

$6.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532189937

Screw, Hex Washer Head 1/4-20 x 1/2

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532196541

Blade Brake / Clutch Control

$87.99

$

In Stock, only 2 left!

0

68

Husqvarna 532180460

Bolt, Hex Head

$9.99

$

In Stock, only 2 left!

0

69

Blade Brake / Clutch

Note: (Includes Key Numbers 82-95)

$

$

Not available

70

Husqvarna 532190930

Belt Cover, Upper

$27.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532180191

Belt Cover, Lower

$24.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532750097

Screw, Tapping, Hex Washer Head #10-24
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

$5.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873900400

Nut, Hex, Centerlock, Zinc Plated 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

75

Husqvarna 532190929

Bracket
(Superseded to 532188525)

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874780410

Bolt, Hex Cap Head 1/4-20 x 5/8
(Superseded to 539990072)

$3.99

$

In Stock, only 1 left!

0

77

Husqvarna 532053998

Washer, Flat

$

$

Not available

78

Husqvarna 873510600

Nut, Hex 3/8-16

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532188545

Belt Keeper

$15.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532180188

Link, Torque

$15.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532195049

Holder Assembly, Blade

$122.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532195072

Plate Assembly, Ball Control

$

$

Not available

84

Husqvarna 532195053

Ball, Steel

$21.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532195073

Plate, Spring Hook

$

$

Not available

86

Husqvarna 532195074

Plate, Brake

$46.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532195057

Spring, Ball Plate

$

$

Not available

88

Husqvarna 532195060

Disk, Drive

$

$

Not available

89

Husqvarna 532195063

Disk, Driven

$157.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532195064

Pulley, Drive

$70.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532195065

Spring, Clutch

$30.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532195067

Bolt, Flange (10 x 24)

$

$

Not available

93

Husqvarna 532195068

Bearing, Radial Ball (6006)

$75.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532195069

Bearing, Radial Ball (6204)

$

$

Not available

95

Husqvarna 532195070

Key, Woodruff (16 x 15)

$7.99

$

In Stock, only 1 left!

0

96

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0
