5521 BBC (961430013-00) - Husqvarna 21" Walk-Behind Mower (2006-02) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

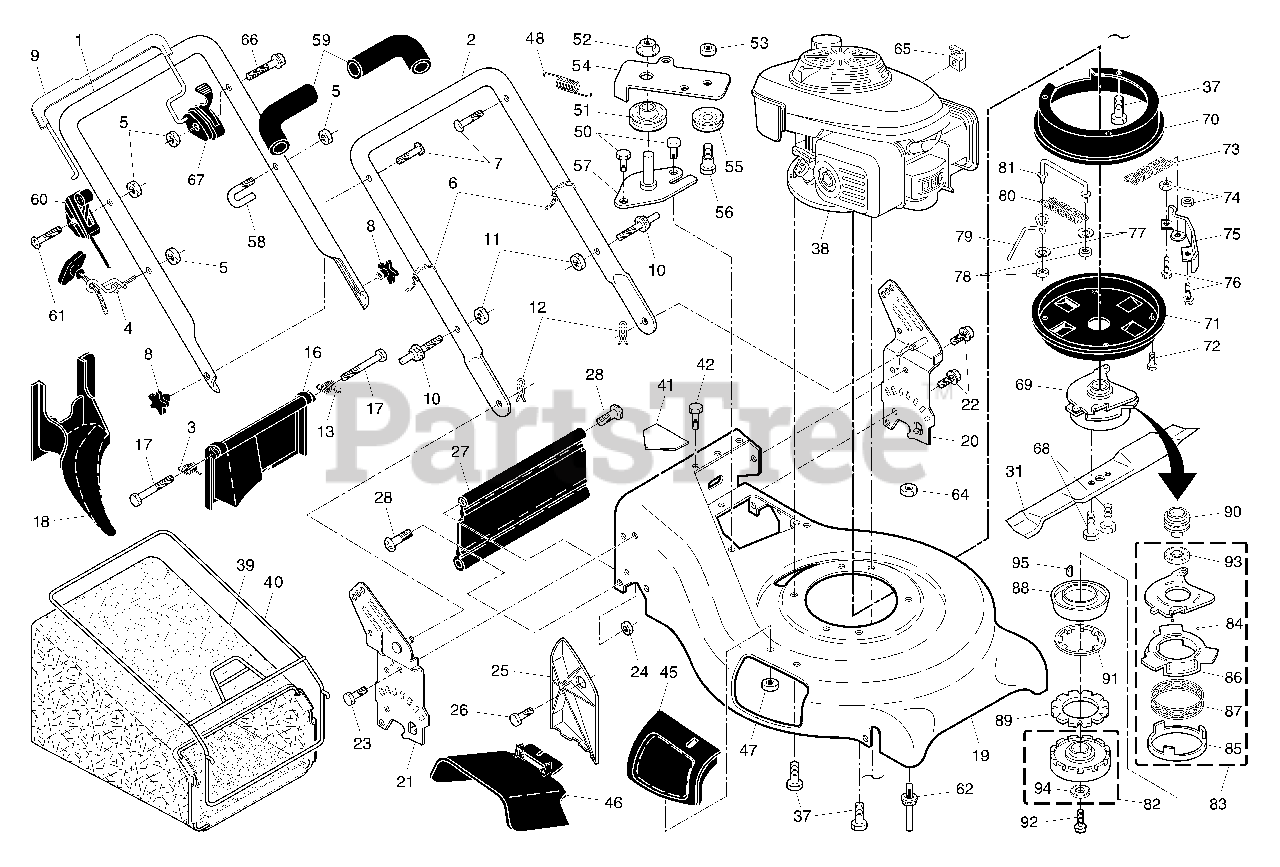

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532189740

Handle, Upper

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532196005

Handle, Lower
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 532186053

Spring, Rear Door, RH

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

Guide, Rope, Side
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

Nut, Hex Lockwasher Insert 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

Wire, Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

Bolt, Handle 5/16-18 x 1.75

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532185588

Knob, Handle

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532194919

Bar, Control, Auto-Walk
(Superseded to 532187138)

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532188821

Bolt, Carriage

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 873930500

Nut, Hex, Centerlock 5/16-18 UNC

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 532051793

Cotter, Hairpin

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532186052

Spring, Rear Door, LH

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532190574

Rear Door Assembly

$44.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184193

Bolt, Rear Door

$

$

Not available

18

Husqvarna 532198170

Plug, Mulcher

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532194539

Kit, Housing
(Superseded to 532410871)

$113.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532194029

Handle Bracket Assembly, LH
(Superseded to 532193917)

$

$

Not available

21

Husqvarna 532194031

Handle Bracket Assembly, RH

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

Screw, Hex Washer Head
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

Bolt, Hex Head 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

Nut, Hex, with Lock Washer Insert 5/16-18

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

Baffle, Side

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

Screw 12 x 5/8

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532188986

Skirt, Rear
(Superseded to 532408442)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1.25

$7.49

$

In Stock, only 2 left!

0

31

Husqvarna 532180459

Blade, 21"

$27.99

$

In Stock, only 1 left!

0

37

Husqvarna 532150406

Bolt, Engine

$7.49

$

Usually ships in 3-10 days

0

38

Engine, Honda, Model No. GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

39

Husqvarna 532401683

Grassbag

$113.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532194644

Frame, Grassbag

$60.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

Screw

$

$

Not available

45

Husqvarna 532190510

Mulcher Door Assembly
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

46

Husqvarna 532190512

Deflector, Discharge
(Superseded to 532169699)

$

$

Not available

47

Husqvarna 532088349

Nut, Hex

$7.49

$

In Stock, only 1 left!

0

48

Husqvarna 532182226

Spring, Return
(Superseded to 532406558)

$8.99

$

In Stock, Qty 7

0

50

Husqvarna 532057808

Screw

$

$

Not available

51

Husqvarna 532193791

Pulley Assembly, V-Groove

$

$

Not available

52

Husqvarna 532145212

Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 532155552

Locknut
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

54

Husqvarna 532196812

Idler Arm
(Superseded to 532193792)

$

$

Not available

55

Husqvarna 532166043

Idler Pulley

$31.99

$

In Stock, only 2 left!

0

56

Husqvarna 532160829

Shoulder Bolt

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 532193315

Bracket Assembly

$6.99

$

In Stock, Qty 5

0

58

Husqvarna 532182003

Clip

$6.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532182748

Grip, Handle, Foam, Smooth (one side)

$

$

Not available

60

Husqvarna 532191257

Throttle / Engine Control

$

$

Not available

61

Husqvarna 532183365

Screw, Hex Head 1/4-20 x 2-1/8

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532182131

Belt Guide, Stud

$17.99

$

Usually ships in 3-10 days

0

64

Husqvarna 873900600

Nut, Hex 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532190903

Bracket, Throttle

$6.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532189937

Screw, Hex Washer Head 1/4-20 x 1/2

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532196541

Blade Brake / Clutch Control

$87.99

$

In Stock, only 1 left!

0

68

Husqvarna 532180460

Bolt, Hex Head

$9.99

$

In Stock, only 2 left!

0

69

Blade Brake / Clutch

Note: (Includes Key Numbers 82-95)

$

$

Not available

70

Husqvarna 532190930

Belt Cover, Upper

$27.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532180191

Belt Cover, Lower

$24.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532750097

Screw, Tapping, Hex Washer Head #10-24
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

73

Husqvarna 532180393

Spring

$5.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873900400

Nut, Hex, Centerlock, Zinc Plated 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

75

Husqvarna 532190929

Bracket
(Superseded to 532188525)

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874780410

Bolt, Hex Cap Head 1/4-20 x 5/8
(Superseded to 539990072)

$3.99

$

In Stock, only 1 left!

0

77

Husqvarna 532053998

Washer, Flat

$

$

Not available

78

Husqvarna 873510600

Nut, Hex 3/8-16

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532188630

Belt Keeper

$

$

Not available

80

Husqvarna 532180394

Spring

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532180188

Link, Torque

$15.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532195049

Holder Assembly, Blade

$122.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532195072

Plate Assembly, Ball Control

$

$

Not available

84

Husqvarna 532195053

Ball, Steel

$21.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532195073

Plate, Spring Hook

$

$

Not available

86

Husqvarna 532195074

Plate, Brake

$46.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532195057

Spring, Ball Plate

$

$

Not available

88

Husqvarna 532195060

Disk, Drive

$

$

Not available

89

Husqvarna 532195063

Disk, Driven

$157.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532195064

Pulley, Drive

$70.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532195065

Spring, Clutch

$30.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532195067

Bolt, Flange (10 x 24)

$

$

Not available

93

Husqvarna 532195068

Bearing, Radial Ball (6006)

$75.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532195069

Bearing, Radial Ball (6204)

$

$

Not available

95

Husqvarna 532195070

Key, Woodruff (16 x 15)

$7.99

$

In Stock, only 1 left!

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532400515

Owner’s Manual, English / French

$

$

Not available
