5521 BBC (961430013-00) - Husqvarna 21" Walk-Behind Mower (2005-11) REPAIR PARTS Parts Diagram

21" Walk-Behind Mower

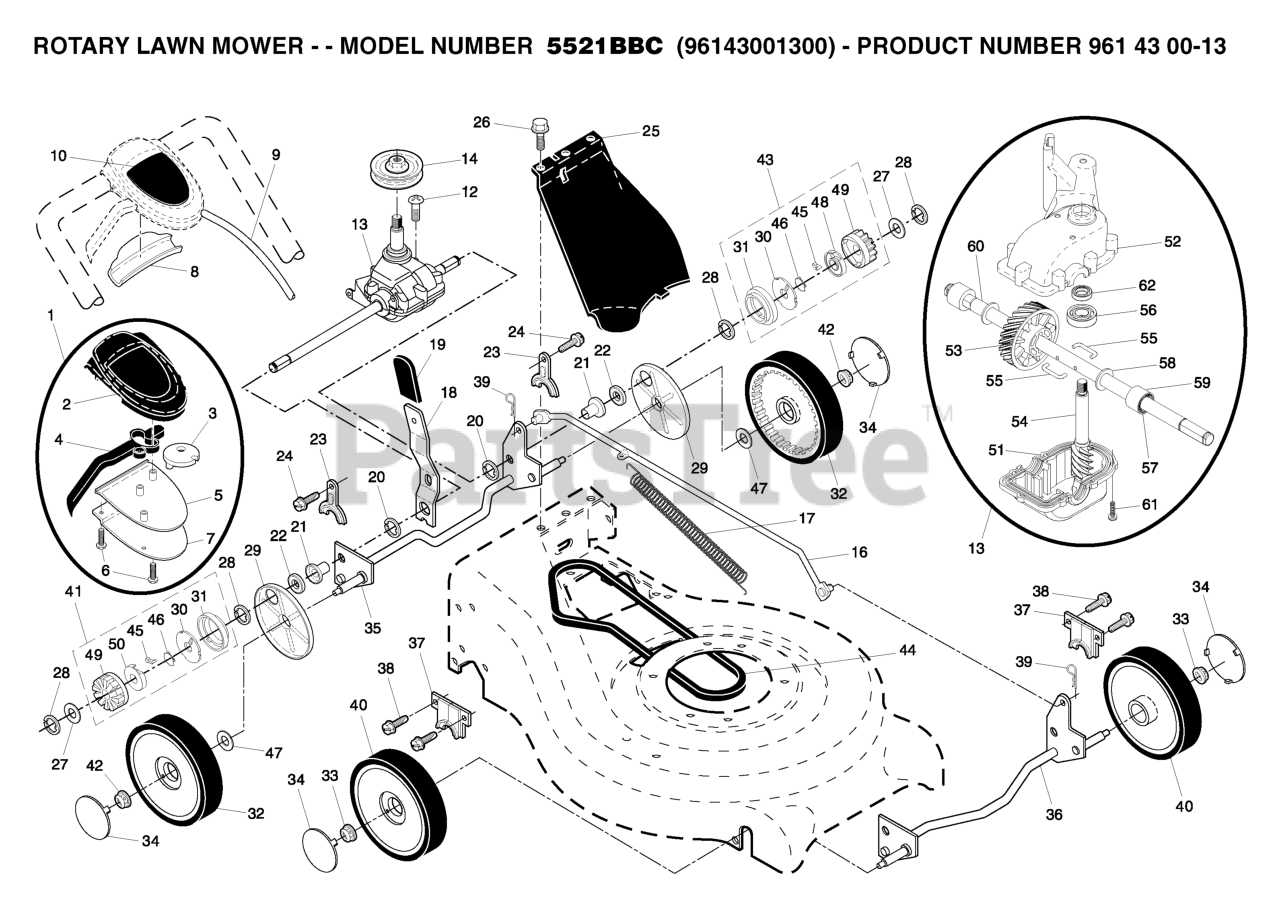

REPAIR PARTS Parts Diagram

  • Title
36

Husqvarna 532193438

SHAFT ASM FRONT
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

44

Husqvarna 532182212

V-BELT
(Superseded to 531300775)

$

$

Not available

$20.99

$

In Stock, Qty 10

0

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

42

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532169911

BEARING, BALL

$

$

Not available

$

$

Not available

53

Husqvarna 532187532

GEAR.24.TOOTH.WALK.MOWER

$14.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532187531

CASE, UPPER

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532163365

RP BEARING SUPPORT
(Superseded to 532169920)

$

$

Not available

59

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.49

$

In Stock, only 2 left!

0

56

$8.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532187530

CASE, LOWER

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

17

Husqvarna 532161602

SPRING
(Superseded to 532409616)

$7.49

$

In Stock, only 2 left!

0

46

Husqvarna 532188291

SPRING, TORSION

$4.99

$

In Stock, only 3 left!

0

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532184172

SEAL.PINION

$7.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532183514

SEAL INPUT SHAFT

$7.99

$

In Stock, only 2 left!

0

57

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, only 1 left!

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532189074

DECAL.DRIVE.CONTROL.HV

$

$

Not available

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$7.49

$

In Stock, Qty 6

0

30

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532190622

KNOB, SELECTOR SPRING
(Superseded to 532189808)

$

$

Not available

1

Husqvarna 532196755

CONTROL.DR.AW.GRY.RWGD.BLACK

$72.99

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532150339

WHEEL.8X2.PR.LP.RADII.BLK

$

$

Not available

49

Husqvarna 532175103

GEAR, PINION

$

$

Not available

60

Husqvarna 532190948

SHAFT OUTPUT (12215)

$60.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532175102

RETAINER, DRIVE, RH

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

9

Husqvarna 532196784

DRIVE CONTROL CABLE

$

$

Not available

32

Husqvarna 532193139

KIT.WHL.9X2.RAD.BLK(SERV ONLY)

$66.99

$

In Stock, Qty 5

0

13

Husqvarna 532188645

TRANSMISSION.21.RWGD.EZ/AW/VS
(Superseded to 532414282)

$133.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532196162

SPRING.SELECTOR.SPT.21
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532161584

ROD CONNECTING
(Superseded to 532414284)

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532195762

CASE BOTTOM
(Superseded to 532414555)

$

$

Not available

2

Husqvarna 532195761

CASE.TOP.GRAY
(Superseded to 532414555)

$

$

Not available

35

Husqvarna 532196016

SHAFT.ASM.REAR.TORQUE
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

39

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532187533

SHAFT INPUT

$30.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

25

Husqvarna 532400783

COVER.DRIVE.21.RWGD.MO

$12.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

55

Husqvarna 532191249

RP.SHAFT.OUTPUT.RGD.VS/EZ
(Superseded to 532188645)

$133.99

$

Usually ships in 3-10 days

0
