5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower Cutter Deck Parts Diagram

21" Wide Area Walk-Behind Mower

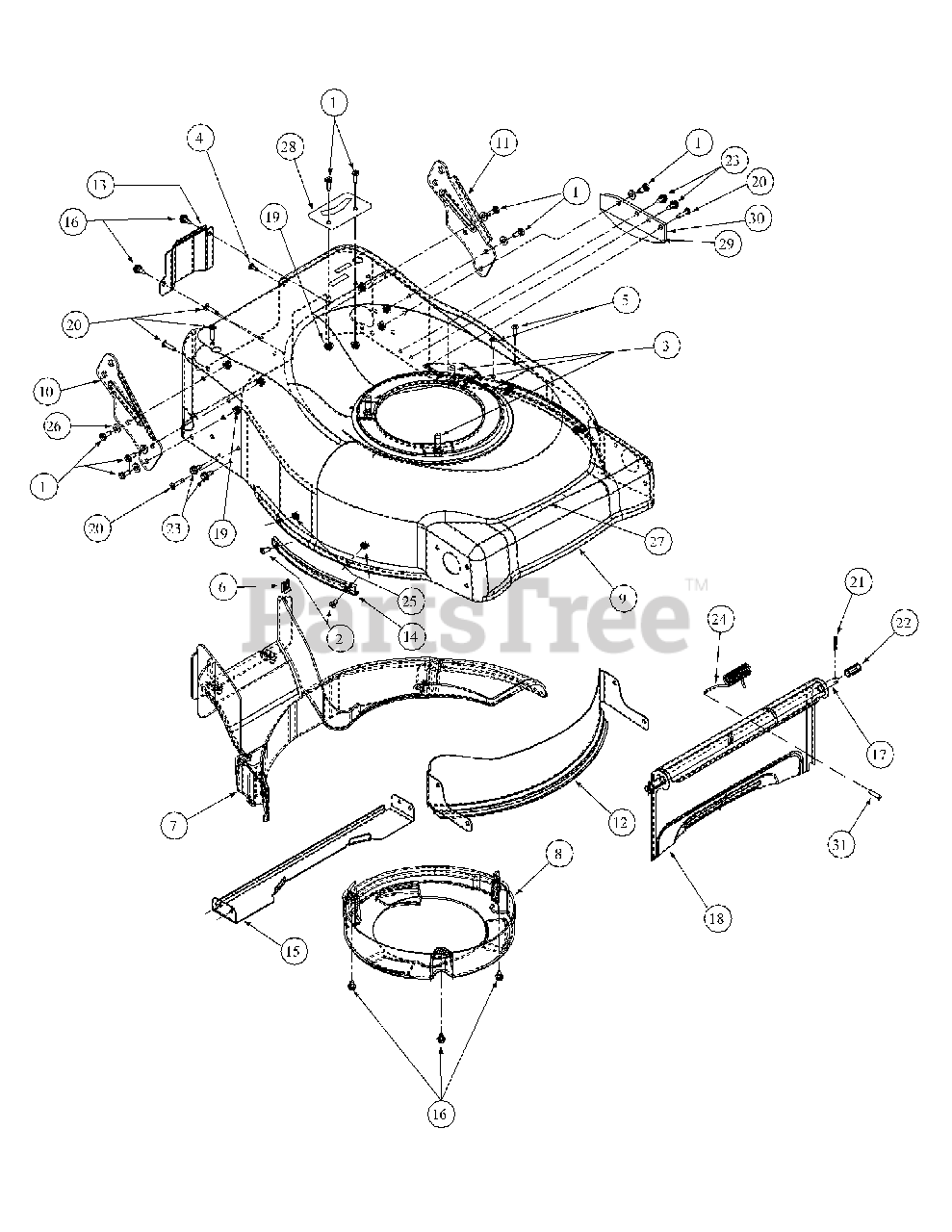

Cutter Deck Parts Diagram

  • Title

1

Cub Cadet 710-0751

HHCS, 1/4-20, .620, GR5, Standard

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3256

Screw Button HD, 1/4-20 x .5

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0502A

Screw, TTSems, 3/8-16, 1.250, HXLWS

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0351

Screw, B, 10-16, 0.500, TRUSTRX1

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-1220

Screw, HL, 12-16:0.750, TRUSTRX1

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet 912-0400

U-Nut, 10-16

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01000885

Baffle, RR, 21" Commercial

$

$

Not available

8

Cub Cadet 01000886

Cover, 21" Commercial

$

$

Not available

9

Cub Cadet 01005332P

Deck, 21" Commercial

$

$

Not available

10

Cub Cadet 01001669

Handle Bracket, RH Commercial

$

$

Not available

11

Cub Cadet 01001671

Handle Bracket, LH Commercial

$

$

Not available

12

Cub Cadet 01002792

Front Baffle Commercial 10.81 R

Note: NLA

$

$

Not available

13

Cub Cadet 01002796

Transmission Cover Plate

$

$

Not available

14

Cub Cadet 01002801

Deck Guard Side Flange

Note: NLA

$

$

Not available

15

Cub Cadet 01002803

Baffle Support Bracket

$

$

Not available

16

Cub Cadet 710-0653

Screw, TT, 1/4-20, 0.375, Hex Indicator Washer

$4.49

$

In Stock, Qty 13

0

17

Cub Cadet 01002524

Chute Door Pivot Rod, .375 Dia

$

$

Not available

18

Cub Cadet 01002793

Door, Grassbag, 21" RB

$

$

Not available

19

Cub Cadet 912-3027

Nut, 1/4-20, Hex Flange, Lock Group F

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0969

Screw, HL, 12-16, 1.000, TRUSTRXI

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 914-0104

Cotter Pin, INT .072 x 1.12 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 750-0434

Spacer, .375 x .50 x 1.02 LG

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01002775

Screw, AB, 1/4-14, 0.625, Hex Indicator Washer

$

$

Not available

24

Cub Cadet 932-0809

Torsion Spring, LH 0.120 x 15C

$18.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0324

Lock Hex Nut, 1/4-20

$3.99

$

In Stock, Qty 17

0

26

Cub Cadet 936-0463

Flat Washer, 1/4 x .630 x x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 01004521

Label 21" Commercial

$

$

Not available

28

Cub Cadet 01005408

Shift Selector Bracket

$

$

Not available

29

Cub Cadet 01005627

Rubber Flap Deflector

Note: NLA

$

$

Not available

30

Cub Cadet 01006946

Flap Deflector Bracket

$

$

Not available

31

Cub Cadet 01004104

Vinyl Spring Cap

$

$

Not available
