5521 (31AS2B5-766) - Troy-Bilt Squall 21" Snow Thrower (2005) Drive Parts Diagram

Squall 21" Snow Thrower

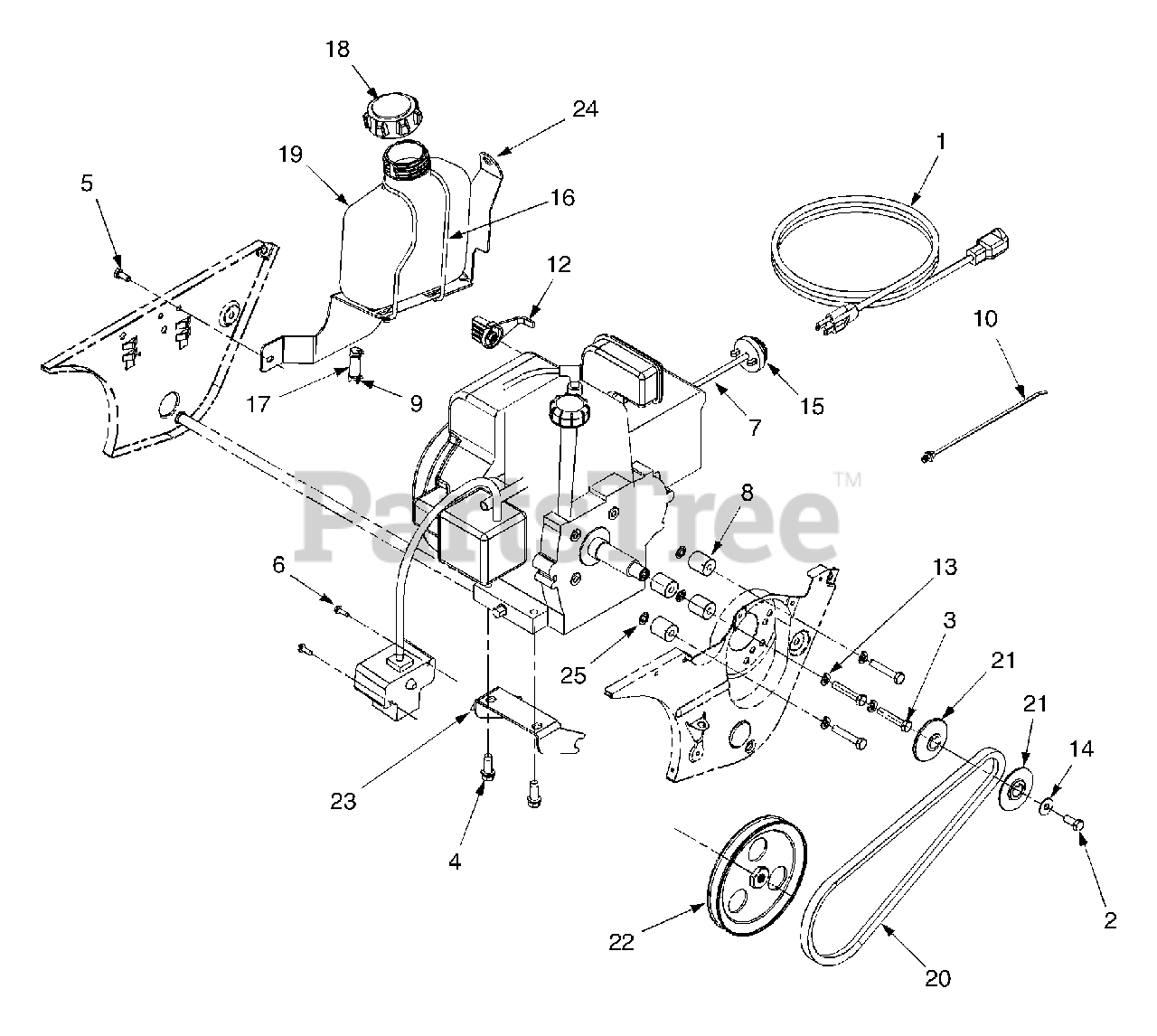

Drive Parts Diagram

  • Title
1

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-0627

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0409

Hex Screw, 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0654A

Self Tapping Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

5

Troy-Bilt 710-0896

Hex Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 7511152847

Primer Hose
(Superseded to TC-32180C)

$6.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 750-04297

Spacer, Engine
(Superseded to 750-04297B)

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

10

Troy-Bilt 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-2825

Knob, Choke

$17.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0149

Bell Washer, .349 x .879 x .063

$

$

Currently unavailable

15

Troy-Bilt 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

16

MTD 747-04169

Support, Wire Gas Tank

$

$

Not available

17

Troy-Bilt 751-0535

Hose, Fuel Line

$

$

Currently unavailable

18

Troy-Bilt 751-10049

Cap, Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 751-10023

Tank, Fuel
(Superseded to 951-10023)

$

$

Not available

20

Troy-Bilt 754-0101A

V-Belt, 1/2
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 756-0416B

Pulley Half, .625 ID x 2.25 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 756-0475

Pulley, 1/2 V 1/2-20 LH x 6.0

$79.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 790-00047

Bracket, Engine
(Superseded to 790-00047-0637)

Variations

Troy-Bilt 790-00047-0637

BRACKET-ENGINE - POWDER BLACK

$

$

Not available

$

$

24

Troy-Bilt 790-00134

Bracket Support Gas Tank
(Superseded to 790-00134-0637)

Variations

Troy-Bilt 790-00134-0637

BRACKET-FUEL TANK - POWDER BLACK

$

$

Not available

$

$

25

Troy-Bilt 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0
