55166 (880) - Toro Lawn Tractor, Electric (SN: 003000001 - 003999999) (1973) Front Axle Assembly Parts Diagram

Lawn Tractor, Electric

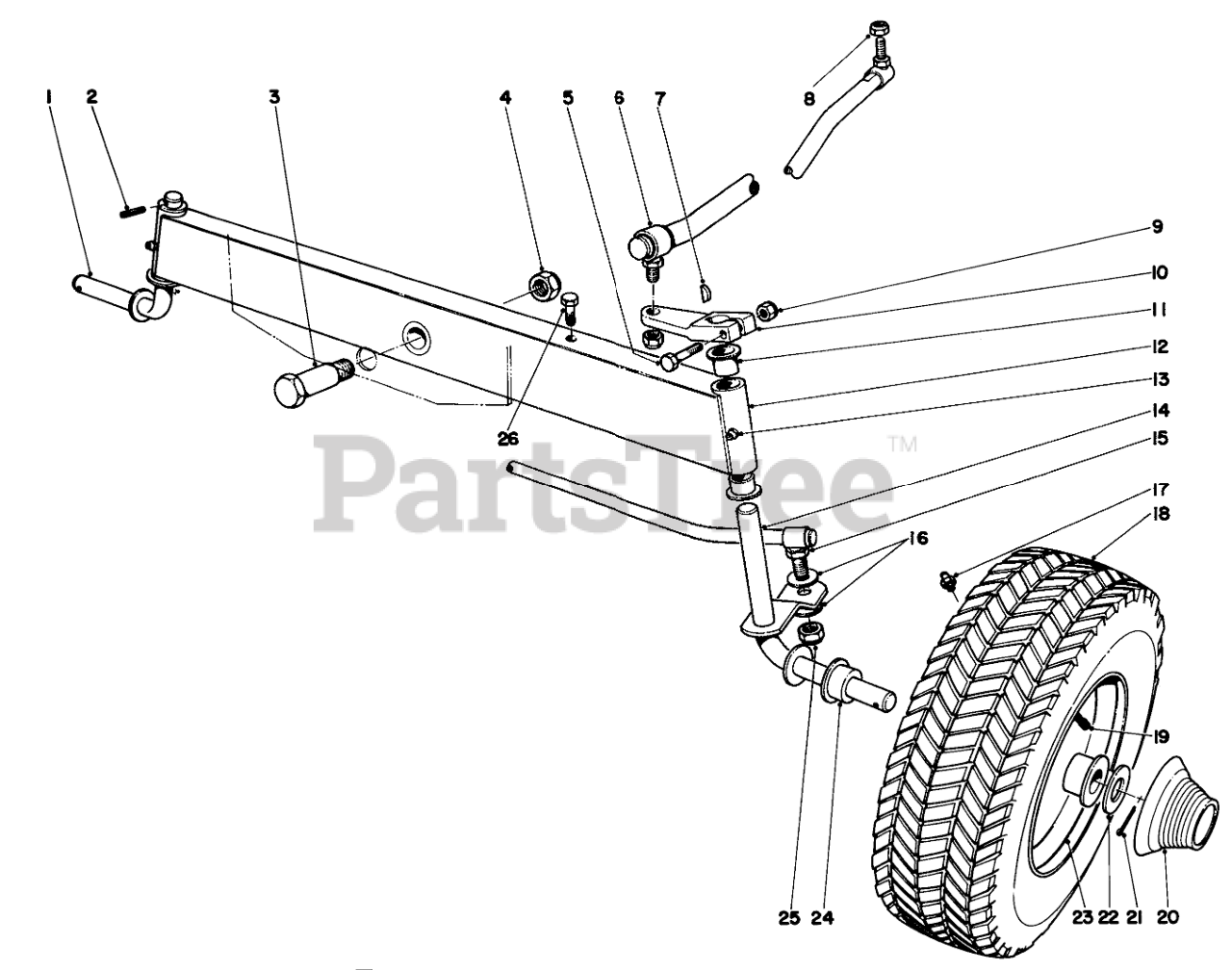

Front Axle Assembly Parts Diagram

  • Title

1

Toro 7-4061

DISCONTINUED

$

$

Not available

2

Toro 32121-24

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

3

Toro 7-3884

DISCONTINUED

$

$

Not available

4

Toro 32152-3

DISCONTINUED

$

$

Not available

5

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

6

Toro 7-6330

DISCONTINUED

$

$

Not available

7

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

8

Toro 32146-12

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

9

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

10

Toro 7-4067

Arm Drag Link

$

$

Currently unavailable

11

Toro 256-136

3/4IDX1LG FLANGE BSHG

$

$

Not available

12

Toro 74057

Front Axle (Incl. Ref. #11)

$

$

Currently unavailable

13

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

14

Toro 74064

Spindle

$

$

Currently unavailable

15

Toro 7-4078

DISCONTINUED OBS

$

$

Not available

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

18

Toro 231-49

See Supercession: 231-115
(Superseded to 231-115)

$96.99

$

Usually ships in 3-6 days

0

19

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

20

Toro 7-3932

DISCONTINUED

$

$

Not available

21

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

22

Toro 7-0126

DISCONTINUED

$

$

Not available

23

Toro 241-105

Rim

$

$

Currently unavailable

24

Toro 256-175

DISCONTINUED

$

$

Not available

25

Toro 32146-12

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

26

Toro 32104-6

SCREW-HH, TAP

$4.49

$

Usually ships in 3-6 days

0
