55166 (880) - Toro Lawn Tractor, Electric (SN: 002000001 - 002999999) (1972) Model 190707-0626 Engine Assembly (electric Start) Briggs Stratton Parts Diagram

Lawn Tractor, Electric

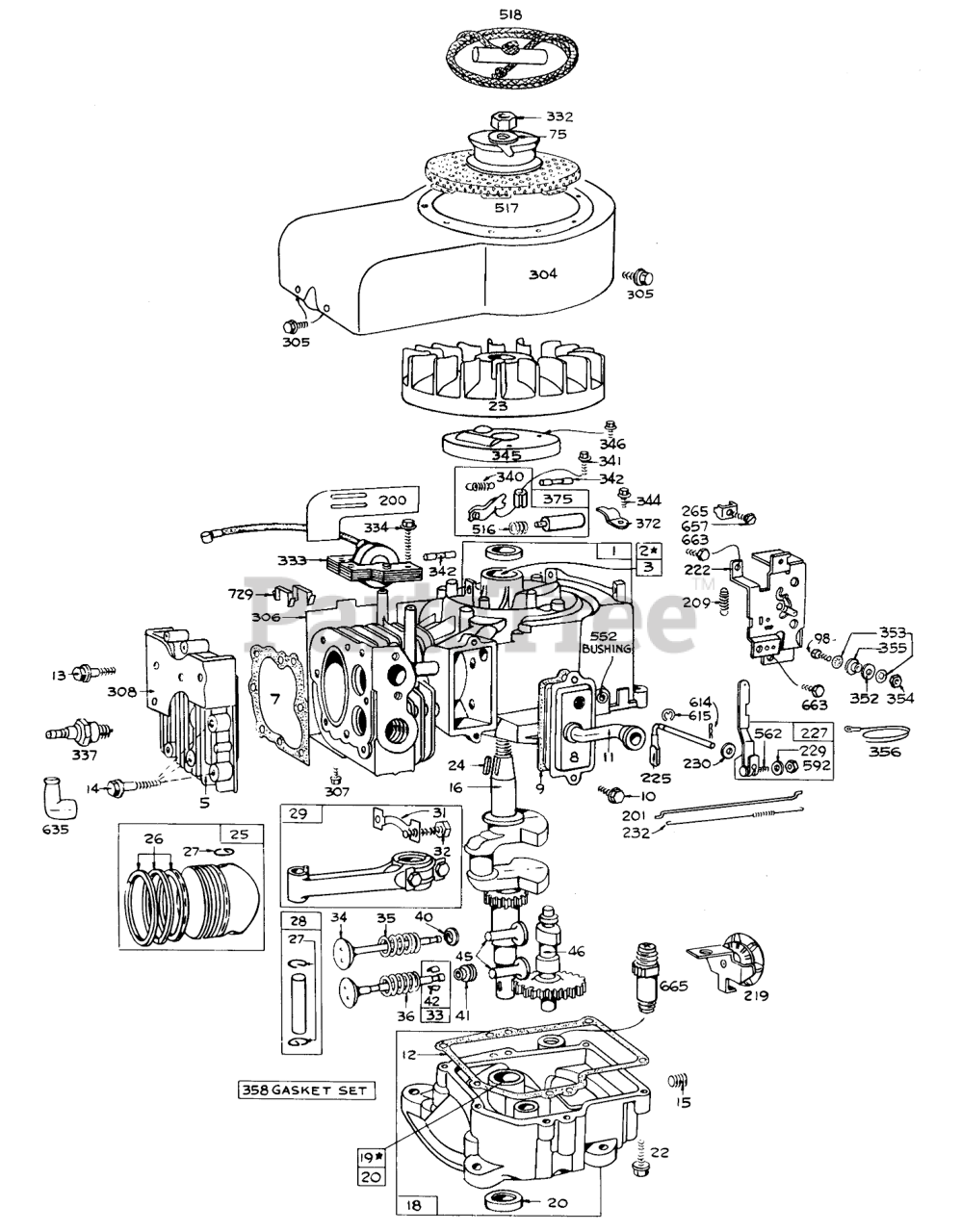

Model 190707-0626 Engine Assembly (electric Start) Briggs Stratton Parts Diagram

  • Title

1

Toro 390380

Cylinder Assembly

$

$

Currently unavailable

2

Toro 295962

Bushing-Cylinder

$

$

Currently unavailable

3

Toro 294606

Seal-Oil

$

$

Currently unavailable

5

Toro 211778

Head-Cylinder

$

$

Currently unavailable

7

Toro 270430

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

8

Toro 299848

Breather Assembly

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

10

Toro 93536

Screw

$

$

Currently unavailable

11

Toro 280005

Grommet

$

$

Currently unavailable

12

Toro 27750

Gasket-Crankcase Cover 1/64" Thick

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

Toro 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

Toro 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577

$3.23

$

Usually ships in 3-6 days

0

13

Toro 93210

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93211

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 93418

Plug

$

$

Currently unavailable

16

Toro 261083

Crankshaft

$

$

Currently unavailable

18

Toro 298616

Sump-Oil

$

$

Currently unavailable

19

Toro 295963

Bushing

$

$

Currently unavailable

20

Toro 298423

Seal-OiI

$

$

Currently unavailable

22

Toro 93585

Screw-Sem

$

$

Currently unavailable

23

Toro 390180

Flywheel-Magneto

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

25

Toro 390347

Piston Assembly-Std.

$

$

Currently unavailable

Toro 390348

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 390349

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 390350

Piston Assy., .030" O.S.

$

$

Currently unavailable

26

Toro 299569

Ring Set-Piston-Std. Consists of:

$

$

Currently unavailable

Toro 211637

Ring,Piston,Comp.,Top Std.

$

$

Currently unavailable

Toro 211636

Ring, Piston, Comp., Center, Std.

$

$

Currently unavailable

Toro 211635

Ring,Piston,Oil,Std.

$

$

Currently unavailable

Toro 299570

Yoke Bushing

$

$

Currently unavailable

Toro 211649

Ring,Piston,Comp.,Top,.010" O.S.

$

$

Not available

Toro 211650

Ring,Piston,Comp.,Center,.010" O.S.
(Superseded to 705730)

$

$

Not available

Toro 211651

Ring Piston, Oil, .010" O.S.

$

$

Currently unavailable

Toro 299571

Ring Set-Piston-.020" O.S. Consists of:

$

$

Currently unavailable

Toro 211653

Ring,Piston,Comp.,Top,.020" O.S.

$

$

Currently unavailable

Toro 211654

Ring-Piston, Comp., Center, .020" O.S.
(Superseded to 743078)

$

$

Not available

Toro 211655

Ring-Piston, Oil, .020" O.S.

$

$

Currently unavailable

Toro 299572

Ring Set-Piston-.030" O.S. Consists of:

$

$

Currently unavailable

Toro 211657

Ring, Piston, Comp.

$

$

Not available

Toro 211658

Ring-Piston, Comp., Center, .030" O.S.

$

$

Not available

Toro 211659

Ring-Piston, Oil, .030" O.S.

$

$

Currently unavailable

27

Toro 68546

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 295840

Assembly-Piston-Std

$

$

Currently unavailable

Toro 295841

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Toro 390402

Rod-Connecting

$

$

Currently unavailable

31

Toro 222114

Lock-Conn. Rod Screw

$

$

Currently unavailable

32

Toro 92659

Screw Conn. Rod

$

$

Currently unavailable

33

Toro 390419

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261055

VaIve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 260933

Tappet-Valve

$

$

Currently unavailable

46

Toro 210728

Gear-Cam

$

$

Currently unavailable

75

Toro 220865

Washer

$

$

Currently unavailable

200

Toro 221760

Guide-Air

$

$

Not available

201

Toro 260971

Link-Govemor

$

$

Currently unavailable

209

Toro 261129

Spring-Governor

$

$

Currently unavailable

219

Toro 298614

Oil Slinger, Gov. Gear and Bracket Assembly

$

$

Currently unavailable

222

Toro 390662

Plate-Gov. Control

$

$

Currently unavailable

225

Toro 230759

Shaft-Gov Lever

$

$

Not available

227

Toro 298303

Lever Assy.-Governor

$

$

Currently unavailable

229

Toro 220680

Washer

$

$

Currently unavailable

230

Toro 221559

Clamp-Casing

$

$

Currently unavailable

232

Toro 260584

Spring-Governor Link

$

$

Currently unavailable

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

304

Toro 299392

Housing-Blower

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

306

Toro 221898

Screw-Cylinder

$

$

Currently unavailable

307

Toro 93163

Screw

$

$

Currently unavailable

308

Toro 221901

Cover-Cylinder Head

$

$

Currently unavailable

309

Toro 390307

Motor-Starting

$

$

Currently unavailable

332

Toro 92284

Nut

$

$

Currently unavailable

333

Toro 298968

Armature Assembly

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

344

Toro 93042

Screw

$

$

Currently unavailable

345

Toro 222117

Cover-Breaker Point

$

$

Currently unavailable

346

Toro 93014

Screw

$

$

Currently unavailable

352

Toro 66068

Washer-Insulating

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

355

Toro 66554

Collar-Insulating

$

$

Currently unavailable

356

Toro 299500

Wire-Ground

$

$

Currently unavailable

358

Toro 299577

Gasket Set

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

375

Toro 294628

Set

$

$

Currently unavailable

Toro 294628

Set

$

$

Currently unavailable

Toro 65704

Plunger

$

$

Currently unavailable

Toro 61760

Key Flywheel

$

$

Currently unavailable

516

Toro 260374

Spring Connector

$

$

Currently unavailable

517

Toro 295423

Pulley-Rope Starter (with screen)

$

$

Currently unavailable

518

Toro 69932

Rope-Starter

$

$

Currently unavailable

552

Toro 230927

Bushing-Governor Shaft

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 90356

Nut

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

663

Toro 93572

Screw

$

$

Currently unavailable

665

Toro 296768

Oil Minder

$

$

Currently unavailable

729

Toro 221907

CIip-Wire

$

$

Currently unavailable
