5516 RT (1693847) - Simplicity Rear-Tine Tiller, 5hp Handle Bar Group Parts Diagram

Rear-Tine Tiller, 5hp

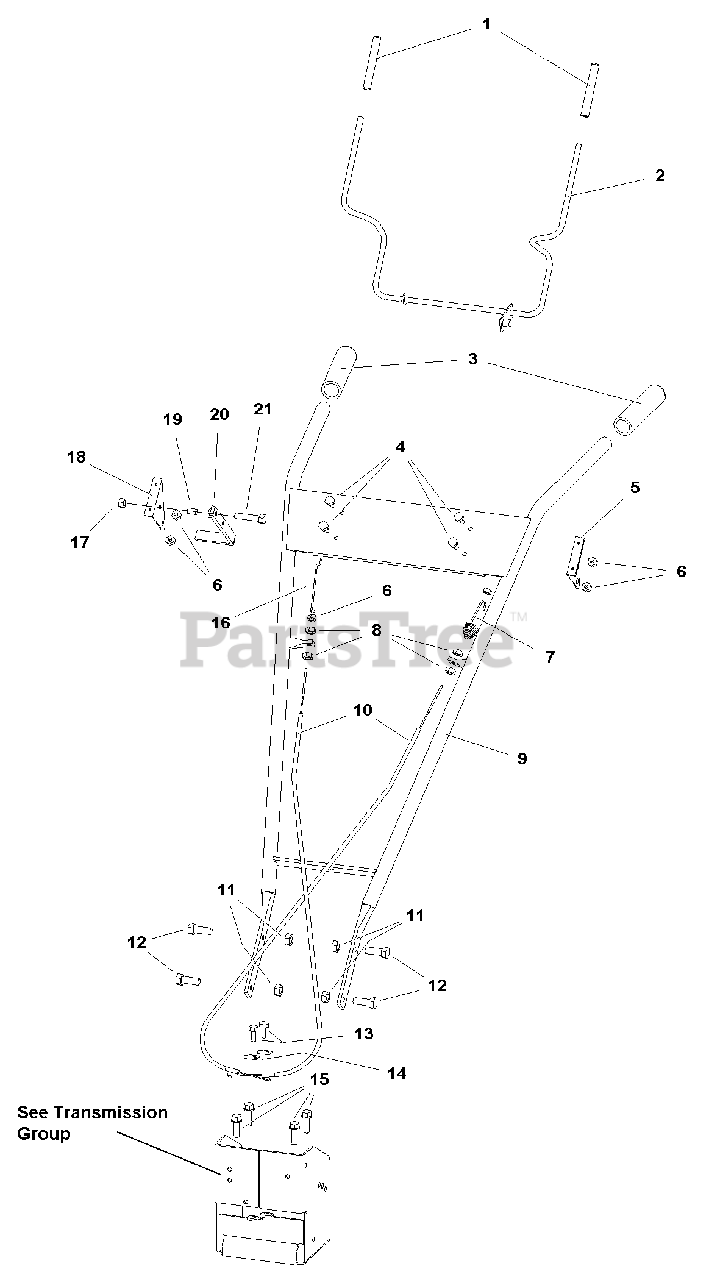

Handle Bar Group Parts Diagram

  • Title

1

Simplicity 1716699SM

HANDLE GRIP, Drive Control Lever

$6.99

$

Usually ships in 2-12 days

0

2

Simplicity 1722325SM

LEVER, Drive Control

$55.99

$

In Stock, only 1 left!

0

3

Simplicity 1719038SM

HANDLE GRIP

$13.99

$

In Stock, only 1 left!

0

4

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1716723SM

BRACKET, Drive Control Lever LH

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 1933896SM

NUT, Hex Lock 10 - 24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1716720SM

SPRING, Forward Cable Adjustment

$

$

Not available

8

Simplicity 2820438SM

NUT, Hex Jam 5/16" - 24NF, 2B

$3.49

$

In Stock, only 2 left!

0

9

Simplicity 1722328SM

HANDLE BAR ASSEMBLY

$

$

Not available

10

Simplicity 1719037SM

CABLE ASSEMBLY

$67.99

$

In Stock, only 1 left!

0

11

Simplicity 1916950SM

NUT, Hex 3/8" - 16NC, 2B
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1921210SM

CAPSCREW, Hex Head 3/8" - 16 x 1" G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

13

Simplicity 1722326SM

CAPSCREW, Hex Head M05, 0.80 x 15MM

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1719063SM

C-CLAMP

$

$

Not available

15

Simplicity 1921332SM

BOLT, Hex Flange Head 5/16" - 18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

16

Simplicity 1716729SM

LINK, Reverse 5.5HP

$42.99

$

Usually ships in 2-12 days

0

17

Simplicity 1935048SM

NUT, Hex Flange 5/16" - 18 Two, Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1716722SM

BRACKET, Drive Control Lever RH

$

$

Not available

19

Simplicity 1716704SM

BUSHING, Pivot 5/16"

$12.99

$

Usually ships in 2-12 days

0

20

Simplicity 1716725SM

HANDLE, Reverse 5.5HP

$23.99

$

Usually ships in 2-12 days

0

21

Simplicity 1921977SM

CAPSCREW, Hex Head 5/16" - 18 x 1-1/4" G5
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0
