55152 (888) - Toro Toromatic Lawn Tractor (SN: 000000001 - 000999999) (1970) REAR TIRE AND FENDER ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

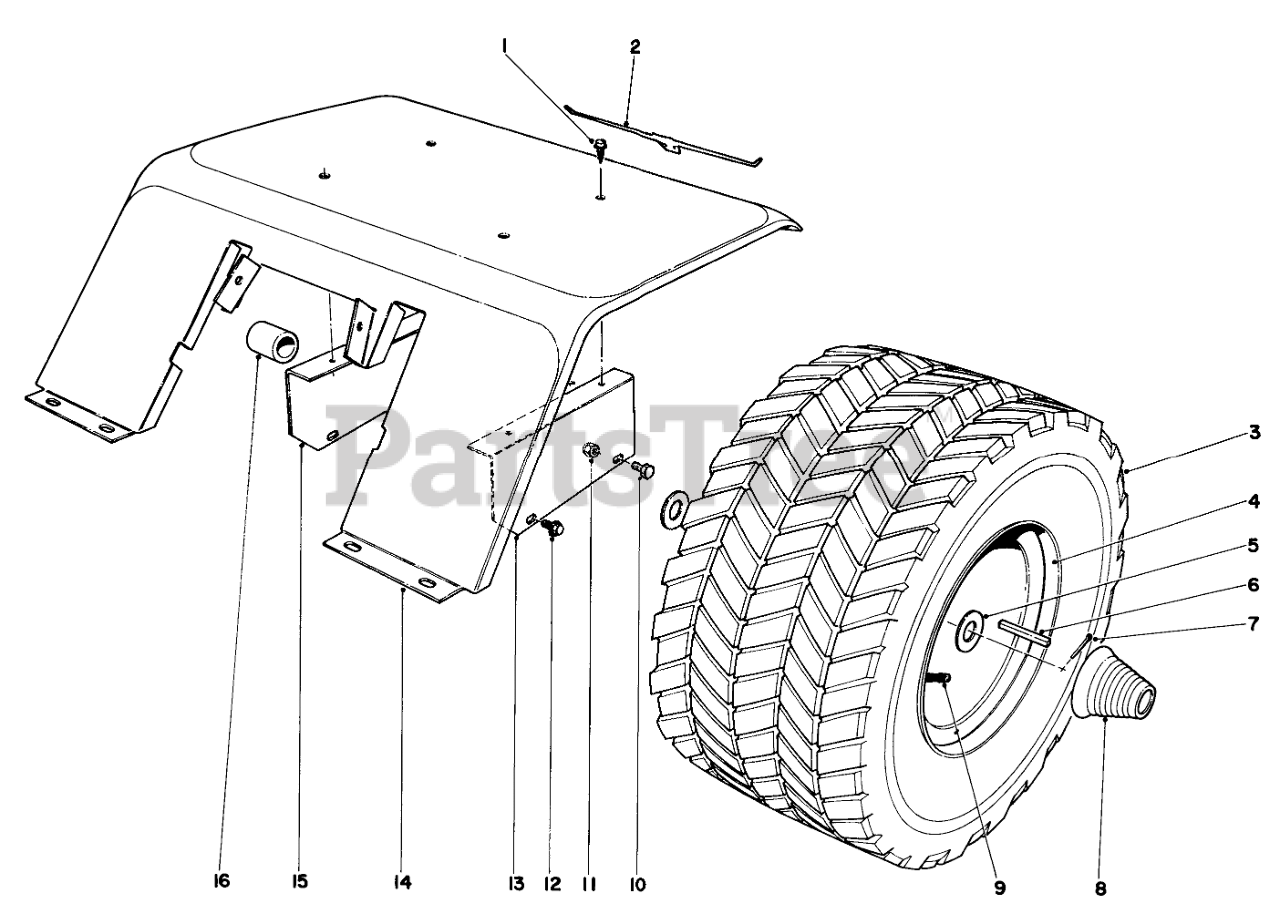

REAR TIRE AND FENDER ASSEMBLY Parts Diagram

  • Title
1

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

2

Toro 7-3908

Decal

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Toro 7-4198

Washer

$

$

Not available

6

Toro 5-1718

KEY-CLUTCH

$

$

Not available

7

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

8

Toro 7-4116

Hub Cap

$

$

Currently unavailable

9

Toro 232-21

VALVE -STEM
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

32152-1S

Nut

$

$

Not available

12

$

$

Currently unavailable

13

Toro 7-4120

Fender Support L.H.

$

$

Not available

14

Toro 7-5120

Fender

$

$

Currently unavailable

15

Toro 7-4118

Fender Support R.H.

$

$

Currently unavailable

16

Toro 7-4197

Spacer

$

$

Currently unavailable

Toro 7-4027

Wheel Assembly

$

$

Currently unavailable
