55152 (888) - Toro Toromatic Lawn Tractor (SN: 000000001 - 000999999) (1970) 36" MOWER ASSEMBLY Parts Diagram

Toromatic Lawn Tractor

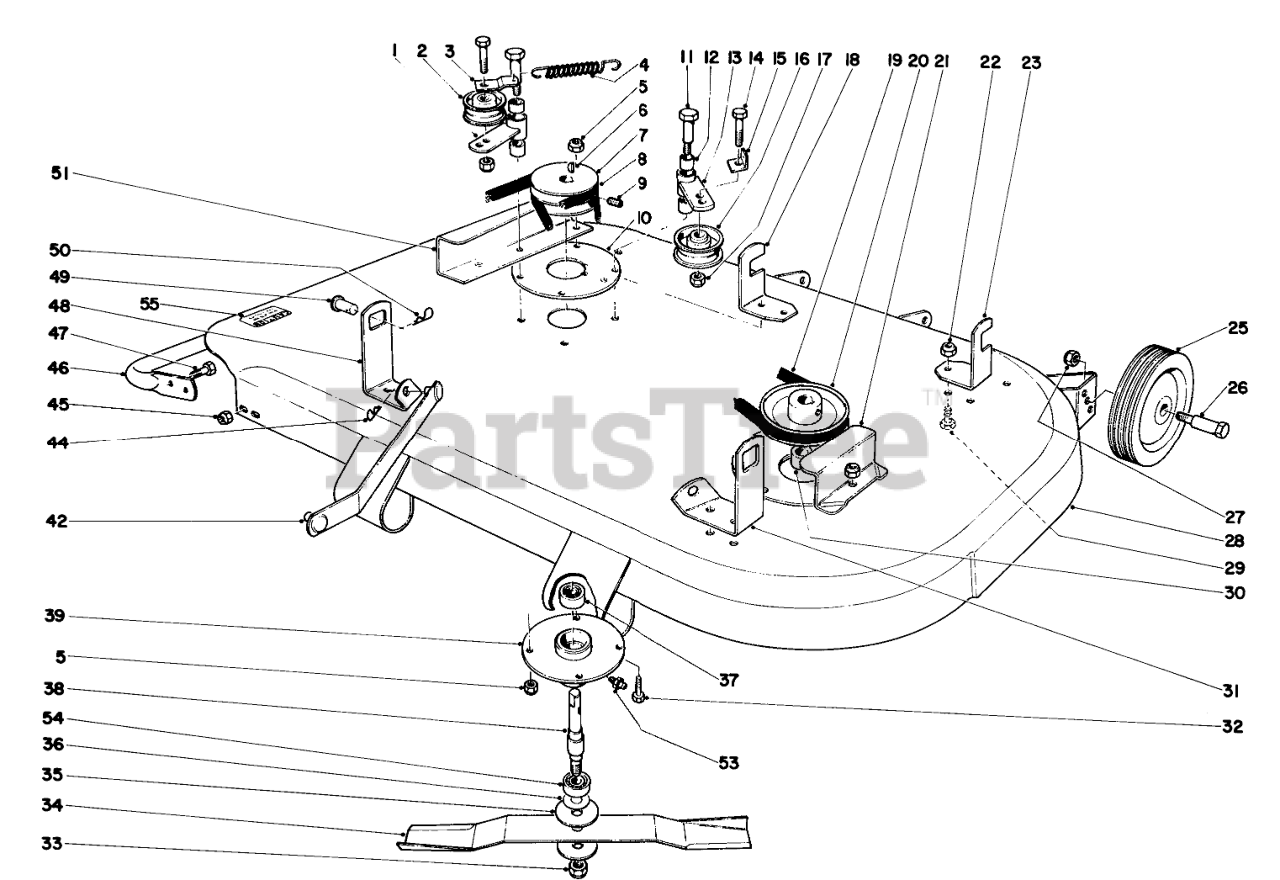

36" MOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3780

Idler Plate (Incl. Ref. #12)

$

$

Currently unavailable

2

Toro 7-4660

Flat Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 1 left!

0

3

Toro 7-4382

Clip

$

$

Currently unavailable

4

Toro 7-3977

Spring Tension

$

$

Not available

5

32152-1S

Nut

$

$

Not available

6

Toro 3257-5

KEY-WOODRUFF

$5.99

$

Usually ships in 3-6 days

0

7

Toro 7-3788

BLD SPDLE PULLEY (MACH)

$

$

Not available

8

Toro 7-4230

Belt
(Superseded to 7-9160)

$

$

Not available

9

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 7-0252

Washer

$

$

Not available

11

Toro 7-3878

SHOULDER BOLT

$

$

Not available

12

Toro 256-172S

Bushing

$

$

Currently unavailable

13

Toro 7-3781

Idler Plate (Incl. Ref. #12)

$

$

Not available

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 7-3976

Clip

$

$

Not available

16

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 2 left!

0

17

Toro 32152-2S

Nut

$

$

Currently unavailable

18

Toro 7-4210

Bracket

$

$

Currently unavailable

19

Toro 7-4228

BELT

$

$

Not available

20

Toro 7-3796

Pulley

$

$

Not available

21

Toro 7-4212

Belt Guard

$

$

Currently unavailable

22

32152-1S

Nut

$

$

Not available

23

Toro 7-4208

Bracket Mower

$

$

Currently unavailable

25

241-87S

Wheel

$

$

Not available

26

Toro 7-0262

Axle

$

$

Currently unavailable

27

Toro 32152-2S

Nut

$

$

Currently unavailable

28

Toro 7-5720

Housing

$

$

Not available

29

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

30

Toro 7-3747

Spacer

$

$

Not available

31

Toro 7-4206

Bracket-Mower

$

$

Not available

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 32152-6S

Nut

$

$

Currently unavailable

34

Toro 7-2464

Blade

$

$

Currently unavailable

35

Toro 7-0253

WASHER

$

$

Not available

36

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

37

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

38

Toro 7-4205

BLADE SPINDLE

$

$

Not available

39

Toro 7-4204

Mower Spindle Housing
(Superseded to 7-0287)

$

$

Not available

42

Toro 7-4111

Tow Bar

$

$

Not available

44

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

45

Toro 32152-4S

Nut

$

$

Currently unavailable

46

Toro 7-4211

Mower Guard

$

$

Not available

47

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

48

Toro 7-4207

Bracket-Mower

$

$

Not available

49

Toro 7-4110

Pin

$

$

Not available

50

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

51

Toro 7-4317

Guard Mower

$

$

Not available

53

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

54

Toro 251-123

.6693 RP BALL BEARING

$

$

Not available

55

Toro 7-6630

Decal

$

$

Currently unavailable

Toro 7-5730

Cutting Attachment, Complete

$

$

Currently unavailable
