55150 (940) - Toro Lawn Tractor, Electric (SN: 009000001 - 009999999) (1969) STARTER MOTOR NO. 32468 Parts Diagram

Lawn Tractor, Electric

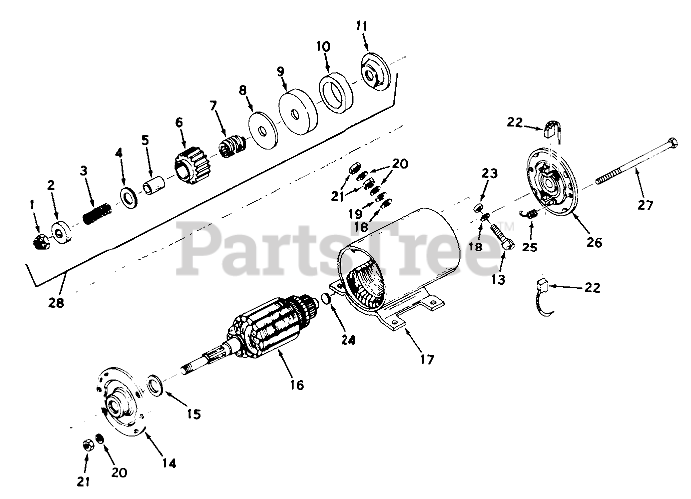

STARTER MOTOR NO. 32468 Parts Diagram

  • Title

1

Tecumseh 32483

Nut, Hex

$

$

Currently unavailable

2

Tecumseh 32484

Setscrew

$

$

Currently unavailable

3

Tecumseh 32485

Spring, Anti drift

$

$

Currently unavailable

4

Tecumseh 32486

Washer, Pinion

$

$

Currently unavailable

5

Tecumseh 32487

Sleeve, Anti drift

$

$

Currently unavailable

6

Tecumseh 32488

Gear, Pinion

$

$

Currently unavailable

7

Tecumseh 32489

Shaft, Screw

$

$

Currently unavailable

8

Tecumseh 32490

Washer, Thrust

$

$

Currently unavailable

9

Tecumseh 32491

Cup, Cushion

$

$

Currently unavailable

10

Tecumseh 32492

Cushion, Rubber

$

$

Currently unavailable

11

Tecumseh 32493

Washer, Thrust

$

$

Currently unavailable

13

Tecumseh 32499

Bolt, Terminal

$

$

Currently unavailable

14

Tecumseh 32494

Cap Assy., Drive end (Incl. Bearing)

$

$

Currently unavailable

15

Tecumseh 32495

Washer, Spacing (.024 Thick)

$

$

Currently unavailable

15

Tecumseh 32496

Washer, Spacing (.008 Thick)

$

$

Currently unavailable

16

Tecumseh 32497

Armature

$

$

Currently unavailable

17

Tecumseh 32498

Housing Assy. (Incl. pole shoes, field coils, terminal post, straight mounting bracket, Nos. 18 thru 21)

$

$

Currently unavailable

18

Tecumseh 32500

Washer, Insulating

$

$

Currently unavailable

19

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 650131

Washer, Lock
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 28710

61710/VAR.HILLER AT
(Superseded to 650864)

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 32505

Brush & Spring Kit
(Superseded to 32838)

$

$

Not available

23

Tecumseh 32501

Bushing, Insulating

$

$

Currently unavailable

24

Tecumseh 32509

Washer, Spring

$

$

Currently unavailable

25

Tecumseh 32507

Spring, Brush

$

$

Currently unavailable

26

Tecumseh 32506

End Cap Assy., Commutator

$

$

Currently unavailable

27

Tecumseh 32508

Bolt, Thru

$

$

Currently unavailable

28

Tecumseh 32481

Drive Assy., Complete (Incl. Nos. 1 thru 11)
(Superseded to 32481A)

$

$

Currently unavailable
