55150 (940) - Toro Lawn Tractor, Electric (SN: 009000001 - 009999999) (1969) 940 CHASSIS ASSEMBLY Parts Diagram

Lawn Tractor, Electric

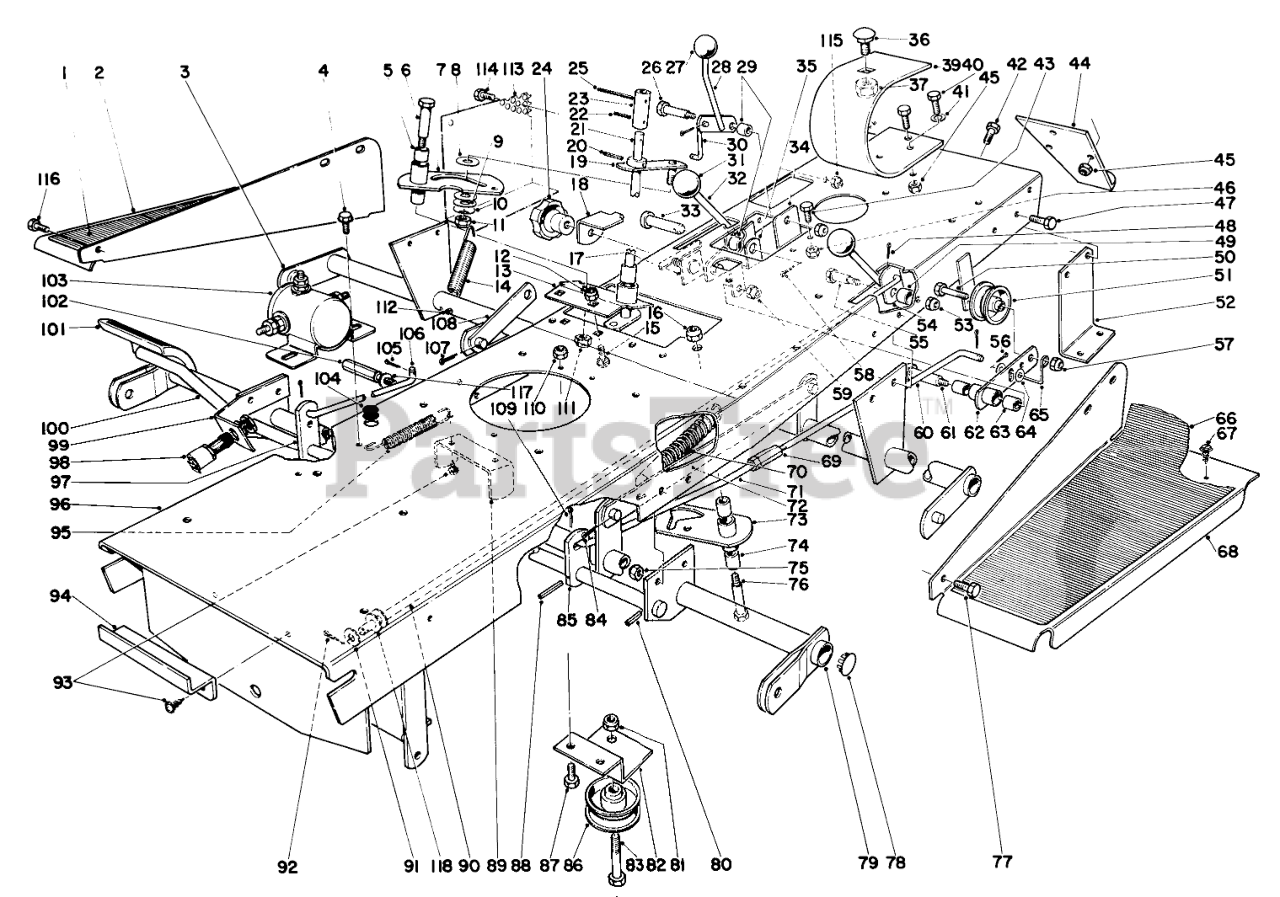

940 CHASSIS ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4128

Pad R. H.

$

$

Not available

2

Toro 7-4033

Footrest R.H.

$

$

Currently unavailable

3

Toro 7-4023

Cross Tube Rear

$

$

Currently unavailable

4

Toro 32140-18

Screw

$

$

Currently unavailable

5

Toro 256-172S

Bushing

$

$

Currently unavailable

6

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

7

Toro 7-4164

Cam Plate

$

$

Currently unavailable

8

Toro 7-4182

Washer

$

$

Currently unavailable

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3290-301S

Spring Washer

$

$

Currently unavailable

11

Toro 32152-7S

Nut

$

$

Currently unavailable

12

32152-1S

Nut

$

$

Not available

13

Toro 7-4166

Bracket-Control

$

$

Currently unavailable

14

Toro 7-4293

Spring Tension Traction Clutch

$

$

Currently unavailable

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 32152-2S

Nut

$

$

Currently unavailable

17

Toro 7-3667

Knob Plate

$

$

Currently unavailable

18

Toro 7-4098

Slide

$

$

Not available

19

Toro 7-4160

Control Crank

$

$

Currently unavailable

20

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

21

Toro 7-4172

Handle Hydro Control

$

$

Currently unavailable

22

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

23

Toro 7-4181

Sleeve Handle

$

$

Currently unavailable

24

Toro 7-3902

Knob

$

$

Not available

25

Toro 32121-82

Roll Pin

$

$

Currently unavailable

26

Toro 7-4071

Shoulder Bolt

$

$

Currently unavailable

27

233-22S

Knob

$

$

Not available

28

Toro 7-4241

Handle Traction

$

$

Currently unavailable

29

Toro 7-4237

Spacer

$

$

Currently unavailable

30

Toro 7-4244

Link Traction Clutch

$

$

Currently unavailable

31

Toro 233-24S

Knob

$

$

Currently unavailable

32

Toro 7-4076

Lever

$

$

Currently unavailable

33

Toro 7-4265

Pin

$

$

Currently unavailable

34

Toro 7-4290

Bracket Traction Clutch

$

$

Currently unavailable

35

Toro 7-4245

Support Height of Cut Lever

$

$

Currently unavailable

36

Toro 3233-1

SCREW-CARR

$8.49

$

Usually ships in 3-6 days

0

37

Toro 32152-3S

Nut

$

$

Currently unavailable

39

Toro 7-4042

Seat Spring

$

$

Currently unavailable

40

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

41

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

42

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

43

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro 7-4032

Hitch

$

$

Currently unavailable

45

Toro 32152-2S

Nut

$

$

Currently unavailable

46

Toro 32152-4S

Nut

$

$

Currently unavailable

47

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

48

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

49

Toro 7-4070

Spacer

$

$

Currently unavailable

50

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 2 left!

0

52

Toro 7-4187

Axle Support L.H.

$

$

Currently unavailable

Toro 7-4470

Axle Support R.H.

Note: Not illustrated

$

$

Currently unavailable

53

Toro 32152-2S

Nut

$

$

Currently unavailable

54

Toro 7-4073

Lever

$

$

Currently unavailable

55

Toro 7-4071

Shoulder Bolt

$

$

Currently unavailable

56

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

57

Toro 32152-2S

Nut

$

$

Currently unavailable

58

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

59

Toro 32152-2S

Nut

$

$

Currently unavailable

60

Toro 7-4275

Brake Rod Rear

$

$

Currently unavailable

61

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

62

Toro 7-4246

Arm Traction Idler Incl. Ref. #63

$

$

Currently unavailable

63

Toro 256-172S

Bushing

$

$

Currently unavailable

64

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

65

Toro 7-4302

Guide Belt Rear

$

$

Currently unavailable

66

Toro 7-4130

Pad Left

$

$

Not available

67

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

68

Toro 7-4034

Footrest

$

$

Currently unavailable

69

Toro 7-4193

Screw Brake Adjusting

$

$

Not available

70

Toro 7-4292

Spring Counterbalance

$

$

Not available

71

Toro 7-4277

Brake Rod Front

$

$

Currently unavailable

72

Toro 7-4052

Lift Equalizer

$

$

Currently unavailable

73

Toro 7-4170

Plate Neutralizer

$

$

Currently unavailable

74

Toro 256-172S

Bushing

$

$

Currently unavailable

75

32152-1S

Nut

$

$

Not available

76

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

77

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

78

Toro 2410-26S

Plug Button

$

$

Currently unavailable

79

Toro 7-4022

Cross Tube Front

$

$

Currently unavailable

80

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

81

Toro 32151-2S

Locknut

$

$

Currently unavailable

82

Toro 7-4236

Bracket Fixed Idler

$

$

Currently unavailable

83

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

84

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

85

Toro 7-4278

Lever Brake

$

$

Currently unavailable

86

Toro 3-3945

Pulley

$

$

Currently unavailable

87

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

88

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

89

Toro 7-4252

Cutter Guide

$

$

Currently unavailable

90

Toro 7-4196

Rod Clutch

$

$

Currently unavailable

91

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

92

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

93

Toro 32140-58

10-32 X 1/2 PHILLIPS

$

$

Not available

94

Toro 7-4384

Spring Clip

$

$

Currently unavailable

95

Toro 7-4291

Spring

$

$

Not available

96

Toro 7-4004

Frame Hydrostatic

$

$

Currently unavailable

97

Toro 7-4183

Pedal Crank Neutralizer

$

$

Currently unavailable

98

Toro 7-4256

Switch

$

$

Not available

99

Toro 7-4235

Bracket Switch

$

$

Currently unavailable

100

Toro 7-4157

Pedal

$

$

Currently unavailable

101

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

102

Toro 7-4590

Brake Stop

$

$

Currently unavailable

103

Toro 218-335S

Solenoid

$

$

Currently unavailable

104

Toro 237-62

GROMMET

$

$

Currently unavailable

105

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

106

Toro 7-4185

Link Neutralizer

$

$

Currently unavailable

107

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

108

Toro 7-4195

Lift Link

$

$

Currently unavailable

109

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

110

32152-1S

Nut

$

$

Not available

111

Toro 32152-2S

Nut

$

$

Currently unavailable

112

Toro 32121-35

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

113

Toro 7-4460

Fan Guide Side

$

$

Currently unavailable

114

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

115

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

116

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

117

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

118

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available
