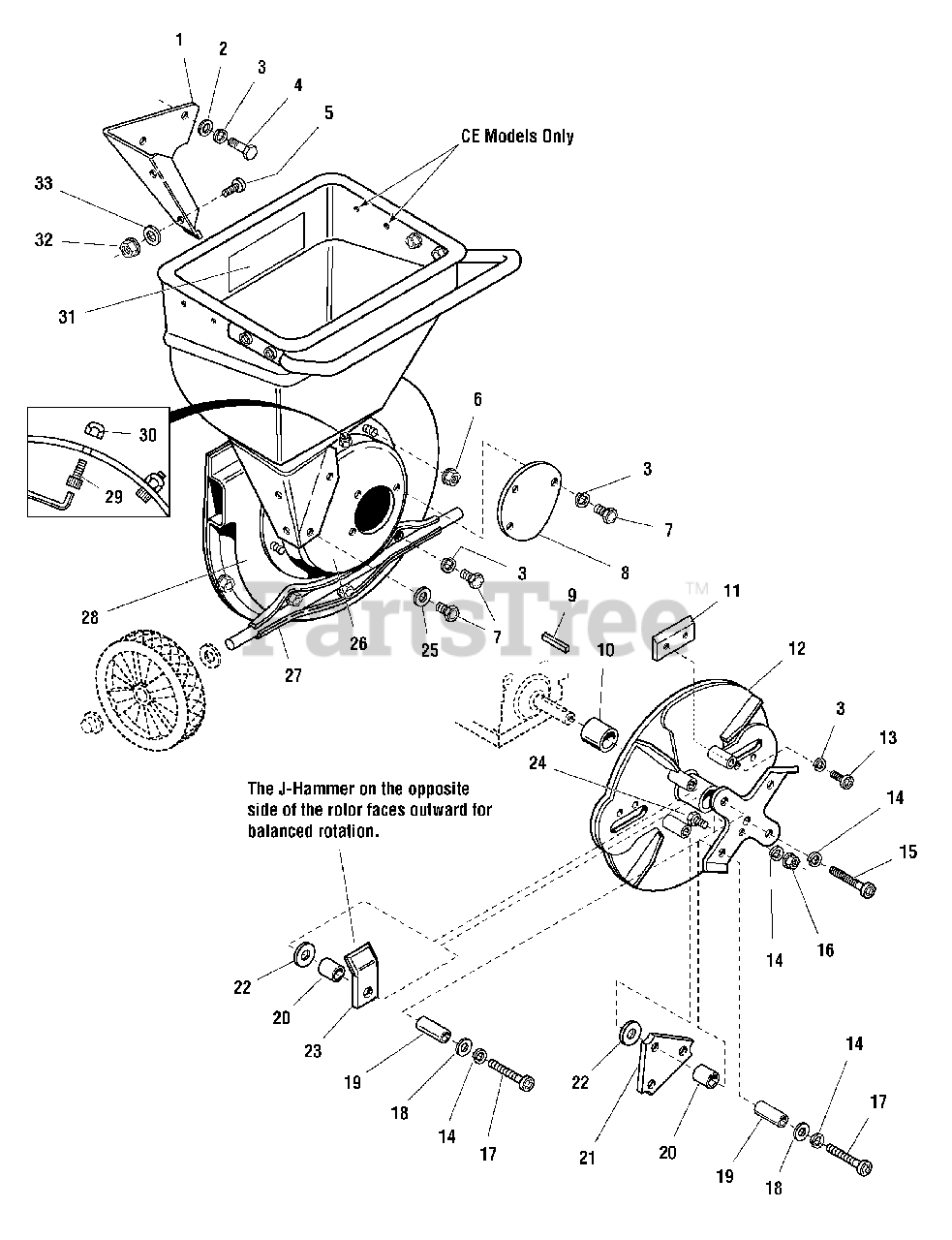

5515 (1694897) - Simplicity Chipper Shredder Housing & Rotor Group - Models 5/14 & 8/14 (4096hrg) Parts Diagram

Chipper Shredder

Housing & Rotor Group - Models 5/14 & 8/14 (4096hrg) Parts Diagram

  • Title

1

Simplicity 1729176SM

HOPPER LINER

$73.99

$

Usually ships in 2-12 days

0

2

Simplicity 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1917356SM

* LOCKWASHER, Split, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

5

Simplicity 1960507SM

CAPSCREW, Phillips Head, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1920787SM

CAPSCREW, Hex Head, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1729174SM

COVER, Rotor Housing

$26.99

$

Usually ships in 2-12 days

0

9

Simplicity 2805100SM

KEY, 1/4 Sq. x 2-1/4

$5.49

$

In Stock, only 1 left!

0

10

Simplicity 1729132SM

SPACER, Rotor (5/14 Only)

Note: (5/14 Only)

$28.99

$

In Stock, only 1 left!

0

10

Simplicity 1713206SM

SPACER, Rotor (8/14 Only)

Note: (8/14 0nly)

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 1729148SM

CHIPPER KNIFE

$136.99

$

Usually ships in 2-12 days

0

12

Simplicity 1714177SM

* ROTOR, 1" Hub

$389.99

$

Usually ships in 2-12 days

0

13

Simplicity 1729215SM

CAPSCREW, Socket Head, 5/16-24 x 5/8

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1916965SM

* LOCKWASHER, Split, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

15

Simplicity 1729235SM

CAPSCREW, Socket Head, 3/8-24 x 2

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1960508SM

* CAPSCREW, Hex, Socket Head, w/Patch, 3/8 16 x 2, Gr. 8

$18.99

$

Usually ships in 2-12 days

0

18

Simplicity 1924940SM

* WASHER, Flat, 7/8 O.D.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1709614SM

* SPACER, Tube

$17.99

$

In Stock, only 3 left!

0

20

Simplicity 1709616SM

* SPACER, 3/4" O.D., 3/4" Long (5/14 Only)

Note: (5/14 Only)

$13.99

$

In Stock, only 2 left!

0

20

Simplicity 1713207SM

* SPACER, 1" O.D., 33/64" Long (8/14 0nly)

Note: (8/14 0nly)

$

$

Not available

21

Simplicity 1729138SM

HAMMER, Triangular

$48.99

$

In Stock, Qty 12

0

22

Simplicity 1676435SM

WASHER, Plain, 1/2 x 1-1/4 x 3/16 (8/14 0nly)

Note: (8/14 0nly)

$8.49

$

Usually ships in 2-12 days

0

23

Simplicity 1729137SM

J HAMMER

$50.99

$

In Stock, Qty 5

0

24

Simplicity 1729236SM

CAPSCREW, Socket Head, 3/8-16 x 5/8

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1729175SM

HOUSING, Rotor

$153.99

$

Usually ships in 2-12 days

0

27

Simplicity 1729164SM

AXLE ASSEMBLY

$165.99

$

Usually ships in 2-12 days

0

28

Simplicity 1729160SM

HOUSING, Fan

$313.99

$

Usually ships in 2-12 days

0

29

Simplicity 1729214SM

CAPSCREW, Socket Head, 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

30

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1731918

DECAL, DANGER - Rotating Cutters/No Hands Below Line

$

$

Not available

31

Simplicity 1731919

DECAL, DANGER - Rotating Cutters/No Hands Below Line

Note: (CE Models Only)

$

$

Not available

32

Simplicity 1930642SM

NUT, Hex Flange Toplock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

33

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0
