55101 - Toro Compact Suburban Lawn Tractor, Electric (SN: 008000001 - 008999999) (1968) MOWER HOUSING ASSEMBLY, 32 Parts Diagram

Compact Suburban Lawn Tractor, Electric

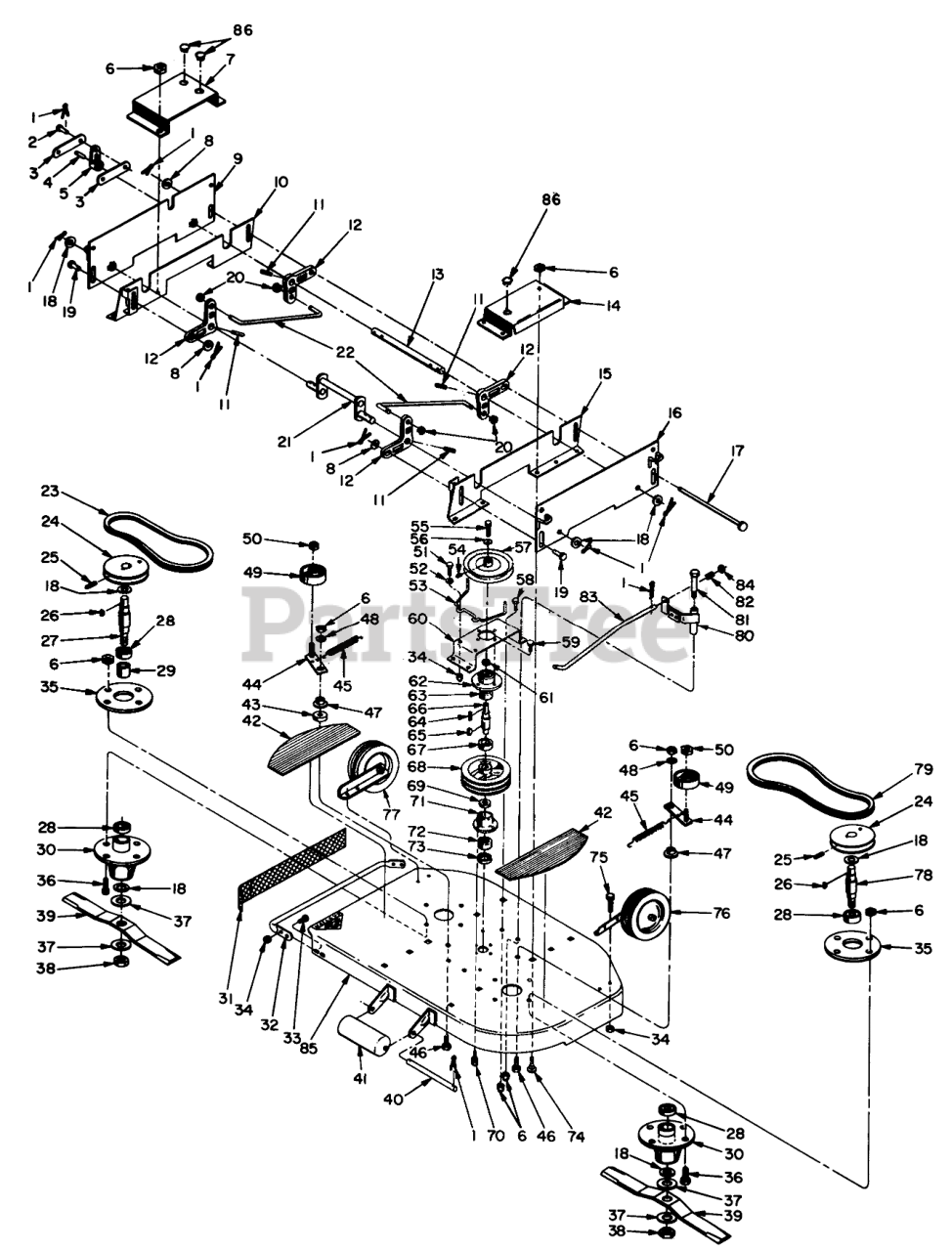

MOWER HOUSING ASSEMBLY, 32 Parts Diagram

  • Title

1

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

2

Toro 7-0511

Pin
(Superseded to 283-2)

$13.99

$

In Stock, only 2 left!

0

3

Toro 7-0956

Lift Link

$

$

Currently unavailable

4

Toro 32121-75(s

Pin

$

$

Currently unavailable

5

Toro 7-0612

Lever

$

$

Currently unavailable

6

Toro 32152-1(s

Nut

$

$

Currently unavailable

7

Toro 7-0943

Pulley Cover, R.H.

$

$

Currently unavailable

8

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

9

Toro 7-0951

Mower Bracket, R.H.

$

$

Currently unavailable

10

Toro 7-0948

Lower Bracket, R.H.

$

$

Currently unavailable

11

Toro 32121-71(s

Roll Pin

$

$

Currently unavailable

12

Toro 7-0265

Bell Crank

$

$

Not available

13

Toro 7-0953

Pivot Shaft, Rear

$

$

Currently unavailable

14

Toro 7-0942

Pulley Cover, L.H.

$

$

Currently unavailable

15

Toro 7-0947

Lower Bracket, L.H.

$

$

Currently unavailable

16

Toro 7-0950

Mower Bracket, L.H.

$

$

Currently unavailable

17

Toro 7-0270

Lift Shaft

$

$

Not available

18

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

19

Toro 7-0271

Lift Pin

$

$

Currently unavailable

20

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

21

Toro 7-0952

Lift Shaft, Front

$

$

Currently unavailable

22

Toro 7-0268

Lift Link

$

$

Currently unavailable

23

Toro 7-0946

Belt, Right Hand

$

$

Currently unavailable

24

Toro 7-0941

Pulley

$

$

Currently unavailable

25

Toro 3242-13(s

Set Screw

$

$

Currently unavailable

26

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

27

Toro 7-0965

Blade Shaft

$

$

Not available

28

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

29

Toro 7-0577

Spacer

$

$

Not available

30

Toro 7-0963

Spindle Housing

$

$

Not available

31

Toro 7-0936

Mulcher

$

$

Currently unavailable

32

Toro 7-0954

Blade Guard

$

$

Currently unavailable

33

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

34

Toro 32152-1(s

Nut

$

$

Currently unavailable

35

Toro 7-0252

Washer

$

$

Not available

36

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 7-0253

WASHER

$

$

Not available

38

32152-6(s

Nut

$

$

Not available

39

Toro 7-0955

Blade

$

$

Currently unavailable

40

Toro 7-0277

ROLLER SHAFT

$

$

Not available

41

Toro 7-0276

Roller

$

$

Currently unavailable

42

Toro 7-0771

Footpad

$

$

Currently unavailable

43

Toro 7-0581

Spacer

$

$

Currently unavailable

44

Toro 7-0945

Idler Bracket

$

$

Currently unavailable

45

Toro 7-0582

IDLER ARM SPRING

$

$

Not available

46

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

47

Toro 7-0083

Bushing

$

$

Currently unavailable

48

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Toro 7-0056

PULLEY IDLER

$

$

Not available

50

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

51

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

52

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

53

Toro 7-0637

Belt Guide

$

$

Currently unavailable

54

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

55

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

56

Toro 7-0553

Washer

$

$

Currently unavailable

57

Toro 7-0627

Pulley

$

$

Currently unavailable

58

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Toro 32140-58(s

Sems Unit

$

$

Currently unavailable

60

Toro 7-0636

Support

$

$

Currently unavailable

61

Toro 7-0126

Washer

$

$

Not available

62

Toro 7-0641

Bearing Housing

$

$

Not available

63

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

64

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, Qty 12

0

65

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

66

Toro 7-0633

BLADE DRIVE SHAFT

$

$

Not available

68

Toro 7-0967

Pulley

$

$

Currently unavailable

69

Toro 7-0126

Washer

$

$

Not available

70

Toro 32140-55(s

Sems Unit

$

$

Currently unavailable

71

Toro 7-0966

Housing

$

$

Currently unavailable

72

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

73

Toro 7-0626

Spacer

$

$

Not available

74

Toro 7-0250

Screw
(Superseded to 26-0430)

$

$

Not available

75

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

76

Toro 7-0985

Wheel Assembly, L.H (Consists of)

$

$

Currently unavailable

Toro 7-0982

a. Bracket

Note: Shown Assembled

$

$

Currently unavailable

Toro 7-0262

Axle

Note: Shown Assembled

$

$

Currently unavailable

Toro 241-87(s

Wheel

Note: Shown Assembled

$

$

Currently unavailable

32152-2(s

Nut

Note: Shown Assembled

$

$

Not available

77

Toro 7-0984

Wheel Assembly, R.H. (Consists of)

$

$

Not available

Toro 7-0978

a. Bracket

Note: Shown Assembled

$

$

Currently unavailable

78

Toro 7-0964

Blade Shaft

$

$

Currently unavailable

79

Toro 7-0824

Belt

$

$

Not available

80

Toro 7-0628

Brake Band (Consists of)

$

$

Not available

Toro 7-0642

a. Bracket

$

$

Currently unavailable

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

Toro 3290-287(s

Rivet

$

$

Currently unavailable

81

Toro 7-0647

Shoulder Bolt

$

$

Currently unavailable

82

Toro 7-0514

Spring

$

$

Not available

83

Toro 7-0986

Brake Rod

$

$

Currently unavailable

84

Toro 7-0152

Washer
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

85

Toro 7-0937

Mower Housing

$

$

Currently unavailable

86

Toro 2410-23(s

Button Plug

$

$

Currently unavailable
