551 M (1692320) - Simplicity 20" Snow Thrower, 5hp (SN: 10000 & Below) Frame & Handles (S/N 10,000/20,000 and Below) Parts Diagram

20" Snow Thrower, 5hp

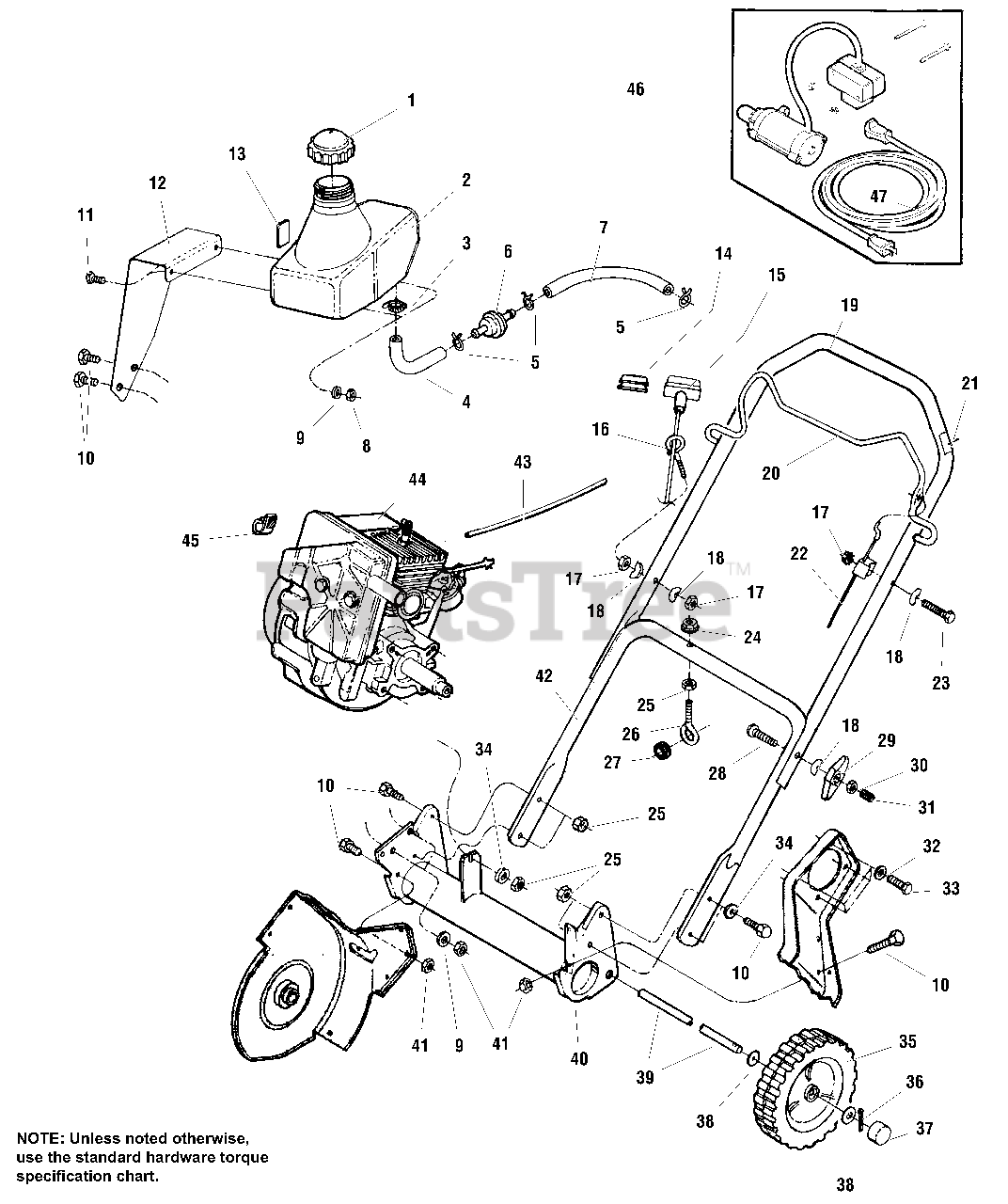

Frame & Handles (S/N 10,000/20,000 and Below) Parts Diagram

  • Title

1

Simplicity 1714606SM

CAP, Tank

$33.99

$

Usually ships in 2-12 days

0

2

Simplicity 1714604SM

TANK, Fuel

$165.99

$

Usually ships in 2-12 days

0

3

Simplicity 960265

CLAMP, Worm drive

$

$

Not available

4

Simplicity 1714607

HOSE, Fuel, 3-1/4" Long

$

$

Not available

5

Simplicity 2860112SM

CLAMP, Wire form

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 2173206SM

FILTER, Gas
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 1714608SM

HOSE, Fuel, 8" Long
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 1920397SM

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1921319SM

WASHER, Flat 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1921332SM

BOLT, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

11

Simplicity 1923341SM

BOLT, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

12

Simplicity 1714587

BRACKET, Fuel Tank

$

$

Not available

13

Simplicity 1714652

PAD, Rubber

$

$

Not available

14

Simplicity 1714586

INSERT, Metal Handle

$

$

Not available

15

Simplicity 1714575

HANDLE, Starter Rope

$

$

Not available

16

Simplicity 1714501

GUIDE, Rope

$

$

Not available

17

Simplicity 2828372SM

NUT, Keps, 1/4 - 20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

18

Simplicity 1717312SM

WASHER, Curved, 5/16

$

$

Not available

19

Simplicity 1686723SM

HANDLE, Upper

$185.99

$

Usually ships in 2-12 days

0

20

Simplicity 1720525SM

BAIL, Auger Control

$

$

Not available

21

Simplicity 1716672SM

DECAL, Auger Control

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 1720323SM

CABLE, Auger Control

$33.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921963SM

BOLT, Hex 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1931211SM

NUT, Flange Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1714503

EYEBOLT, Chute Rotater

$

$

Not available

27

Simplicity 1714569

GROMMET, Eyebolt

$

$

Not available

28

Simplicity 1665221

BOLT, Curved Head, 5/16-18 x 2-1/4

$

$

Not available

29

Simplicity 1716632SM

KNOB, Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 1917372SM

NUT, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1677873

CAP, Plastic Bolt

$

$

Not available

32

Simplicity 1917356SM

WASHER, Lock 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 921980

BOLT, Hex, 5/16-24 x 5/8

$

$

Not available

34

Simplicity 1919326SM

WASHER, Flat, 5/16 (Left side only)

$4.49

$

In Stock, Qty 8

0

35

Simplicity 1686724SM

WHEEL & TIRE
(Superseded to 760714MA)

$

$

Not available

36

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1714589

CAP, Hub

$

$

Not available

38

Simplicity 1918266SM

WASHER, Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

39

Simplicity 1686725SM

SHAFT, Axle

$14.99

$

Usually ships in 2-12 days

0

40

Simplicity 1714593

FRAME, Tube

$

$

Not available

41

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1714582

HANDLE, Lower

$

$

Not available

43

Simplicity 1714604SM

HOSE, Fuel Primer, 8" Long

$165.99

$

Usually ships in 2-12 days

0

44

ENGINE, Two Cycle, 5 HP

$

$

Not available

45

Simplicity 1714614

CLIP, Retainer

$

$

Not available

46

KIT, Electric Start

$

$

Not available

47

CORD, Extension 10'

$

$

Not available
